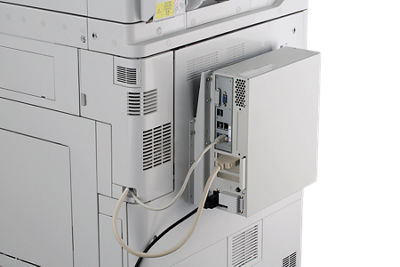

imagePASS-P2

FIERY DRIVEN™ ENGINES

  • Canon imageRUNNER ADVANCE DX C5760i/ C5750i/C5740i/C5735i
  • Supports engine finishing options

HARDWARE AND PLATFORM

  • Intel® Pentium® processor G4400, 3.3 GHz
  • 4 GB RAM
  • 500 GB SATA HDD
  • Linux operating system
  • Fiery Installer Builder
  • Fiery FS350 software

FILE FORMAT SUPPORT

  • Adobe® PostScript® Levels 1, 2, 3
  • Adobe PDF
  • Encapsulated PostScript® (EPS)
  • MS Office document formats: DOC, DOCX, XLS, XLSX, PPT, PPTX, PPS, PPSX, and PUB (via Hot Folders)

FIERY COLOR AND IMAGING TECHNOLOGY

  • Fiery ColorWise® color management technology
  • Fiery Calibrator
  • PANTONE® approved
  • Image smoothing
  • Fiery Spot-On
  • Image Enhance™ (via optional Fiery JobFlow™ Base)
  • Fiery Image Enhance Visual Editor (via optional Productivity Package)
  • Auto trapping

PRODUCTIVITY AND WORKFLOW

  • Fiery Command WorkStation®
  • Fiery drivers for Windows and Mac® users
  • Fiery WebTools™
  • Booklet-Maker
  • Fiery VUE
  • Fiery Hot Folders/Virtual Printers (via optional Productivity Package)
  • Fiery JobFlow™ Base (via optional Productivity Package)
  • Direct mobile printing
  • Fiery Go (Android® and iOS)

DEVICE MANAGEMENT AND ANALYTICS

  • EFI IQ
  • EFI Insight
  • EFI Go
  • EFI Manage (Optional)

PERFORMANCE

  • SmartRIP
  • Spool-RIP-print simultaneously
  • Scan-RIP-print simultaneously

VARIABLE DATA PRINTING

  • Fiery FreeForm
  • Record and set-level finishing support
  • VDP record range printing
  • Optimized PostScript® and PDF
  • Define record length
  • VDP raster preview
  • VDP Resource Manager

JDF/JMF SUPPORT

  • JDF v1.6 Integrated Digital Printing (IDP) ICS certified (via optional Productivity Package)
  • EFI MIS and Web-to-Print integration ready
  • Prepress workflow integration (Agfa® :Apogee, Kodak® PRINERGY, Heidelberg® Prinect)

ADOBE INTERPRETER SUPPORT

  • CPSI version 3020
OPTIONAL FIERY SOFTWARE AND HARDWARE

  • Fiery JobFlow™
  • Fiery Color Profiler Suite
  • Fiery Productivity Package
    • Configurable Auto Trapping
    • Fiery ImageViewer
    • Image Enhance Visual Editor
    • Paper Simulation (with white point editing)
    • Control Bar
    • PostFlight
    • Graphic Arts Filters for Hot Folders
    • Rush Print - Schedule Printing
    • Print and Process Next
    • Fiery JDF
    • Fiery JobFlow™ Base
  • Fiery Impose
  • Fiery Compose
  • Fiery Hot Folders and Virtual Printers

SECURITY

  • Secure Erase
  • Network protection includes: - 802.1x support, IP filtering, port blocking (filtering), SSL support (TLS), certificate management, self-signed certification
  • Secure Printing

NETWORKING / CONNECTIVITY

  • TCP/IP, AppleTalk, Bonjour support, SNMP, Port 9100, IPP, FTP, SMB, WSD, point and print, print via email (PS/PDF), IPv6 support

EMC

  • FCC and ICES (Canada and US)
  • RCM (Australia and New Zealand)
  • CE Mark (EU)
  • VCCI (Japan)
  • EAC
  • CCC (China)

SAFETY

  • TÜV/CU Mark (Canada and US)
  • TÜV/GS Mark (EU)
  • CE Mark (EU)
  • CB Scheme
  • EAC
  • CCC (China)

POWER SUPPLY AND CONSUMPTION

  • Auto-switching: 100–240 V AC
  • 50/60 Hz, 3 A @100 V AC
  • 1.5 A @240 V AC
  • Maximum/typical power usage: 150 W/100 W
