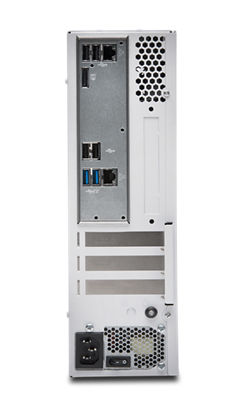

imagePASS-R1

FIERY DRIVEN ENGINES

  • Canon imageRUNNER ADVANCE DX C5870i/C5860i/ C5850i/C5840i
  • Supports engine finishing options

HARDWARE AND PLATFORM

  • Intel® Pentium® Processor G4400, 3.3 GHz
  • 4 GB RAM
  • 500 GB SATA HDD
  • Linux operating system
  • Fiery Installer Builder
  • Fiery FS400 software

FILE FORMAT SUPPORT

  • Adobe® PostScript® Levels 1, 2, 3
  • Adobe PDF
  • Encapsulated PostScript® (EPS)
  • MS Office document formats: DOC, DOCX, XLS, XLSX, PPT, PPTX, PPS, PPSX, and PUB (via optional Hot Folders)

FIERY COLOR AND IMAGING TECHNOLOGY

  • Fiery ColorWise® color management technology
  • Fiery Edge™ color profiles
  • Fiery Calibrator
  • PANTONE® Color Enabled
  • Image smoothing
  • Fiery Spot-On™
  • Fiery Image Enhance Visual Editor (via optional Fiery ColorRight Package)
  • Auto trapping

PRODUCTIVITY AND WORKFLOW

  • Fiery Command WorkStation®
  • Fiery drivers for Windows and Mac® users
  • Fiery WebTools™
  • Booklet-Maker
  • Fiery VUE
  • Direct mobile printing
  • Fiery Go (Android® and iOS)

DEVICE MANAGEMENT AND ANALYTICS

  • EFI IQ
  • EFI Insight
  • EFI Go
  • EFI Manage (Optional)

PERFORMANCE

  • SmartRIP
  • Spool-RIP-print simultaneously
  • Scan-RIP-print simultaneously

VARIABLE DATA PRINTING

  • Fiery FreeForm™ Create
  • Fiery FreeForm Plus
  • VDP record range printing
  • Optimized PostScript® and PDF
  • Define record length
  • Record and set level finishing support
  • VDP raster preview

JDF/JMF SUPPORT

  • JDF v1.6 IDP-ICS certified (via Fiery Automation Package)
  • EFI MIS and Web-to-Print integration ready
  • Prepress workflow integration (Agfa® :Apogee, Kodak®PRINERGY, Heidelberg® Prinect)

ADOBE INTERPRETER SUPPORT

  • CPSI version 3020

OPTIONAL FIERY SOFTWARE AND HARDWARE

  • Fiery Automation Package- Fiery Hot Folders/Virtual Printers, Hot Folder Filters, Rush Print, Schedule Print, Print/Process Next, Fiery Preflight, Fiery JobFlow™ Base, Fiery JDF
  • Fiery ColorRight Package- Fiery Spot Pro, Fiery ImageViewer, Fiery Image Enhance Visual Editor, Fiery Postflight, Control Bar
  • Fiery Hot Folders/Virtual Printers
  • Fiery Adobe PDF Print Engine
  • Fiery Impose
  • Fiery Compose
  • Fiery JobMaster™
  • Fiery JobFlow (requires Fiery Automation Package)
  • Fiery Color Profiler Suite

SECURITY

  • Secure erase, User data encryption, Security Profiles, Port-based network access controls, 802.1x advanced authentication methods, Port blocking
  • USB security prevents connecting external storage devices
  • Closed architecture prevents installation of unauthorized programs that could potentially expose the system to vulnerabilities
  • Digitally signed software updates
  • PostScript security

NETWORKING / CONNECTIVITY

  • TCP/IP, AppleTalk, Bonjour support, SNMP, Port 9100, IPP, FTP, SMB, WSD, point and print, print via email (PS/PDF), IPv6 support

EMC

  • FCC and ICES (Canada and US)
  • RCM (Australia and New Zealand)
  • CE Mark (EU)
  • VCCI (Japan)
  • EAC
  • CCC (China)

SAFETY

  • TÜV/CU Mark (Canada and US)
  • TÜV/GS Mark (EU)
  • CE Mark (EU)
  • CB Scheme
  • EAC
  • CCC (China)

POWER SUPPLY AND CONSUMPTION

  • Auto-switching: 100–240 V AC
  • 50/60 Hz, 3 A @100 V AC
  • 1.5 A @240 V AC
  • Maximum/typical power usage: 150 W/100 W
