Specifications


Hardware

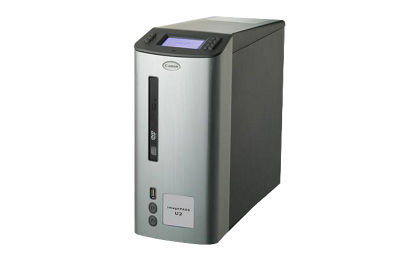

imagePASS-U2 Controller

Type: External

Supported Devices: imageRUNNER ADVANCE 8205/8295/8285/6275/6265/6255

Processor: Intel Pentium Processor E5300 2.6GHz

System: Fiery System 10

PDL Support: Adobe PS 3, PCL 5e/6

Print: 1200 x 1200 dpi

Resolution: 2400 dpi equivalent x 600 dpi

Memory: 2GB (Standard/Maximum)

HDD: 250GB

Interfaces (to LAN): 10Base-T/100Base-TX/1000Base-T

Dimensions (H x W x D): 12.5" x 5.5" x 15.5" (317.5mm x 139.7mm x 393.7mm)

Print Driver Supported OS

Adobe PS 3:

  • Windows (Windows 2000/XP/Server 2003/Server 2008/Windows Vista®/Windows 7)
  • Macintosh® (OS X 10.3.9 or later)

PCL 5e/6:

  • Windows (Windows 2000/XP/Server 2003/Windows Vista/Windows 7)

Image Quality
  • PDF/X Support
  • Speed Priority
  • Image Priority

Workflow and Print Management Features
  • Command WorkStation 5*
  • Native JDF Support
  • Mixed Media and Booklet-Maker V4
  • Paper Catalog
  • Compatibility with PDF 1.4, 1.5, 1.6, 1.7, PDF/X and PDF/VT-1
  • Hot Folders and Virtual Printers
  • Insert Tabs
  • Advanced Job Management features include Rush Printing, Schedule Print, Suspend on Mismatch, Job Reorder, Proof Print, Set Page Device Visual Mapping, and Quick Doc Merge

Command WorkStation 5 Supported Files
  • Adobe Acrobat®
  • PostScript
  • Microsoft® Office Documents

Networking/Connectivity
  • Simultaneous Auto-switching Protocols
  • EtherTalk II
  • TCP/IP
  • Novell® IPX Print
    - Exchange, Novell, Domino LDAPv3/RFC2251
    - E-mail Address Access and Authentication
    - User Password Validation
  • Certificate Management
    - SSL/TLS
    - X509 Standard
  • IPv6 Support
  • IPsec Support
  • Auto-sensing Ports
  • RJ-45 for on-board 10/100/1000Base-T
  • 10/100Base-T, Automatic IP configuration
  • SNMP Printing Support
    Mac Bonjour, AppleTalk®, SMB (peer to peer)

    Variable Data Printing

  • Fiery FreeForm v1 enhanced and v2.1
  • PPML
  • VPS Compatibility
  • PDF/VT-1
  • Security
    • Password Access in CWS
    • SNMPv3 System Updates
    • Secure Erase (Standard)
    • 802.1x Support
    • IP Filtering
    • User Authentication
    • MAC Filtering
    • IPsec Support
    • Port Blocking
    • SSL/TLS Support
    • SNTP

    Utilities
    • imagePASS-U2 Driver
    • Command WorkStation 5*
    • WebTools
    • Hot Folders and Virtual Printers
    • Remote Scan 5.3

    Power Supply and Consumption
    Auto-switching power supply with active PFC (Power Factor Connection)

    Safety/EMC
    • CE Mark, CSA, TUV/GS, UL, CB Scheme, EU RoHS
    • EMC
      - EN55022 Part B (CE marked)
      - FCC Class B
      - VCCI II

    Options
    • SeeQuence Suite
      - Impose
      - Compose
    • Removable Hard Disk Drive
    • Integrated Interface and Stand (19" display, keyboard, mouse, and furniture stand)
    • Fiery ImageViewer

    * Available with optional free download at www.efi.com/CWS5.
