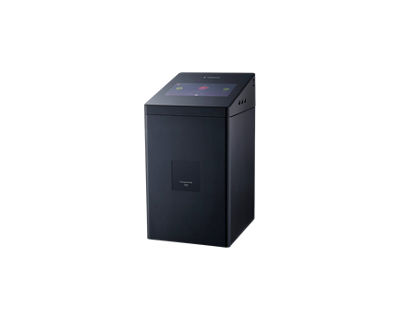

imagePASS-Y3

FIERY DRIVEN™ ENGINES

  • Canon imageRUNNER ADVANCE DX 8705i/8795i/ 8786i/6780i/6765i/6755i
  • Support for all engine finishing options

HARDWARE AND PLATFORM

  • Intel® Pentium® Processor G4400, 3.3 GHz
  • 8 GB RAM
  • 500 GB SATA HDD
  • • USB 3.0: two (2) rear ports and three (3) front on Fiery QuickTouch™ USB 2.0: four (4) rear ports.
  • Windows® 10 IoT Enterprise 2019 LTSC
  • Fiery Installer Builder
  • Fiery FS350 Pro

FILE FORMAT SUPPORT

  • Adobe® PostScript® Levels 1, 2, 3
  • Enhanced PCL® 6
  • Adobe PDF
  • • PDF/X-1a, 3, and 4
  • Encapsulated PostScript (EPS)
  • MS Office document formats: doc, xls, ppt, pub (via Hot Folders)

FIERY IMAGING TECHNOLOGY

  • Fiery ImageViewer for black and white (optional)
  • Black custom screening
  • Soft proof

PRODUCTIVITY AND WORKFLOW

  • Fiery Command WorkStation®
  • Fiery drivers for Windows and Mac® users
  • Fiery WebToolsTM
  • Booklet-Maker
  • Pad printing
  • Fiery Hot Folders and Virtual Printers
  • Copy numbering
  • Direct mobile printing

DEVICE MANAGEMENT AND ANALYTICS

  • EFI IQ
  • EFI Insight
  • EFI Go
  • EFI Manage (Optional)

PERFORMANCE

  • SmartRIP
  • Spool-RIP-print simultaneously

VARIABLE DATA PRINTING

  • Supported file formats include: Fiery FreeForm, PPML v3.0, PDF/VT 1 and 2, Creo VPS compatible
  • Record and set level finishing support
  • VDP record range printing
  • Define record length
  • VDP raster preview
  • VDP Resource Manager

JDF/JMF SUPPORT

  • JDF v1.6 Integrated Digital Printing (IDP) ICS certified
  • EFI MIS and Web-to-Print integration ready
  • Prepress workflow integration (Agfa®:Apogee, Kodak® PRINERGY, Heidelberg® Prinect)

ADOBE INTERPRETER SUPPORT

  • CPSI version 3020
  • Adobe PDF Print Engine 4*

OPTIONAL FIERY SOFTWARE AND HARDWARE

  • Fiery Impose - Compose
  • Fiery JobMaster - Impose
  • X-Rite Eye-One spectrophotometer
  • Fiery Impose
  • Fiery Compose
  • Fiery JobMasterTM
  • Fiery ImageViewer for Black and White
  • Fiery NX One Station Fiery stand, 22” display, keyboard, mouse
  • Removable hard disk drive

SECURITY

  • Secure Erase
  • Network protection includes: 802.1x support, IP filtering, port blocking (filtering), SSL support (IPP/LDAP/HTTP/POP/SMTP), certificate management, selfsigned certification
  • LDAP support
  • Secure Printing

NETWORKING / CONNECTIVITY

  • TCP/IP, AppleTalk, Bonjour support, SNMP, Port 9100, IPP, FTP, SMB, WSD, point and print, print via email (PS/PDF), IPv6 support

EMC

  • FCC (Canada and US)
  • C-TICK (Australia and New Zealand)
  • CE Mark (EU)
  • VCCI (Japan)
  • BSMI (Taiwan)
  • CCC (China)

SAFETY

  • TÜV/CU Mark (Canada and US)
  • TÜV/GS Mark (EU)
  • CE Mark (EU)
  • CB Scheme
  • CCC (China)

POWER SUPPLY AND CONSUMPTION

  • Auto-switching: 100–240 VAC
  • 50/60 Hz, 6 Amps @100 VAC, 3 Amps @240 VAC
  • Maximum/typical power usage: 150 W/100 W

DIMENSIONS (W x D x H)

  • 9.75” (H) x 8.0” (W) x 15.1” (D)
  • 247.65 mm (H) x 203.2 mm (W) x 383.54 mm (D)

FOOTNOTES

* Updated with enhancements and service releases on an ongoing basis.
