Canon Support for imagePROGRAF iPF610 | Canon U.S.A., Inc.

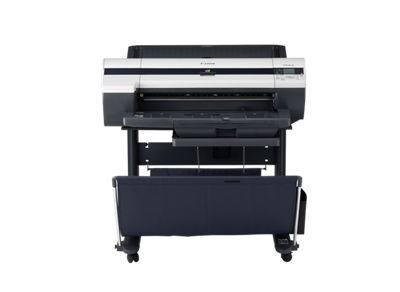

imagePROGRAF iPF610
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer Type | 5-Color 24-inch Printer |
Number of Nozzles | Total: 30,720 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
Nozzle Pitch | 1,200 dpi |
Nozzle Recovery System | Non-firing nozzle detection and compensation |
Print Resolution (Up to) | 2,400 x 1,200 dpi (Max) |
OS Compatibility | Windows®(2000/XP/Vista 32/64bit) MAC(OS9,OS10)1 |
Standard Interfaces | USB 2.0 High-Speed 10/100 Base-T/TX Optional: IEEE 1394 (Firewire®) |
Ink Droplet Size | 4 picoliter |
Ink Capacity | 130ml per color2 |
Ink Droplet Size | Dye/Pigment Reactive Ink |
Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black (two channels) |
Buffer Ram | 256 MB |
Hard Drive | N/A |
Media Width | Cut Sheet and Roll: 8" - 24" Cassette: 8" - 17" |
Media Thickness | Top Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil) Front Loading Manual Feed: 0.5 - 1.5mm (19.6 - 59.0mil) Roll: 0.08 - 0.8mm (2.8 - 31.4mil) Cassette: 0.08 - 0.3mm (3.2 - 11.8mil) |
Maximum Roll Print Length | 59 Feet (18 meters)3 |
Maximum Media Roll Diameter | 5.9" (150mm) |
Borderless Printing Width | 10" (254 mm), B4 (257 mm), A3+ (329 mm), 14" (356 mm), 16" (407 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm) |
Paper Feed Method | Roll Feed: One Roll, front output Top Loading Manual Feed: One sheet, front output Front Loading Manual Feed: One sheet, front output Cassette: Up to 250 Sheets (Letter, Plain Paper), front output |
Languages | Language: GARO (Canon Proprietary) |
Noise Level Approx | Operation: 52 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: 6.6 Bels |
Physical Dimensions | 38.9" (H) x 39.3" (W) x 39" (D) |
Weight | Approximately 149.9 lbs with stand |
Power Source | AC-100-120V (50-60Hz) |
Power Consumption | Maximum: 100W or less Standby 6W or less Power Off: 1W or less (Compliant with Executive Order) |
Operating Environment | Temperature: 59°-86° F (15° - 30° C) Relative Humidity: 10-80% (No Condensation) |
User-replaceable items | Print Head (PF-03), Maintenance Cartridge (MC-16) |
Software Included | Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD4 |
imagePROGRAF LARGE FORMAT PRINTER LIMITED WARRANTY including Printhead
CANON imagePROGRAF LARGE FORMAT PRINTER LIMITED WARRANTY. The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon") with respect to the Canon imagePROGRAF Large Format Printer packaged with this limited warranty and Canon branded accessories and options designed for use with the imagePROGRAF Large Format Printer (collectively, the "Product"). Canon warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year after delivery to the original purchaser ("Purchaser") by Canon or its authorized dealer. During the relevant warranty period, Canon shall, in its sole discretion and without charge, repair or replace any defective part with a new or comparable rebuilt part or replace the Product with a new or rebuilt Product. Warranty replacement shall not extend the warranty period of the defective Product. This warranty shall not extend to the Canon Printhead for the Product, for which a separate warranty is given. Nor shall this warranty cover other consumable parts or consumables, such as paper and ink cartridges, as to which there shall be no warranty or replacement.
You must call the number below for remote diagnostic assistance for operation and support of the Product:
Your local Service Provider; or call
1-800-423-2366, Monday through Friday from 8:00 a.m. to 8:00 p.m. ET
You must cooperate with Canon in remotely diagnosing the Products malfunction. Canon may attempt to correct the malfunction remotely, with your assistance. If Canon cannot fix your Product's malfunction through remote diagnostics, Canon shall schedule an on-site service call by an independent authorized Canon Service Provider (the "Service Provider") or Canon will send you a replacement part for any defective user replaceable item. You will be charged at the then-current service call rates of Canon or the Service Provider if the defects in the Product are not covered by this limited warranty, or if the applicable warranty period for the Product has expired or warranty coverage has not been sufficiently established by appropriate documentation.
This warranty shall only apply if this Product is used in conjunction with compatible computers, peripheral equipment and software, as to which items Canon shall have no responsibility. NON-CANON BRAND COMPUTERS, PERIPHERAL EQUIPMENT AND SOFTWARE WHICH MAY BE DISTRIBUTED WITH THE PRODUCT ARE SOLD AS IS, WITHOUT WARRANTY OF ANY KIND BY CANON, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The sole warranty, if any, with respect to such non-Canon brand item is given by the manufacturer or producer thereof.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, RELATING TO THE USE OR PERFORMANCE OF THE PRODUCT. NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE PRODUCT SHALL BIND CANON OR ANY SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRODUCT.
THIS WARRANTY SHALL BE VOID AND OF NO FORCE AND EFFECT IF THE PRODUCT IS DAMAGED AS A RESULT OF (A) ABUSE, NEGLECT, MISHANDLING, ALTERATION, ELECTRIC CURRENT FLUCTUATION OR ACCIDENT, (B) IMPROPER USE, INCLUDING FAILURE TO FOLLOW OPERATING OR MAINTENANCE INSTRUCTIONS IN, OR ENVIRONMENTAL CONDITIONS PRESCRIBED IN, CANON'S USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT, (C) REPAIR BY OTHER THAN SERVICE REPRESENTATIVES QUALIFIED BY CANON WHO ARE ACTING IN ACCORDANCE WITH CANON'S SERVICE BULLETINS (D) USE OF SUPPLIES OR PARTS (OTHER THAN THOSE DISTRIBUTED BY CANON) WHICH DAMAGE THE PRODUCT OR CAUSE ABNORMALLY FREQUENT SERVICE CALLS OR SERVICE PROBLEMS OR (E) USE OF THE PRODUCT WITH NON-COMPATIBLE COMPUTERS, PERIPHERAL EQUIPMENT OR SOFTWARE, INCLUDING THE USE OF THE PRODUCT IN ANY SYSTEM CONFIGURATION NOT RECOMMENDED IN ANY USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT. NOR DOES THIS WARRANTY EXTEND TO ANY PRODUCT ON WHICH THE ORIGINAL IDENTIFICATION MARKS OR SERIAL NUMBERS HAVE BEEN DEFACED, REMOVED, OR ALTERED.
ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE DISKETTES OR CD-ROM'S ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD "AS IS" AND WITHOUT WARRANTY BY CANON. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.
NEITHER CANON NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE T0 REALIZE SAVINGS OR OTHER BENEFITS, LOSS OR CORRUPTION OF DATA INCLUDING, WITHOUT LIMITATION, DATA STORED ON THE PRODUCT'S HARD DISK DRIVE, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS, ARISING OUT OF THE POSSESSION, USE, MISUSE OR INABILITY TO USE THE PRODUCT SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE PURCHASER, AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.
CONDITIONS OF WARRANTY
Defective parts must be returned to Canon or a Service Provider with all necessary documentation and will become the property of Canon.
THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. ONLY.
CANON imagePROGRAF PRINTHEAD LIMITED WARRANTY
Canon U.S.A., Inc. and Canon Canada, Inc. (collectively "Canon") warrant the imagePROGRAF Printhead packaged with this Limited Warranty (the "Printhead") to be free from defects in workmanship and materials under normal use and service, for a period of one-year after delivery to the original purchaser of the Printhead, or for the period that the "Head Lot Number" of the Printhead, as displayed in the "Status Display" of the Status Monitor utility accompanying the Product in which the Printhead is incorporated, has a last character of "a", whichever period expires first. During the relevant warranty period, Canon shall, in its sole discretion and without charge, repair or replace any defective Printhead with a new or comparable rebuilt Printhead. Warranty replacement shall not extend the warranty period of the defective Printhead. Canon U.S.A., Inc., will only provide warranty coverage for those Printheads purchased in the United States. Canon Canada, Inc. will only provide warranty coverage to those Printheads purchased in Canada. Under no circumstances will warranty coverage for Printheads purchased in the United States be provided in Canada, and under no circumstances will warranty coverage for those Printheads purchased in Canada be provided in the United States.
To arrange for warranty services by Canon please call:
If purchased and used in the United States: | If purchased and used in Canada: |
1-800-423-2366, Monday through Friday from 8:00 a.m. to 8:00 p.m., E.T. | 1-800-OK-CANON, Monday through Friday from 9:00 a.m. to 8:00 p.m., E.T. |
If the Printhead malfunction is not covered by this Limited Warranty or the applicable warranty period has expired or has not been sufficiently established by appropriate documentation, you will be required to replace the Printhead at your expense.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES AND CONDITIONS REGARDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, RELATING TO THE USE OR PERFORMANCE OF THE PRINTHEAD. NO OTHER EXPRESS WARRANTY, CONDITION OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE PRINTHEAD SHALL BIND CANON OR ANY SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRINTHEAD.
This warranty shall be void and of no force and effect if the Printhead is damaged as a result of (a) abuse, neglect, mishandling, improper cleaning, unauthorized repairs or alteration of the Printhead, or a Product in which the Printhead is incorporated, electric current fluctuation, or accident, (b) improper use, including failure to follow operating or maintenance instructions in, or environmental conditions prescribed in, Canon's operator's manual or other documentation, (c) installation or repair by other than service representatives qualified by Canon who are acting in accordance with Canon's service bulletins, or (d) use of supplies or parts (other than those distributed by Canon) which damage the Printhead or cause abnormally frequent service calls or service problems. Nor does this warranty extend to any Printhead on which the original identification marks or serial numbers have been defaced, removed, or altered.
NEITHER CANON NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRINTHEAD REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRINTHEAD CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS ARISING OUT OF THE POSSESSION, USE, MISUSE, OR INABILITY TO USE THE PRINTHEAD SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE PRINTHEAD AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.
CONDITIONS OF WARRANTY
At Canon's discretion, defective parts must be returned with all necessary documentation and will become the property of Canon.
THIS WARRANTY APPLIES TO PRINTHEADS PURCHASED AND USED ONLY IN THE ORIGINAL COUNTRY OF PURCHASE: U.S.A. AND CANADA, AS APPLICABLE.
Subject to the first paragraph of this Limited Warranty, any character other than "a" displayed as the last character of the Head Lot Number signifies that warranty coverage has lapsed.
