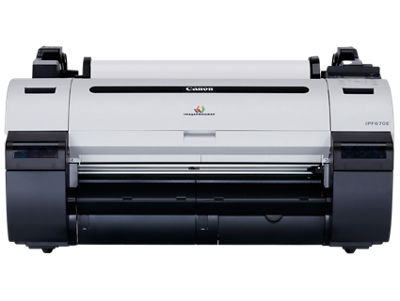

imagePROGRAF iPF670E
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
imagePROGRAF Print Utility Guide
File Name
iPF670 / iPF670E Basic Guide Ver.1.00
File Name
iPF670/iPF770 Setup Guide Ver.1.00
File Name
iPF670 / iPF670E User's Guide Ver.1.10
File Name
Guide for Direct Print & Share (Windows)
File Name
PosterArtist Guide
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer Type | 5-Color 24-inch Printer |
Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
Nozzle Pitch | 1,200 dpi Non-firing nozzle detection and compensation |
Print Resolution (Up to) | 2,400 x 1,200 dpi (Max) |
OS Compatibility | Windows® (Vista/7/8.1/10) Macintosh® (OSX 10.7.5-10.11X)A |
Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
Ink Droplet Size | Maximum 4 picoliter |
Ink Capacity | 90ml per tank |
Ink Type | Dye/Pigment Reactive Ink |
Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
Buffer Ram | 256MB |
Media Width | Roll Feed 10" - 24" (254mm - 610mm) |
Media Thickness | 0.07-0.8mm (2.8-31.4mil) |
Maximum Roll Print Length | 59' (18 meters) B |
Maximum Media Roll Diameter | 5.9" (150mm) |
Borderless Printing Width | 10", B4, A3, 14", A2, 17", B2 (20.28/515 mm), A1 (23.38/594mm), 24" |
Paper Feed Method | Roll Feed: One Roll, Top-loading, Front output |
Languages | GARO (Canon Proprietary) |
Noise Level Approx | Operation: 47 dB (A) Standby:35 dB (A) or less Acoustic Power: Approx. 6.4 Bels |
Physical Dimensions | 42" (H) x 39" (W) x 34" (D) (When basket is open) 20" (H) x 39" (W) x 27" (D) (Without stand) |
Weight | Approximately 92 lb. without stand Approximately 113 lb. with optional stand |
Power Source | AC-100-240V (50-60Hz) |
Power Consumption | Maximum: 140W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order) |
Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
User-replaceable items | Print Head: PF-04 Maintenance Cartridge: MC-10 Ink Tanks: PFI-007 (90ml: C, M, Y, BK, MBK, MBK) |
Software Available | Canon Printer Driver3, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD |
