Canon Support for imagePROGRAF iPF840 | Canon U.S.A., Inc.

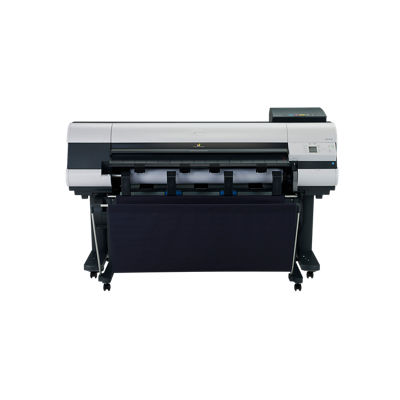

imagePROGRAF iPF840
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
imagePROGRAF Print Utility Guide
File Name
iPF840 User's Guide Ver.1.00
File Name
iPF840 Series Basic Guide Ver.1.00
File Name
Guide for Direct Print & Share (Windows)
File Name
PosterArtist Guide
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer Type | 5-Color 44-inch Printer |
Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
Nozzle Pitch | 1,200 dpi Non-firing nozzle detection and compensation |
OS Compatibility | Windows® (XP 32bit/Vista/7/8/8.1) Macintosh® (OSX 10.6.8 - 10.10) |
Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
Ink Droplet Size | 4 picoliter |
Ink Capacity | 330ml , 700ml per color2 |
Ink Droplet Size | Dye/Pigment Reactive Ink |
Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
Hard Drive | 320 GB |
Media Width | Cut Sheet - 8"- 44" Roll Feed-10" - 44" |
Media Thickness | 0.07-0.8mm |
Maximum Roll Print Length | Roll Feed - 59'3 Cut Sheet-63" |
Maximum Media Roll Diameter | 5.9" |
Borderless Printing Width | 10", 14", 17", 24", 36", 42" |
Paper Feed Method | Roll Feed: Dual Roll, Front loading, Front output Cut Sheet: One sheet, Front loading, Front output |
Languages | Language: GARO (Canon Proprietary) HP-GL/2, HP-RTL |
Noise Level Approx | Operation: 52 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: Approx. 6.8 Bels or less |
Physical Dimensions | 75"(W)x 51"(D)x 45"(H) |
Weight | Approximately 417lbs |
Power Source | AC-100-240V (50-60Hz) |
Power Consumption | Maximum: 190W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order) |
Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
Direct Print Built In Card Reader Functions
Software | Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD |
Print Resolution | 2,400 x 1,200 dpi (Max) |
