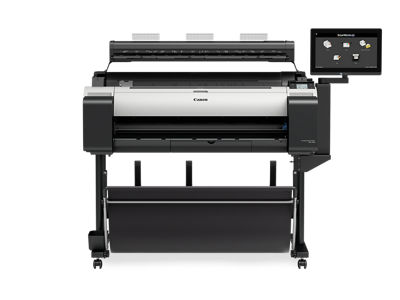

imagePROGRAF TM-300 MFP Z36
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
of
There are no results for the OS Version you selected.
File Name
Guide for Accounting Manager (Windows)
File Name
Guide for Direct Print Plus (Windows)
File Name
IJ Printer Driver (Operation guide)
File Name
Guide for Free Layout (Windows)
File Name
Guide for Quick Utility Toolbox (Mac)
File Name
Guide for Preview (Windows)
File Name
Guide for Free Layout Plus (Windows)
File Name
Guide for Accounting Manager (Mac)
File Name
Guide for Media Configuration Tool (Mac)
File Name
PosterArtist Guide
File Name
imagePROGRAF Network Security Guide
File Name
Guide for Free Layout (Mac)
File Name
Guide for Preview (Mac)
File Name
Guide for Direct Print & Share (Windows)
SETUP & TROUBLESHOOTING
PRODUCT INFO
Printer Type | 5-Color 36-inch Printer |
Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
Nozzle Pitch | 1200 dpi Non-firing nozzle detection and compensation |
Print Resolution (Up to) | 2400×1200dpi (Max) |
OS Compatibility | Windows® 7, 8.1, 10 (32/64bit) Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) Macintosh OS X v10.10.5-v10.12x |
Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX Wireless LAN (IEEE 802.11 b/g/n) Direct USB Thumb Drive Printing |
Ink Droplet Size | 5 picoliter |
Ink Capacity | 130 ml or 300ml per color |
Ink Droplet Size | Pigment Ink |
Color Set | Pigment: Matte Black, Black, Cyan, Magenta, Yellow |
Buffer Ram | 128 GB (2 GB Physical) |
Media Width | Cut Sheet - 8”- 36” Roll Feed - 8” - 36” |
Media Thickness | 0.07-0.8mm |
Maximum Roll Print Length | Roll Feed - 59' (18 meters) |
Maximum Media Roll Diameter | 5.9” (150mm) |
Borderless Printing Width | 8, 10", 12, 14", 16 17", 20, 24", 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm) |
Paper Feed Method | Roll Feed: One Roll, Top-loading, Front Output Cut Sheet: Top Loading, Front Output |
Languages | SGRaster, HPGL/2, HP-RTL, JPEG |
Noise Level Approx | Operation: 44 dB (A) Standby: 35 dB (A) or less Acoustic Power: 6.0 Bels |
Physical Dimensions | 42" x 51" x34" |
Weight | approx.130 lbs (roll holder included, no inks, no print heads) |
Power Source | AC100-240V (50-60Hz) |
Power Consumption | Maximum: 69W or less Standby 3.6W or less Power Off: 0.3W or less (Compliant with Executive Order) |
Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
User-replaceable items |
|
Software Included | TM Unified Printer Driver, Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor |
Scanner Type | Contact Image Sensor (CIS) technology |
Scan Accuracy | +/- 0.1% |
Speed | 13 ips monochrome, 6 ips color |
Optical Resolutions | 1200dpi (Adjustable from 100 dpi to 2,400 dpi) |
Max. Resolutions | 9600dpi interpolated |
Max. Document Size | Width 38 inch document width (36 inch image width) / Length: 315" (JPG or PDF) / 598" (TIFF) |
Thickness | 0.04in (1mm) |
Standard Interface | USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets) |
