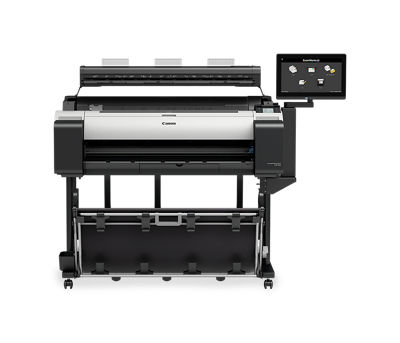

imagePROGRAF TM-305 MFP Z36
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- Linux
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer Type | 5-Color 36-inch Printer |
Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y BK: 2,560 nozzles each |
Nozzle Pitch | 1200 dpi Non-firing nozzle detection and compensation |
Print Resolution (Up to) | 2400×1200dpi (Max) |
OS Compatibility | Windows® 7, 8.1, 10 (32/64bit) Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) Macintosh OS X v10.10.5-v10.12x |
Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX Wireless LAN (IEEE 802.11 b/g/n) Direct USB Thumb Drive Printing |
Ink Droplet Size | 5 picoliter |
Ink Capacity | 130 ml or 300ml per color |
Ink Droplet Size | Pigment Ink |
Color Set | Pigment: Matte Black, Black, Cyan, Magenta, Yellow |
Buffer Ram | 128 GB (2 GB Physical) |
Media Width | Cut Sheet - 8”- 36” Roll Feed - 8” - 36” |
Media Thickness | 0.07-0.8mm |
Maximum Roll Print Length | Roll Feed - 59' (18 meters) |
Maximum Media Roll Diameter | 5.9” (150mm) |
Borderless Printing Width | 8, 10", 12, 14", 16 17", 20, 24", 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm) |
Paper Feed Method | Roll Feed: One Roll, Top-loading, Front Output Cut Sheet: Top Loading, Front Output |
Languages | SGRaster, HPGL/2, HP-RTL, JPEG |
Noise Level Approx | Operation: 44 dB (A) Standby: 35 dB (A) or less Acoustic Power: 6.0 Bels |
Physical Dimensions | 42" x 51" x35" |
Weight | approx.134 lbs (roll holder included, no inks, no print heads) |
Power Source | AC100-240V (50-60Hz) |
Power Consumption | Maximum: 69W or less Standby 3.6W or less Power Off: 0.3W or less (Compliant with Executive Order) |
Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
User-replaceable items |
|
Software Included | TM Unified Printer Driver, Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor |
Scanner Type | Contact Image Sensor (CIS) technology |
Scan Accuracy | +/- 0.1% |
Speed | 13 ips monochrome, 6 ips color |
Optical Resolutions | 1200dpi (Adjustable from 100 dpi to 2,400 dpi) |
Max. Resolutions | 9600dpi interpolated |
Max. Document Size | Width: 38 inch document width (36 inch image width) Length: 315" (JPG or PDF) / 598" (TIFF) |
Thickness | 0.079in (1mm) |
Standard Interface | USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets) |
CANON imagePROGRAF LARGE FORMAT PRINTER LIMITED WARRANTY |
The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon") with respect to the Canon imagePROGRAF Large Format Printer packaged with this limited warranty and Canon branded accessories and options designed for use with the imagePROGRAF Large Format Printer (collectively, the "Product"). Canon warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year after delivery to the original purchaser (“Purchaser”) by Canon or its authorized dealer. During the relevant warranty period, Canon shall, in its sole discretion and without charge, repair or replace any defective part with a new or comparable rebuilt part or replace the Product with a new or rebuilt Product. Warranty replacement shall not extend the warranty period of the defective Product. This warranty shall not extend to the Canon Printhead for the Product, for which a separate warranty is given. Nor shall this warranty cover other consumable parts or consumables, such as paper and ink cartridges, as to which there shall be no warranty or replacement. THIS WARRANTY SHALL BE VOID AND OF NO FORCE AND EFFECT IF THE PRODUCT IS DAMAGED AS A RESULT OF (A) ABUSE, NEGLECT, MISHANDLING, ALTERATION, ELECTRIC CURRENT FLUCTUATION OR ACCIDENT, (B) IMPROPER USE, INCLUDING FAILURE TO FOLLOW OPERATING OR MAINTENANCE INSTRUCTIONS IN, OR ENVIRONMENTAL CONDITIONS PRESCRIBED IN, CANON’S USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT, (C) REPAIR BY OTHER THAN SERVICE REPRESENTATIVES QUALIFIED BY CANON WHO ARE ACTING IN ACCORDANCE WITH CANON’S SERVICE BULLETINS (D) USE OF SUPPLIES OR PARTS (OTHER THAN THOSE DISTRIBUTED BY CANON) WHICH DAMAGE THE PRODUCT OR CAUSE ABNORMALLY FREQUENT SERVICE CALLS OR SERVICE PROBLEMS OR (E) USE OF THE PRODUCT WITH NON-COMPATIBLE COMPUTERS, PERIPHERAL EQUIPMENT OR SOFTWARE, INCLUDING THE USE OF THE PRODUCT IN ANY SYSTEM CONFIGURATION NOT RECOMMENDED IN ANY USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT. NOR DOES THIS WARRANTY EXTEND TO ANY PRODUCT ON WHICH THE ORIGINAL IDENTIFICATION MARKS OR SERIAL NUMBERS HAVE BEEN DEFACED, REMOVED, OR ALTERED. ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE DISKETTES OR CD-ROM'S ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD “AS IS” AND WITHOUT WARRANTY BY CANON. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATION AND DISCLAIMERS THEREON. PLEASE CONTACT CANON IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT. NEITHER CANON NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE T0 REALIZE SAVINGS OR OTHER BENEFITS, LOSS OR CORRUPTION OF DATA INCLUDING, WITHOUT LIMITATION, DATA STORED ON THE PRODUCT'S HARD DISK DRIVE, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS, ARISING OUT OF THE POSSESSION, USE, MISUSE OR INABILITY TO USE THE PRODUCT SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE PURCHASER, AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY. CONDITIONS OF WARRANTY Defective parts must be returned to Canon or a Service Provider with all necessary documentation and will become the property of Canon. THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. ONLY. Canon U.S.A., Inc. One Canon Park, Melville, NY 11747 - 3336 |
