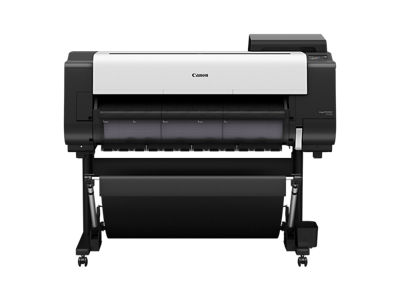

imagePROGRAF TX-3200
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above
File Name
Guide for Preview (Mac)
File Name
Guide for Quick Utility Toolbox (Mac)
File Name
Guide for Direct Print Plus (Windows)
File Name
Guide for Free Layout Plus (Windows)
File Name
Guide for Accounting Manager (Windows)
File Name
Guide for Accounting Manager (Mac)
File Name
Guide for Media Configuration Tool (Mac)
File Name
Guide for Preview (Windows)
File Name
PosterArtist Guide
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer Type | 5-Color 36-inch Printer |
Technology | FINE (Photolithography Inkjet Nozzle Engineering) |
Print Resolution (Max.) | 2400 x 1200 dpi |
Line Accuracy(1) | ±0.1% or Less |
Minimum Line Weight(2) | 0.02 mm |
Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
Ink Type | Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK) |
Ink Tank | Shipped with Printer: M: PFI-111(160ml) BK/C/Y: PFI-110(160ml) MBK: PFI-310(330ml) Replacement: M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml) MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml) |
Nozzle Recovery System | Non-firing Nozzle Detection and Compensation |
Ink Supply Method | Tubing System with Sub Tanks for Continuous Ink Supply |
Printer Controller | L-COA PRO |
Nozzle Pitch (Head Resolution) | 1200 dpi x Two Rows |
Ink Droplet Size | 5 picoliter |
Printer RAM | 128 GB (Virtual) 2 GB (Physical) |
Hard Drive | 500 GB |
Media Width | Cut Sheet: 6"- 36" (152 mm - 917 mm) Roll Feed: 6" - 36" (152 mm - 917 mm) |
Printable Margins | Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless |
Maximum Print Length (Single Page)(3) | Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m) |
Borderless Printing Widths (Roll Media Only) | Custom roll width 6 - 36 with Micro Margin Technology |
Media Cutter | Automatic horizontal rotary cutter |
Media Thickness | 0.07 - 0.8 mm |
Media Core Sizes | 2 with 3 Core Adapters Included |
Maximum Roll Outer Diameter | 6.7" (170 mm) |
Media Output Options | TX Stacker or Multipositional Catch Basket |
Media Method | Roll Feed: One Roll, Front-loading, Front Output Front Loading Manual Feed: One Roll, Front Output |
Printing Software Utilities | Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox |
Operating System | Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 14 |
Print Languages | SGRaster, HP-GL/2, HP RTL, PDF, JPEG |
Interface | USB B Port Type: Built-in (Hi-speed USB) Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins) USB A Port: Direct USB Thumb Drive Printing Gigabit Ethernet Type: Built-in Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP Wireless LAN Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4 Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
Acoustic Noise | Operation: 51 dB (A) or Less Standby: 35 dB (A) or Less Acoustic Power: Approx 6.9Bels |
Power Supply | AC 100 - 240 V (50 - 60 Hz) |
Power Consumption | Maximum: Approx. 115 W Standby: Approx. 2.0 W Power Off: Approx. 0.3 W |
Certifications | Electrical Safety Regulations C TUVus (U.S.A.), C TUVus (Canada) Electromagnetic Interface Regulations FCC Part 15B (U.S.A.), IC (Canada) Radio Regulations FCC Part 15C (U.S.A.), IC (Canada) Environmental Certifications ENERGY STAR® (Worldwide) & EPEAT Gold |
Operational Environment | Temperature: 59° F - 86° F (15° C - 30° C) Relative Humidity: 10 - 80% (No Condensation) |
Printer Dimensions (W x D x H) and Weight | With Basket Open 54.7" x 38.7" x 46"; 231.5 lb (Approx) With Basket Closed 54.7" x 30.2" x 46"; 231.5 lb (Approx) With Stacker Opened 54.7" x 46.8" x 46"; 258 lb (Approx) With Stacker Closed 54.7" x 44.2" x 46"; 258 lb (Approx) |
Package Dimensions (W x D x H) and Weight | Printer (Main Unit with Stand and Pallet) 64" x 35.6" x 40.7"; 337 lb (Approx.) Basket 56" x 21.9" x 8.4"; 20 lb (Approx.) Stacker 49.2" x 35.7" x 11.5"; 60 lb (Approx.) Roll Unit 60" x 22.1" x 18.1"; 68.3 lb (Approx.) |
Options | Multifunction Roll System (RU-32) 2"/3" Roll Holder Set (RH2-34) User-Replaceable Items Ink Tank (PFI-110/111, PFI-310/311, PFI-710/711) Print Head (PF-06) Maintenance Cartridge (MC-30) Cutter Blade (CT-07) |
