SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

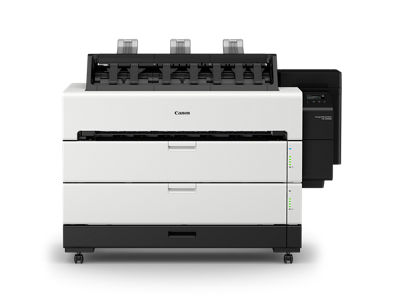

Printer Type 5-Color 36-inch Printer
Number of Nozzles Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch 1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2400×1200dpi (Max)
OS Compatibility Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
MacOS 10.12.6 and later
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size 5 picoliter
Ink Capacity 330ml or 700ml per color
Ink Droplet Size Pigment Ink
Color Set Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram 128 GB (Virtual)
2 GB (Physical)
Hard Drive 500 GB
Media Width Cut Sheet - 8”- 36”
Roll Feed - 8” - 36”
Media Thickness 0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter 6.9” (175m)
Borderless Printing Width All sizes
Paper Feed Method Roll Feed: Two Roll, Front-loading
Cut Sheet: Front-loading
Languages SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 7.0 Bels or less
Physical Dimensions 47” x 6” x 38” (Main Unit + Paper output support + Top output guide)
Weight approx. 456 lbs
Power Source AC-100-240V (50-60Hz)
Power Consumption Maximum: 157W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items Print Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-340/PFI-740)
Software Available Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
Title Notice of potential vulnerability in RSA key generation
Advisory Type
Date 04.04.22
