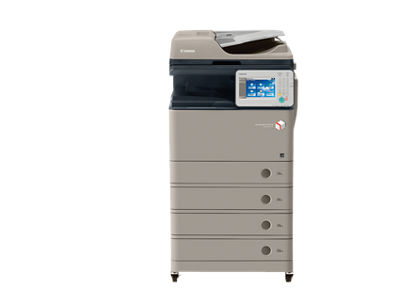

imageRUNNER ADVANCE 400iF
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
SETUP & TROUBLESHOOTING
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Model Name | imageRUNNER ADVANCE 400iF |
Type | Color Digital Multifunction Imaging System |
Functions | Copy, Print (UFR II, PCL 5e/6, Adobe® PostScript® 3™),Fax (Up to 2 Lines), Scan, Send, Store |
Operation Panel | 7" WVGA Full-Color, TFT Screen |
Image Server Memory | Standard: 1.5GB RAM Maximum: 1.5GB RAM |
Hard Disk Drive | Standard: 80GB Maximum: 80GB |
Network Interface Connection | Ethernet 10/100 Base-TX, Ethernet 1000 Base-TX |
Other Interface | USB 2.0 X3 (Host), USB 2.0 (Device) |
Special Media Support | Plain 1 [17 lb. Bond to 21 lb. Bond (64 to 80g/m2)], Plain 2 [22 lb. Bond to 24 lb. Bond (81 to 90g/m2)], Recycled [17 lb. Bond to 21 lb. Bond (64 to 80g/m2)], Color [17 lb. Bond to 24 lb. Bond (64 to 90g/m2)], Heavy 1 [25 lb. Bond to 28 lb. Bond (91 to 105g/m2)], Heavy 2 [29 lb. Bond to 34 lb. Bond (106 to 128g/m2)], Transparency [40 lb. Bond to 67 lb. Cover (151 to 181g/m2)]**, Pre-punched [20 lb. Bond to 21 lb. Bond (75 to 80g/m2)], Bond [20 lb. Bond to 24 lb. Bond (75 to 90g/m2)], Labels [40 lb. Bond to 67 lb. Cover (151 to 181g/m2)], Envelope |
Warm Up Time | From Power On: 34 Seconds From Sleep Mode: 10 Seconds or Less Quick Startup Mode: Within 7 Seconds or Less*** |
Power Requirements | 120V AC, 60Hz |
Power Consumption | Maximum: 1.5 kW Sleep Mode: 1 W |
Plug | 10.5A |
Dimension | 24-7/8" x 22-1/8" x 22-3/8" (633mm x 560mm x 567mm) |
Installation Space | Without Staple Finisher-R1: 34-3/4" x 40-7/8" (881mm x 1035mm) With Staple Finisher-R1: 50-1/4" x 40-7/8" (1276mm x 1035mm) |
Weight | Approximately 107 lb. (48.7kg)Δ |
Basic Copy Features | Preset R/E Ratios by Area, Finishing, Two-sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel, Standard Keys, Reset, Job Duration Display, Reserved Copying, ID Management, Counter Check |
Special Copy Features | ID Card Copy, Shift, Frame Erase, Scan Image Check, Mode Memory, Recall, Sharpness, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date |
Environmental Features | ENERGY STAR® Qualified RoHS Compliant Blue AngelEPEAT® Rated WEEE Directive |
Advanced Box
Advanced Box Features | Store To Remote Advanced Box:♦ Supported Print/View from Remote Advanced Box:♦ Supported |
Memory Media
Standard | USB Memory |
Scan Specifications
Network TWAIN Scan | Standard |
Network Scan Utility | Color Network ScanGear |
Copy/Print Speed (BW/Color)
Letter | (BW): Up to 42/42 ppm |
Legal | (BW): Up to 40/40 ppm |
Copy Specifications
First Copy Time | (Letter): 5 Seconds or Less |
Multiple Copies | 1 to 999 |
Copy Exposure | Automatic or Manual (9 Levels) |
Magnification | 25 - 400% (1% Increments) from Platen Glass 25 - 200% (1% Increments) from Document Feeder |
Preset Reductions | 78%, 73%, 64%, 50%, 25% |
Preset Enlargements | 400%, 200%, 129% |
Standard Paper Capacity | (20 lb. Bond): 550-sheet Paper Cassette 100-sheet Stack Bypass |
Optional | (20 lb. Bond): 550-sheet Paper Cassette (Up to 3) |
Maximum Paper Capacity | (20 lb. Bond): 2,300 Sheets |
Output Paper Capacity | (20 lb. Bond): Standard: 250 Sheets Maximum: 500 Sheets (with Staple Finisher-R1) |
Output Sizes
Cassette | LGL, LTR, STMT, EXEC, Custom size 5-1/2" x 8-1/4" to 8-1/2" to 14" (139.7mm x 210mm to 216mm x 355.6 mm), and Envelopes (COM10, Monarch, DL, ISO-C5)* |
Bypass | LGL, LTR, STMT, EXEC, Custom size [3-7/8" x 5-1/2" to 8-1/2" x 14" (99mm x 139.7mm to 216mm x 355.6mm)], and Envelopes (COM10, Monarch, DL, ISO-C5) |
Other Option | Envelope Feeder Attachment (COM10, Monarch, DL, ISO-C5)* |
Acceptable Paper Weights
Cassette | 17 lb. Bond to 28 lb. Bond (64 to 105g/m2) |
Bypass | 17 lb. Bond to 34 lb. Bond (64 to 128g/m2) |
Duplexing
Duplexing | Standard Automatic Trayless Duplexing |
Paper Size | Statement to Legal |
Paper Weight | Up to 34 lb. Bond (128g/m2) |
Image Reader
Scan Resolution | Up to 600 x 600 dpi |
Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [up to 4.4 lb. (2kg)] |
Maximum Original Size | Legal (8-1/2" to 14") |
Security Features
Standard | Department ID Management, Single Sign On-H, Access Management System (Device and Function Level Log-in), Secured Print, Trusted Platform Module, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), Send to Myself (only), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, IEEE 802.1x (wired/wireless), SMTP Authentication, POP Authentication before SMTP, HDD Initialize (Up to 9x) HDD Erase (Up to 3x), HDD Lock, IPsec, Adobe® LiveCycle® Rights Management ES2.5 Integration |
Optional | HDD Encryption, Encrypted Secure Print, Encrypted PDF, Secure Watermark, IEEE 2600.1 Common Criteria Certification♦♦ |
Estimated Toner Yield | 15,200 Copies/Bottle (Estimated @ 6% Coverage) |
Feeders
Description | Document Feeder |
Acceptable Originals | Legal, Letter, Statement |
Scan Method | Duplexing Automatic Document Feeder |
Scanning Speed | (BW/Color; Letter): Simplex: 52 ipm (600 dpi)/52 ipm (300 dpi) Duplex: 33 ipm (600 dpi)/33 ipm (300 dpi) |
Capacity | (20 lb. Bond): 100 Sheets |
Paper Weight | One-sided scanning: 11 lb. Bond to 34 lb. Bond (42 to 128g/m2), Two-sided scanning: 13 lb. Bond to 34 lb. Bond (50 to 128g/m2) |
Paper Supply Options
Description | Cassette Module-AA1 |
Paper Capacity | 550 Sheets [20 lb. Bond (80g/m2)] |
Paper Size | LGL, LTR, STMT, EXEC, Custom size [5-1/2" x 8-1/4" to 8-1/2" x 14" (139.7mm x 210mm to 216mm x 355.6mm)] |
Paper Weight | 17 lb. Bond to 28 lb. Bond (64 to 105g/m2) |
Power Source | From the Main Unit |
Power Consumption | Approximately 20W |
Dimensions | 4-3/4" x 21-1/4" x 19-3/4" (248mm x 565mm x 650mm) |
Weight | Approximately 17 lb. (7.7kg) |
Description | Envelope Cassette-E1 |
Paper Capacity | 50 sheets |
Paper Size | COM10, Monarch, DL, ISO-C5Feeding Speed: 12 cpm |
Dimensions | 3-1/4" x 21-1/4" x 18-7/8" (96mm x 54 mm x 480mm) |
Weight | Approximately 5.5 lb. (2.5kg) |
