imageRUNNER ADVANCE 4500i II Series Spec Sheet

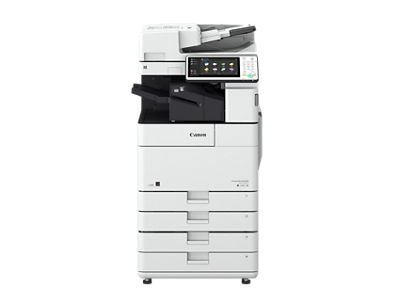

imageRUNNER ADVANCE 4551i II

MAIN UNIT
TYPEMonochrome Laser Multifunctional
CORE FUNCTIONSStandard:Print, Copy, Scan, Send, Store
Optional:Fax
PROCESSORCanon Dual Custom Processor (Shared)
CONTROL PANEL10.1" TFT LCD WSVGA Color Touch-panel
MEMORY3.0 GB RAM
HARD DISK DRIVEStandard:250 GB
Maximum:1 TB
MIRRORING HARD DISK DRIVEOptional (250 GB, 1 TB)
Method:Raid1
PRINT RESOLUTION1200 dpi x 1200 dpi
INTERFACE CONNECTIONNetworkStandard:1000Base-T/100Base-TX/10Base-T,Wireless LAN (IEEE 802.11 b/g/n)
Optional:NFC, BluetoothOthersStandard:USB 2.0 x2 (Host), USB 3.0 x1 (Host),USB 2.0 x1 (Device)
Optional:Serial Interface, Copy Control Interface
PAPER CAPACITY (LTR, 20LB BOND)Standard:1,185 Sheets
Maximum:6,335 Sheets
PAPER SOURCES (LTR, 20LB BOND)Standard:Two 550-sheet Paper Cassettes,85-sheet Stack Bypass
Optional:Two 550-sheet Paper Cassettes (Cassette Feeding Unit-AN1), 2,450-sheet Paper Deck (High Capacity Cassette Feeding Unit-B1), 2,700-sheet Paper Deck (Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LTR, 20LB BOND)Standard:250 Sheets
Maximum:3,350 Sheets (with External Finishers)
FINISHING CAPABILITIESStandard:Collate, GroupWith Inner Finisher:Collate, Group, Offset, Staple,Hole Punch,1 Staple-Free Staple,Staple On DemandWith External Finisher:Collate, Group, Offset, Staple, Booklet,2 Staple-Free Staple, Staple On Demand, Hole Punch3
SUPPORTED MEDIA TYPES Paper Cassettes:Thin, Plain, Recycled, Color, Heavy,Pre-punched
Stack Bypass:Thin, Plain, Recycled, Color, Heavy,Pre-punched, Bond, Transparency,Label, Envelope
SUPPORTED MEDIA SIZES Paper Cassettes:Thin, Plain, Recycled, Color, Heavy,Pre-punched
Stack Bypass:Thin, Plain, Recycled, Color, Heavy,Pre-punched, Bond, Transparency,Label, Envelope
SUPPORTED MEDIA WEIGHTSPaper Cassettes:16 lb. Bond to 34 lb. Bond (60 to 128 g/m2)
Stack Bypass:14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
Duplexing:16 lb. Bond to 28 lb. Bond (60 to 105 g/m2)
WARM-UP TIMEFrom Power On:24 Seconds or Less
From Deep Sleep Mode:10 Seconds or Less
Quick Startup Mode:4 Seconds4
DIMENSIONS (W X D X H)23-1/8" x 29-1/8" x 47" (587 mm x 740 mm x 1,193 mm)5
INSTALLATION SPACE (WXD)Basic [With ADF (Stack Bypass and Cassette Drawers Open)]: 35" x 46-1/2" (889 mm x 1,182 mm)
Fully Configured [With ADF+Paper Deck Unit-F1+Booklet Finisher-Y1 (Cassette Drawers Open)]:
71-3/8" x 50-3/8" (1,811 mm x 1,280 mm)
WEIGHTApprox. 240.7 lb. (109.2 kg)6

PRINT SPECIFICATIONS
PRINT SPEEDUp to 51 ppm (Letter)
Up to 37 ppm (Letter-R)
Up to 25 ppm (Legal)
Up to25 ppm (11" x 17")
STANDARD PAGE DESCRIPTION LANGUAGESUFR II, PCL®6, Adobe® PS® 3
DIRECT PRINTAvailable from USB, Advanced Box, Remote UI,and Web Access (Opt.)7
SUPPORTED FILE TYPESPDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE DEVICES AND CLOUD-BASED SERVICESA range of software and MEAP-based solutions are available to provide printing from mobile devices or Internet-connected devices and cloud-based services depending on your requirements.
FONTSPCL fonts:93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),8 Barcode Fonts9
PS fonts:136 Roman
OPERATING SYSTEM10UFRII:Windows Vista®/Server 2008/Windows® 7/Server 2008 R2/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7 or later)
PCL:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Server 2012/Server 2012 R2/Windows 10/Server 2016
PS:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7 or later)
PPD:MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows 8.1/Windows 10
PRINT FEATURESSuspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Forced Hold Printing, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
COPY SPEED Up to 51 ppm (Letter)
Up to 37 ppm (Letter-R)
Up to 25 ppm (Legal)
Up to25 ppm (11" x 17")
FIRST-COPY-OUT-TIMEAs fast as 3.7 seconds
COPY RESOLUTIONReading:Up to 600 x 600
Printing:1200 x 1200
MULTIPLE COPIESUp to 999 Copies
COPY EXPOSUREAutomatic or Manual (9 Levels)
MAGNIFICATION25%-400% (1% Increments)
PRESET REDUCTIONS25%, 50%, 64%, 73%, 78%
PRESET ENLARGEMENTS121%, 129%, 200%, 400%
BASIC COPY FEATURESPreset Reduction/Enlargement Ratios by Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
SPECIAL COPY FEATURESSuspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Forced Hold Printing, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

SCAN SPECIFICATIONS
TYPEStandard Single Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITYSingle Pass DADF-A1: 150 Sheets (20 lb. Bond)
DADF-AV1: 100 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTSSingle Pass DADF-A1BW Original:13 lb. Bond to 58 lb. Cover(50 to 157 g/m2)
CL Original:17 lb. Bond to 58 lb. Cover(64 to 157 g/m2)
DADF-AV1BW Original:13 lb. Bond to 34 lb. Bond(50 to 128 g/m2)
CL Original:17 lb. Bond to 34 lb. Bond(64 to 128 g/m2)
PLATEN ACCEPTABLE ORIGINALSSheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2 kg)]
PULL SCANColor Network ScanGear2 for both Twain and WIA
Supported OS:Windows Vista/7/8.1/10Windows Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
SCAN RESOLUTION600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200,200 x 100, 150 x 150, 100 x 100
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICESA range of solutions is available to provide scanning tomobile devices and cloud-based services depending onyour requirements.
SCAN SPEED (LETTER)Single Pass DADF-A1Single-sided ScanningBW: 80 ipm (300 dpi)/80 ipm (600 dpi)
Color: 80 ipm (300 dpi)/60 ipm (600 dpi)
Double-sided ScanningBW: 160 ipm (300 dpi)/150 ipm (600 dpi)
Color: 160 ipm (300 dpi)/80 ipm (600 dpi)
DADF-AV1Single-sided ScanningBW: 70 ipm (300 dpi)/51 ipm (600 dpi)
Color: 70 ipm (300 dpi)/51 ipm (600 dpi)
Double-sided ScanningBW: 35 ipm (300 dpi)/25.5 ipm (600 dpi)
Color: 35 ipm (300 dpi)/25.5 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATIONE-mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
COLOR MODEAutomatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White),Full color, Grayscale, and Black-and-White
ADDRESS BOOKLDAP (2,000)/Local (1,600)/Speed dial (200)
SEND RESOLUTION600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200,200 x 100, 150 x 150, 100 x 100
COMMUICATION PROTOCOLFile:FTP, SMB v3.0, WebDAVE-mail/I-Fax:SMTP, POP3, I-Fax (Simple, Full)
FILE FORMATStandard:TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, PDF A/1-b), XPS (Compact, Searchable),Office Open XML (PowerPoint®, Word), Digital Signature (PDF/XPS)
Optional:PDF (Trace & Smooth)
UNIVERSAL SEND FEATURESOriginal Type Selection,Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Detect Feeder Multi Sheet Feed

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES4
MODEM SPEEDSuper G3:33.6 Kbps
G3:14.4 Kbps
COMPRESSION METHODMH, MR, MMR, JBIG
RESOLUTION400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZEStatement-R to 11" x 17"
FAX MEMORYUp to 30,000 Pages
SPEED DIALSMax. 200
GROUP DIALS / DESTINATIONSMax. 199 Dials
SEQUENTIAL BROADCASTMax. 256 Addresses
MEMORY BACKUPYes
FAX FEATURESOriginal Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Sender's Name (TTI), Select Line, Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed

STORE SPECIFICATIONS
MAIL BOX SIMPLE(NUMBER SUPPORTED)100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored
ADVANCED BOXCommunication Protocol: SMB or WebDAV
SupportedClient PC:Windows (Windows Vista/7/8/8.1/10)
Concurrent Connections (Max.) SMB:64WebDAV:3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACEApprox. 16 GB (Standard HDD)
Approx. 480 GB (1 TB HDD)
ADVANCED BOX FEATURESDisabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
MEMORY MEDIAStandard: USB

SECURITY SPECIFICATIONS
AUTHENTICATIONStandard:Universal Login Manager, uniFLOWOnline Express,11,12 User Authentication,Department ID Authentication,Access Management System,Device and Function Level Log-in
Optional:uniFLOW
DATAStandard:Trusted Platform Module (TPM),Hard Disk Password Lock, Hard DiskDrive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated)
Optional:Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORKStandard:Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DOCUMENTStandard:Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signatures
Optional:User Signatures, Document Scan Locking

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENTTemperature:50 to 86ºF
Humidity:20 to 80% RH (no condensation)
POWER REQUIREMENTS120-127 V AC, 60 Hz, 10.4A
PLUG (MAIN UNIT)NEMA 5-15P
POWER CONSUMPTIONMaximum:Approx. 1.5 kWh
Standby:Approx. 38 W
Sleep Mode:Approx. 0.9 W13
Typical Electricity Consumption (TEC) Rating: 2.5 kWh
STANDARDSENERGY STAR® Certified
Rated EPEAT® Gold14
RoHS Compliant

CONSUMABLES
TONERGPR-57 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE)Black:42,100 Images

FOOTNOTES
1 Requires the optional Inner 2/3 Hole Puncher-C1.
2 Booklet Finisher-Y1 only.
3 Requires the optional 2/3 Hole Puncher Unit-A1.
4 Time from device power-on to when copy jobs can be programmed.
5 Includes Main Unit, Single Pass DADF-A1, and Cassette Feeding Unit-AN1.
6 Includes Main Unit, Single Pass DADF-A1, Cassette Feeding Unit-AN1, and consumables.
7 PDF print from Web sites is supported.
8 Requires the optional PCL International Font Set-A1.
9 Requires the optional Barcode Printer Kit-D1.
10 Other operating systems and environments including AS/400, UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.
11 No charge for this solution; however activation is required.
12 Check for availability.
13 0.9 W Sleep mode is not available in all circumstances due to certain settings.
14 For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
