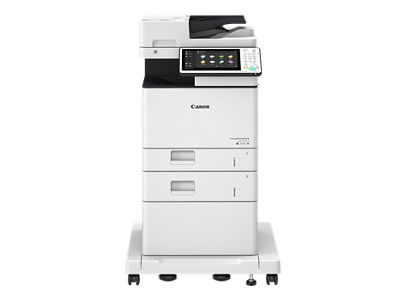

imageRUNNER ADVANCE 525iF II

Get started with these quick links.

DOWNLOADS

<p>Firmware downloads for all operating systems can be found below.</p>
Firmware Results
0 of 0
Results will appear after selecting an Operating System and Version above.
Filter & Sort
Download Type
Language
<p><span><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.

SETUP & TROUBLESHOOTING

PRODUCT INFO

imageRUNNER ADVANCE 715iF II Series Spec Sheet

imageRUNNER ADVANCE 525iF II

MAIN UNIT
TYPEMonochrome Laser Multifunction
CORE FUNCTIONSPrint, Copy, Scan, Send, Fax
PROCESSORCanon Dual Custom Processor (Shared)
CONTROL PANEL10.1" WSVGA Color Touch-panel
MEMORY3.0 GB RAM
HARD DISK DRIVEStan250 GB
INTERFACE CONNECTIONNetwork: 1000Base-T/100Base-TX/10Base-T,Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth

Others
Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host),USB 2.0 x1 (Device)
Optional: Copy Control Interface
PAPER CAPACITY (LTR, 20LB BOND)Standard: 650 SheetsMaximum: 3,200 Sheets
PAPER SOURCES (LTR, 20LB BOND)Standard: 550-sheet Paper Cassette, 100-sheet StackBypass
Optional: 550-sheet (CASSETTE FEEDING UNIT-AR1),2,550-sheet (HIGH CAPACITY CASSETTEFEEDING UNIT-D1), 550-sheet (CASSETTEMODULE-AG1), 75-envelope (ENVELOPECASSETTE MODULE-A1)
PAPER OUTPUT CAPACITY (LTR, 20LB BOND)500 Sheets
FINISHING CAPABILITIESCollate, Group
SUPPORTED MEDIA TYPES Cassette (Std.): Thin, Plain, Recycled, Color, Heavy,Labels, Bond, Pre-punchedStack Bypass: Thin, Plain, Recycled, Color, Heavy,Transparency, Bond, EnvelopeCassette Feeding Unit-AR1 (Optional):Thin, Plain, Recycled, Color, Heavy, Labels,Bond, Pre-punched High Capacity Cassette Feeding Unit-D1 (Optional):Upper: Thin, Plain, Recycled, Heavy, Color, Labels,Bond, Pre-punchedLower: Thin, Plain, Recycled, Heavy, Color, Bond,Pre-punchedCassette Module-AG1 (Optional):Thin, Plain, Recycled, Heavy, Color, Labels,Bond, Pre-punched
SUPPORTED MEDIA SIZES Cassette (Std.): Letter, Executive, Statement, Custom size(3-7/8" x 5-7/8" to 8-1/2" x 11-3/4")
Stack Bypass: Legal, Letter, Executive, Statement,Envelope [No.10 (COM10), Monarch,DL, ISO-C5], Custom size (3" x 5" to8-1/2" x 14")
Cassette Feeding Unit-AR1 (Optional):Legal, Letter, Executive, Statement,Custom size: 3-7/8" x 5-7/8" to 8-1/2" x 14"

High Capacity Cassette Feeding Unit-D1 (Optional)
Upper: Legal, Letter, Executive, Statement,Custom size: 3-7/8" x 5-7/8" to 8-1/2" x 14"
Lower: Legal, Letter-RCassette Module-AG1 (Optional):Legal, Letter, Executive, Statement,Custom size: 3-7/8" x 5-7/8" to 8-1/2" x 14"Envelope

Cassette Module-A1:No.10 (COM10), Monarch, DL, ISO-C5
SUPPORTED MEDIA WEIGHTSCassettes: 16 lb. Bond to 36 lb. Bond (60 to 135 g/m2)
Stack Bypass: 16 lb. Bond to 73 lb. Cover (60 to 199 g/m2)
Duplex: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
PRINT / COPY SPEED (BW AND COLOR)Up to 55 ppm (Letter)
Up to 45 ppm (Legal)
WARM-UP TIMEFrom Power On: 30 Seconds1
From SleepMode: 10 Seconds
Quick StartupMode: 4 Seconds2
DIMENSIONS (W X D X H)20-1/4" x 23-5/8" x 24-1/4"(514 mm x 600 mm x 616 mm)
Dimensions (W x D x H) with Paper Feeding Unit orHigh Capacity Paper Feeding25-1/4" x 26-3/8" x 42-1/4"(641 mm x 670 mm x 1073 mm)
INSTALLATION SPACE (WXD)41-3/8" x 32-3/8" (1,052 mm x 823 mm)
WEIGHT3Approx. 81.6 lb. (37 kg)

PRINT SPECIFICATIONS
PRINT RESOLUTION (dpi)1200 x 600
STANDARD PAGE DESCRIPTION LANGUAGESUFR II, PCL®6, Adobe® PS® 3
DIRECT PRINTAvailable from USB, Advanced Box, Remote UI,and Web Access4
SUPPORTED FILE TYPESPDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUDA range of software and MEAP-based solutions areavailable to provide printing from mobile devices orInternet-connected devices and cloud-based servicesdepending on your requirements.5
FONTSPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts,Andalé Mono WT J/K/S/T (Japanese,Korean, Simplified and Traditional Chinese),6Barcode Fonts7
PS fonts: 136 Roman
OPERATING SYSTEM8 UFRII/PS: Windows® 7/8.1/10, Windows Server2008/2008 R2/2012/2012 R2/2016,MAC OS X (10.7 or later)
PCL: Windows® 7/8.1/10, Windows Server2008/2008 R2/2012/2012 R2/2016
PRINT FEATURESSuspend Job Timeout, Secured Print, Encrypted SecurePrint, Watermark, Erase Frame, Header/Footer, PageLayout, Two-sided Printing, Collating, Booklet Printing,Grouping, Mixed Paper Sizes/Orientations, Offsetting,Printing on Transparencies, Toner Reduction, PosterPrinting, Job hold printing

COPY SPECIFICATIONS
FIRST-COPY-OUT TIME (LETTER)As fast as 5 Seconds
Copy Resolution (dpi)Reading: 600 x 600
Printing: 2400 x 600
MULTIPLE COPIESUp to 999 Copies
COPY EXPOSUREAutomatic or Manual (9 Levels)
MAGNIFICATION25%-400% (1% Increments)
PRESET REDUCTIONS25%, 50%, 64%, 78%
PRESET ENLARGEMENTS129%, 200%, 400%
BASIC COPY FEATURESPreset Reduction/Enlargement Ratios by Area, PaperSetting, Previous Settings, Favorite Settings, Finishing, Two sided,Density Adjustment, Exposure Adjustment, OriginalType Selection, Interrupt Mode, Setting Confirmation/Cancel
SPECIAL COPY FEATURESTwo-sided Original, Finishing, Job Build, N on 1, Different SizeOriginals, Density Adjustment, Original Type Selection, PageNumbering, Copy Set Numbering, Sharpness, Erase Frame,Secure Watermark, Print Date, Shift, Job Done Notice, CopyID Card, Skip Blank Pages, Multi Sheet Feed Detection

SCAN SPECIFICATIONS
TYPESingle-pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY100 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZESLegal, Letter, Statement, and Custom size (4-1/8" x 5-7/8"to 8-1/2" x 14")
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTBW Original: 42 to 128 g/m2CL Original: 64 to 128 g/m2
PLATEN ACCEPTABLE ORIGINALSSheet, Book, 3-Dimensional Objects [Height up to 1-1/4";Weight Up to 4.4 lb. (2 kg)]
PULL SCANColor Network ScanGear2 for both Twain and WIA
Supported OS: Windows 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
SCAN RESOLUTION600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200,200 x 100, 150 x 150, 100 x 100
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICESA range of solutions is available to provide scanning tomobile devices or cloud-based services depending onyour requirements.1
SCAN SPEED (LETTER)Single-sided Scanning(Color/BW):50/50 ipm (300 dpi);(Color/BW) 30 ipm/50 ipm (600 dpi)
Double-sided Scanning(Color/BW): 100/100 ipm (300 dpi);(Color/BW) 50 ipm/100 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATIONEmail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box,Super G3 Fax, IP Fax (Optional)
COLOR MODEAutomatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White),Full color, Grayscale, and Black-and-White
ADDRESS BOOKLDAP (2,000)/Local (1,600)/Speed Dial (200)
SEND RESOLUTION600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200,200 x 100, 150 x 150, 100 x 100
COMMUICATION PROTOCOLFile: FTP, SMB v3.0, WebDAV
E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
FILE FORMATStandard: TIFF, JPEG, PDF (Compact, Searchable,Apply Policy, Optimize for Web, PDF A/1-b,Encrypted), XPS (Compact, Searchable),Office Open XML (PowerPoint®, Word), PDF/XPS (Digital Signature)
Optional: PDF (Trace & Smooth), PDF/XPS(User Signature)
UNIVERSAL SEND FEATURESOriginal Type Selection, Two-sided Original, Different-sizeOriginals, Density Adjustment, Sharpness, Erase Frame,Job Build, Sender's Name (TTI), Direct Send, Delayed Send,Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, Email Priority, TX Report, Original ContentOrientation, Skip Blank Originals, Multi Sheet Feed Detection

FAX SPECIFICATIONS
MAXIMUM NUMBER OF CONNECTION LINESOne
MODEM SPEEDSuper G3: 33.6 KbpsG3: 14.4 Kbps
COMPRESSION METHODMH, MR, MMR, JBIG
RESOLUTION400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZEStatement to Legal
FAX MEMORYUp to 30,000 Pages
SPEED DIALSMax. 200
GROUP DIALS / DESTINATIONSMax. 199 Dials
SEQUENTIAL BROADCASTMax. 256 Addresses
MEMORY BACKUPYes
FAX FEATURESOriginal Type Selection, Two-sided Original, Density forScanning, Sharpness, Erase Frame, Job Build, Specifyingthe Sender's Name (when sending fax), Sender's Name (TTI),Selecting the Telephone Line (when sending fax), Direct Send,Delayed Send, Preview, Job Done Notice, TX Report, MultiSheet Feed Detection

STORE SPECIFICATIONS
MAIL BOX (NUMBER SUPPORTED)100 User In-boxes, 1 Memory RX In-box, 50 Confidential FaxIn-boxes, 30,000 Maximum Pages Stored
ADVANCED BOXCommunication Protocol: SMB or WebDAV
SupportedClient PC: Windows (Windows 7/8.1/10)
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACEApprox. 16 GB
ADVANCED BOX FEATURESDisabling Advanced Box, Authentication for Advanced BoxLog-in, Sort Function, Printing a PDF File with a Password,imageWARE Secure Audit Manager Support
MEMORY MEDIAStandard: USB

SECURITY SPECIFICATIONS
AUTHENTICATIONStandard: Universal Login Manager (Deviceand Function Level Log-in), UserAuthentication, Department ID,Authentication, Access ManagementSystem, uniFLOW Online Express9
Optional: uniFLOW and uniFLOW Online
DATAStandard: Trusted Platform Module (TPM), Hard DiskPassword Lock, Hard Disk Drive Erase, MailBox Password Protection, Hard Disk DriveEncryption (FIPS140-2 Validated)
Optional: Data Loss Prevention (Requires uniFLOW)
NETWORKStandard: IP/Mac Address Filtering, IPsec, TLSEncrypted Communication, SNMP V3.0, IEEE802.1X, IPv6, SMTP Authentication, POPAuthentication before SMTP
DOCUMENTStandard: Encrypted Secure Print, Adobe LiveCycle¿Rights Management ES2.5 Integration,Encrypted PDF, Device Signature, SecureWatermark
Optional User Signature

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENTTemperature: 50 to 86 ºFHumidity: 20 to 80 % RH (no condensation)
POWER REQUIREMENTS120-127V AC 60 Hz, 9.7 A
PLUG (MAIN UNIT)NEMA 5-15P
POWER CONSUMPTIONMaximum: Approx. 1.5 kWh
Standby: Approx. 29.77 W
Sleep Mode: Approx. 0.41 W10
Typical Electricity Consumption (TEC) Rating: 2.1 kWh
STANDARDSENERGY STAR® Certified
Rated EPEAT® Gold11

CONSUMABLES
TONERT03 Black (All-In-One Toner Cartridge)12
TONER YIELD (ESTIMATED @ 5% COVERAGE)1351,500 Images

FOOTNOTES
1 Time from device power-on until copy ready(not print reservation).
2 Time from device power-on to when copy icon appearson the main menu of touch-panel.
3 Includes consumables.
4 PDF print from Web sites is supported.
5 For more information, including compatibility, pleasevisit https://www.usa.canon.com/mobile-app.
6 Requires the optional PCL International Font Set-A1.
7 Requires the optional Barcode Printer Kit-D1.
8 Other operating systems and environments includingAS/400, UNIX, Linux and Citrix may be supported. Someof these solutions are chargeable. SAP Device Types areavailable via the SAP Market Place. For more information,contact your sales representative.9 No charge for this solution; however activation is required.
10 0.41 W sleep mode not available in all circumstancesdue to certain settings.
11 For current EPEAT rating (Gold/Silver/Bronze),please visit www.epeat.net.
12 Includes toner, drum, developer, and waster toner hopper.
13 Toner cartridge yield in accordance with ISO/IEC 19752.
