SETUP & TROUBLESHOOTING

PRODUCT INFO

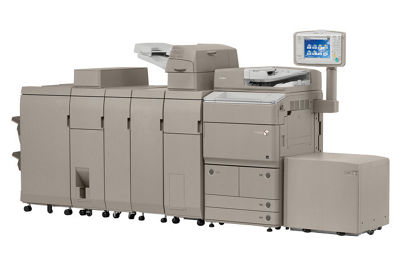

Model Name imageRUNNER ADVANCE 8295
Type Monochrome Digital Multifunction Imaging System

Letter:: Up to 95 ppm
Legal/11" x 17": Up to 60/49 ppm
Functions Standard: Copy, Print (UFR II), Scan, Send, Store

Optional: Print (PCL 5e/6, Adobe® PostScript® 3™), Fax (Up to 4 Lines)
Operation Panel 10.4" SVGA Full-Color, TFT Upright Screen
Image Server Memory Standard: 1.5GB RAM

Maximum: 2GB RAM
Hard Disk Drive Standard: 160GB

Maximum: 1TB
Mirroring Hard Disk Drive Optional (160GB, 1TB), Method: RAID1
Network Interface Connection Standard: 10Base-T/100Base-TX/1000Base-T

Optional: Wireless LAN (IEEE 802.1x via third-party adapter)
Other Interface Standard: USB 2.0 (Host) x2, USB 2.0 (Device)

Optional: Device Port [USB 2.0 (Host) x2], Serial Interface, Copy Control Interface
Max Mailboxes Supported 100 User Inboxes, 1 Memory RX Inbox,
50 Confidential Fax Inboxes
Max Pages Stored 20,000 Maximum Pages Stored
Standard Paper Capacity Dual 1,500-sheet Paper Drawers, Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
Optional 3,500-sheet Paper Deck Unit or
3,500-sheet POD Deck Lite
Maximum Paper Capacity 7,700 Sheets (with Optional Paper Deck Unit)
Output Paper Capacity (20 lb. Bond)
Maximum: 4,250 Sheets (with Staple Finisher-N1 or Booklet Finisher-N1) 5,000 (with Booklet Finisher-Q1 PRO)
Warm Up Time From Power On: 60 Seconds or Less From Sleep: 60 Seconds or Less Quick Startup Mode: 7 Seconds**
Power Requirements 120-127V AC, 60Hz, 16A
Power Consumption Maximum: 1.92kW
Sleep Mode: 0.9W or Less
Plug NEMA 5-20P
Dimension With the Upright Control Panel (To the right edge of the Upright Control Panel in the right-most position): 49-1/4" x 53-3/8" x 30-3/8"

Without the Upright Control Panel: 48" x 25-3/8" x 30-3/8"
Installation Space With the Upright Control Panel: 100-1/4" x 31-7/8"

Without the Upright Control Panel: 79" x 31-7/8"
Weight Approx. 535 lb. (242.5kg)***

Approx. 526 lb. (238.5kg)****
Basic Copy Features First-Copy-Out Time (Letter): 2.7 Seconds or Less
Multiple Copies: 1 to 9,999
Copy Exposure: Automatic or Manual (9 Levels)
Magnification: 25% - 400% (1% Increments)
Preset Reductions: 25%, 50%, 64%, 73%, 78%
Preset Enlargements: 121%, 129%, 200%, 400%
Environmental Features EPEAT® Registered ENERGY STAR® Qualified EU RoHS Compliant Ecomark WEEE Directive

Advanced Box

Available Disk Space Approx. 15GB (Standard HDD)

Approx. 629GB (1TB HDD)
Common Protocol SMB or WebDAV
Supported Client PC Windows (Windows 2000/XP/7/Windows Vista)
Max. Number of Concurrent Connections SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features Disabling Advanced Box, Storage Filtering,
Authentication for Advanced Box Log-in,
Search Function, Sort Function, Printing a PDF
File with a Password, imageWARE Secure Audit
Manager Support

Memory Media

Standard USB Memory
Optional SD, SDHC, CompactFlash, Memory Stick,
Microdrive

Scan Specifications

Network TWAIN Scan Standard
Network Scan Utility Color Network ScanGear

Output Sizes

Cassette 13" x 19", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4")
Bypass (with Booklet Finisher-Q1 PRO attached):
13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 7-1/8" to 13" x 19-1/4")
(with Staple Finisher-N1/Booklet Finisher-N1 attached):
13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

Acceptable Paper Weights

Cassette 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Bypass 14 lb. Bond to 140 lb. Index (52 to 256g/m2)

Duplexing

Paper Size Standard Automatic Trayless Duplexing (Up to 13" x 19")
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Special Media Support Thin [14 lb. Bond to 16 lb. Bond (52 to 63g/m2)], Plain [17 lb. Bond to 24 lb. Bond (64 to 90g/m2)], Heavy 1 [25 lb. Bond to 66 lb. Cover (91 to 180g/m2)], Heavy 2 [67 lb. Cover to 80 lb. Cover (181 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221 to 256g/m2)], Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab

Image Reader

Scan Resolution Up to 600 x 600 dpi
Acceptable Originals (Glass)
Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2kg)]

Security Features

Standard Department ID Management, Single Sign-On H, Access Management System (Device and Function Level Log-in), Secure Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPV6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec , Adobe LiveCycle® Rights Management ES2.5 Integration
Optional Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification††††
Estimated Toner Yield Black: 70,000 Copies/Bottle (Estimated @ 6% Coverage)

Feeders

Acceptable Originals 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
Scan Method Single-Pass Duplexing Automatic Document Feeder
Scanning Speed (BW/Color; Letter): Simplex: Up to 120/85 ipm (300 dpi)/Up to 120/51 ipm (600 dpi) †

Duplex: Up to 200/100 ipm (300 dpi)/Up to 120/51 ipm (600 dpi) †
Capacity (20 lb. Bond): 300 Sheets
Paper Weight 1-sided scanning: 13 lb. Bond to 80 lb. Cover (50 to 220g/m2)
2-sided scanning (Black-and-white original): 13 lb. Bond to 80 lb. Cover (50 to 220g/m2)
2-sided scanning (Color original): 17 lb. Bond to 80 lb. Cover (64 to 220g/m2)

Paper Supply Options

Description Paper Deck Unit-C1
Number Of Cassettes 1
Paper Capacity 3,500 Sheets [20 lb. Bond (80g/m2)]
Paper Size Letter
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Bond, Letterhead
Power Source From Main Unit
Power Consumption Approx. 39W
Dimensions 22-1/2" x 12-3/4" x 23" (570mm x 323mm x 583mm)
Weight Approx. 81.6 lb. (37kg)
Description POD Deck Lite-A1
Number Of Cassettes 1
Paper Capacity 3,500 Sheets [20 lb. Bond (80 g/m2)]
Paper Size 13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R
Paper Weight 14 lb. Bond to 140 lb. Index (52 to 256g/m2)
Paper Type Thin, Plain, Heavy, Color, Recycled, Bond, Pre-Punched, Transparency, Labels, Letterhead
Power Consumption 120-127V AC, 60Hz, 5A/Approx. 227W
Dimensions 22-1/2" x 23-5/8" x 24-1/2" (570mm x 601mm x 621mm)
Weight Approx. 110 lb. (50kg)
