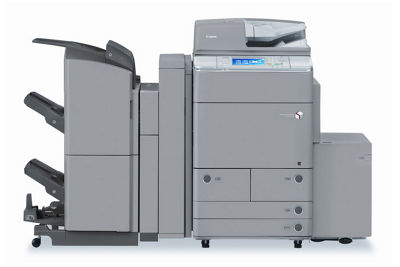

imageRUNNER ADVANCE C7260


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
image icon
Canon PRINT Business - iOS
Easily print from and scan to your iCloud accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.
image icon
Canon PRINT Business - Android
Easily print from and scan to your Dropbox, Google Drive accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.

SETUP & TROUBLESHOOTING

PRODUCT INFO

Model Name imageRUNNER ADVANCE C7260
Type Color Digital Multifunction Imaging System
Functions Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL 5c/6, Adobe® PostScript® 3™), Fax (Up to 4 Lines)
Operation Panel Standard: 8.4" SVGA Full-Color, TFT Screen
Optional: 10.4" SVGA Full-Color, TFT Upright Screen
Image Server Memory Standard: 2GB RAM
Maximum: 2.5GB RAM
Hard Disk Drive Standard: 160GB
Maximum: 1TB
Mirroring Hard Disk Drive Optional (160GB, 1TB), Method: RAID1
Network Interface Connection Standard: 10Base-T/100Base-TX/1000Base-T
Optional: Wireless LAN (IEEE 802.1x via third-party adapter)
Other Interface Standard: USB 2.0 (Host) x2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host) x2], Serial Interface, Copy Control Interface
Max Mailboxes Supported 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
Max Pages Stored 6,000 Maximum Pages Stored
Special Media Support Thin [14 lb. Bond to 16 lb. Bond (52 to 63g/m2)], Plain 1 [17 lb. Bond to 21 lb. Bond (64 to 81g/m2)], Plain 2 [22 lb. Bond to 28 lb. Bond (82 to 105g/m2)], Heavy 1 [29 lb. Bond to 40 lb. Bond (106 to 150g/m2)], Heavy 2 [56 lb. Cover to 80 lb. Cover (151 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221 to 256g/m2)], Heavy 4 [140 lb. Index to 110 lb. Cover (257 to 300g/m2)], Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab, Textured, Coated, Envelopes
Warm Up Time From Power On: 31 Seconds or Less
From Sleep Mode: 30 Seconds or Less
Quick Startup Mode: 7 Seconds*
Power Requirements 120V AC, 60Hz, 16A
Power Consumption Maximum: 2kW
Sleep Mode: 0.9W or Less
Plug NEMA 5-20P
Dimension Without the Upright Control Panel: 48-1/8" x 27-1/8" x 36-3/4" (1221mm x 689mm x 932mm)
With the Upright Control Panel (To the right edge of the Upright Control Panel in the right-most position): 55-1/4" x 46-1/2" x 36-3/4" (1403mm x 1180mm x 932mm)
Installation Space 52-7/8" x 36-3/4" (1344mm x 932mm)
Weight Approx. 604 lb. (274kg)**
Basic Copy Features Preset R/E Ratios by Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying
Special Copy Features Two-page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, Image Combination, Different-size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/ Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date, Job Block Combination, Store in User Inbox
Environmental Features ENERGY STAR® QualifiedEPEAT® Gold EU RoHS Compliant Ecomark Blue Angel WEEE Directive

Advanced Box

Available Disk Space Approx. 15GB (Standard HDD), Approx. 629GB (1TB HDD)
Common Protocol SMB or WebDAV
Supported Client PC Windows (Windows 2000/XP/7/8/Windows Vista)
Max. Number of Concurrent Connections SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support

Memory Media

Standard USB Memory
Optional SD, SDHC, CompactFlash, Memory Stick, Microdrive

Scan Specifications

Network TWAIN Scan Standard
Network Scan Utility Color Network ScanGear

Copy/Print Speed (BW/Color)

Letter Up to 60/55 ppm
Legal Up to 35/32 ppm
11" x 17: Up to 30/27 ppm

Copy Specifications

First Copy Time BW: 4.9 Seconds or Less
Color: 6.6 Seconds or Less
Multiple Copies 1 to 9,999
Copy Exposure Automatic or Manual (9 Levels)
Magnification 25% - 400% (1% Increments)
Preset Reductions 25%, 50%, 64%, 73%, 78%
Preset Enlargements 121%, 129%, 200%, 400%
Standard Paper Capacity (20 lb. Bond): Dual 1,100-sheet Paper Drawers, Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
Optional 3,500-sheet Paper Deck Unit or 3,500-sheet POD Deck Lite
Maximum Paper Capacity 6,900 Sheets (w/Paper Deck Unit Option)
Output Paper Capacity (20 lb. Bond): 4,000 Sheets (w/Staple Finisher or Booklet Finisher)

Output Sizes

Cassette 13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4")
Drawers: Letter
Bypass 13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelopes, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

Acceptable Paper Weights

Cassette 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Bypass 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Duplexing

Duplexing Standard Automatic Trayless Duplexing
Paper Size Up to 13" x 19"
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)

Image Reader

Scan Resolution Up to 600 x 600 dpi
Acceptable Originals (Glass): Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2kg)]
Maximum Original Size Up to 11" x 17"

Security Features

Standard Department ID Management, Single Sign-On H, Access Management System (Device and Function Level Log-in), Secure Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec, Adobe LiveCycle® Rights Management ES2.5 Integration
Optional Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification††
Estimated Toner Yield Black: 80,000 Copies/Bottle
Color (C,M,Y): 52,000 Copies/Bottle (Estimated @ 5% Coverage)

Feeders

Acceptable Originals Paper Sizes: 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
Scan Method Single-Pass Duplexing Automatic Document Feeder
Scanning Speed Simplex: Up to 120/120 ipm (300 dpi), Up to 120/70 ipm (600 dpi)
Duplex: Up to 200/140 ipm (300 dpi), Up to 120/70 ipm (600 dpi)
Capacity (20 lb. Bond): 300 Sheets
Paper Weight 1-sided scanning: 13 lb. Bond to 80 lb. Cover (50 to 220g/m2)
2-sided scanning (Black-and-white original): 13 lb. Bond to 80 lb. Cover (50 to 220g/m2)
2-sided scanning (Color original): 17 lb. Bond to 80 lb. Cover (64 to 220g/m2)

Paper Supply Options

Description Paper Deck Unit-C1
Number Of Cassettes 1
Paper Capacity 3,500 Sheets [20 lb. Bond (80g/m2)]
Paper Size Letter
Paper Weight 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)
Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched
Power Source From Main Unit
Power Consumption Approx. 44W
Dimensions 22-1/2" x 12-3/4" x 23" (570mm x 323mm x 583mm)
Weight Approx. 81.6 lb. (37kg)
Description POD Deck Lite-A1
Number Of Cassettes 1
Paper Capacity 3,500 Sheets [20 lb. Bond (80g/m2)]
Paper Size 13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R
Paper Weight 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)
Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Labels, Bond, Textured, Coated, Letterhead
Power Source 120-127V AC, 60Hz, 2.4A
Power Consumption Approx. 263W
Dimensions 22-1/2" x 23-5/8" x 24-1/2" (570mm x 601mm x 621mm)
Weight Approx. 110 lb. (50kg)
