imageRUNNER ADVANCE C7500 Series Spec Sheet

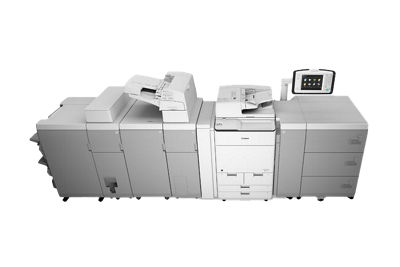

imageRUNNER ADVANCE C7570i

MAIN UNIT
TYPEColor Laser Multifunctional
CORE FUNCTIONSStandard: Print, Copy, Scan, Send, Store
Optional: Fax
PROCESSORCanon Dual Custom Processor (Shared)
CONTROL PANELStandard: 10.1" TFT LCD WSVGA Color Touch-panel
Optional: 10.4" TFT LCD WSVGA Color Upright-panel
MEMORY4.0 GB RAM
HARD DISK DRIVEStandard: 250 GB
Maximum: 1 TB
MIRRORING HARD DISK DRIVEOptional (250 GB, 1 TB)
Method: Raid1
INTERFACE CONNECTIONNetwork Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth

Others
Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)
Optional: Serial Interface, Copy Control Interface
PAPER CAPACITY (LTR, 20LB BOND)Standard: 3,550 Sheets
Maximum: 9,300 Sheets
PAPER SOURCES (LTR, 20LB BOND)Standard: Two 1,100-sheet Paper Drawers, Two 550-sheet Paper Cassettes, 250-sheet Stack Bypass
Optional: 3,500-sheet Paper Deck (Paper Deck Unit-E1), 3,500-sheet Paper Deck (Pod Deck Lite-C1), 6,000-sheet Paper Deck (Multi-Drawer Paper Deck-C1)
Maximum: 9,300 Sheets (With Multi-Drawer Paper Deck-C1)
PAPER OUTPUT CAPACITY (LTR, 20LB BOND)250 Sheets (with Copy Tray-R2)
3,500 Sheets (with External Finisher-V2)
4,250 Sheets (with External Finisher-X1)
FINISHING CAPABILITIESStandard: Collate, Group
With Finishers: Collate, Group, Offset, Staple, Booklet, Hole Punch, Staple-Free Staple, Staple On Demand, Document Insertion, Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold, Trimming
SUPPORTED MEDIA TYPESPaper Drawers (1/2): Thin, Plain, Recycled, Color, Heavy, Pre-punched, Letterhead, Bond, Transparency
Paper Cassettes (3/4): Thin, Plain, Recycled, Color, Heavy, Pre-punched, Letterhead, Bond, Transparency, Tab, Envelope
Stack Bypass: Thin, Plain, Recycled, Color, Heavy, Pre-punched, Labels, Letterhead, Bond, Coated, Transparency, Tab, Tracing, Envelope, Textured
SUPPORTED MEDIA SIZESPaper Drawers (1/2): Letter
Paper Cassettes (3/4): 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4"), Envelope Custom Size (3-7/8" x 5-7/8" to 13" x 19-1/4")
Stack Bypass: 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (4" x 5-7/8" to 13" x 19-1/4"), Envelope Custom Size (3-1/2" x 3-7/8" to 13" x 19-1/4"), Free Size (4" x 7-1/8" to 13" x 19-1/4")
SUPPORTED MEDIA WEIGHTSPaper Drawers: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
Paper Cassettes: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2)
Stack Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2)
Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
WARM-UP TIMEFrom Power On: 30 Seconds or Less
From Deep Sleep Mode: 30 Seconds or Less
Quick Startup Mode: 4 Seconds1
DIMENSIONS (W X D X H)27-1/8" x 37-1/8" x 48" (689 mm x 941 mm x 1,220 mm)
INSTALLATION SPACE (WXD)Basic [With Booklet Finisher-V2 (Stack Bypass and Cassette Drawers Open)]: 75-3/8" x 60" (1,913 mm x 1,524 mm)
Fully Configured [With Multi-Drawer Paper Deck-C1+Document Insertion Unit-N1+Multi Function Professional Puncher-A1+Document Insertion Unit-N1+ Booklet Finisher-X1 (Cassette Drawers Open)]: 150-3/8" x 60" (3,818 mm x 1,524 mm)
WEIGHTApprox. 595.2 lb. (270 kg)2

PRINT SPECIFICATIONS
PRINT SPEED (BW and Color)Up to 70/65 ppm (Letter); Up to 52/48 ppm (Letter-R); Up to 41/38 ppm (Legal); Up to 35/32 ppm (11" x 17")
PRINT RESOLUTION1200 dpi x 1200 dpi, 600 dpi x 600 dpi
STANDARD PAGE DESCRIPTION LANGUAGESUFR II, PCL®6, Adobe® PS® 3
DIRECT PRINTAvailable from USB, Advanced Box, Remote UI, and Web Access (Opt.)3
SUPPORTED FILE TYPESPDF, TIFF, JPEG, EPS,4 XPS
PRINTING FROM MOBILE AND CLOUDA range of software and MEAP-based solutions are available to provide printing from mobile devices or Internet-connected devices and cloud-based services depending on your requirements.
FONTSPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),5 Barcode Fonts6
PS fonts: 136 Roman
OPERATING SYSTEM7UFRII: Windows Vista®/Server 2008/Windows® 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later)
PCL: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10
PS: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later)
PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows 8.1/Windows 10
PRINT FEATURESSuspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Forced Hold Printing, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
COPY SPEED (BW and Color)Up to 70/65 ppm (Letter); Up to 52/48 ppm (Letter-R); Up to 41/38 ppm (Legal); Up to 35/32 ppm (11" x 17")
FIRST-COPY-OUT-TIMEAs fast as 4.8 seconds (BW)/ 5.9 seconds (Color)
COPY RESOLUTIONReading: 600 dpi x 600 dpi
Printing: 1200 dpi x 1200 dpi
MULTIPLE COPIESUp to 9,999 copies
COPY EXPOSUREAutomatic or Manual (9 Levels)
MAGNIFICATION25%-400% (1% Increments)
PRESET REDUCTIONS25%, 50%, 64%, 73%, 78%
PRESET ENLARGEMENTS121%, 129%, 200%, 400%
BASIC COPY FEATURESPreset Reduction/Enlargement Ratios by Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
SPECIAL COPY FEATURESBook to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original, Color Balance, Adjust One-Touch Color, Area Designation

SCAN SPECIFICATIONS
TYPEColor Platen and Single-pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY300 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTBW Original: 13 lb. Bond to 80 lb. Cover (50 to 220 g/m2)
CL Original: 17 lb. Bond to 80 lb. Cover (64 to 220 g/m2)
PLATEN ACCEPTABLE ORIGINALSSheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2 kg)]
PULL SCANColor Network ScanGear2 for both Twain and WIA
Supported OS: Windows Vista/7/8/8.1/10 Windows Server 2003/Server 2003 R2/ Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
SCAN RESOLUTION600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100dpi
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICESA range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)Single-sided Scanning (BW): 120 ipm (300 dpi)/120 ipm (600 dpi)
Single-sided Scanning (Color): 120 ipm (300 dpi)/70 ipm (600 dpi)
Double-sided Scanning (BW): 240 ipm (300 dpi)/150 ipm (600 dpi)
Double-sided Scanning (Color): 220 ipm (300 dpi)/90 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATIONE-mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
COLOR MODEAutomatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full color, Grayscale, and Black-and-White
ADDRESS BOOKLDAP (2,000)/Local (1,600)/Speed dial (200)
SEND RESOLUTION600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100dpi
COMMUICATION PROTOCOLFile: FTP, SMB, WebDAV
E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
FILE FORMATStandard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b), XPS (Compact, Searchable), Office Open XML (PowerPoint®, Word)
Optional: PDF (Trace & Smooth, Encrypted), PDF/XPS (Digital Signature)
UNIVERSAL SEND FEATURESOriginal Type Selection,Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Detect Feeder Multi Sheet Feed

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES4
MODEM SPEEDSuper G3: 33.6 Kbps
G3: 14.4 Kbps
COMPRESSION METHODMH, MR, MMR, JBIG
RESOLUTION400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
SENDING / RECORDING SIZEStatement-R to 11" x 17"
FAX MEMORYUp to 30,000 pages
SPEED DIALSMax. 200
GROUP DIALS / DESTINATIONSMax. 199 dials
SEQUENTIAL BROADCASTMax. 256 addresses
MEMORY BACKUPYes
FAX FEATURESOriginal Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Sender's Name (TTI), Select Line, Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed

STORE SPECIFICATIONS
MAIL BOX (NUMBER SUPPORTED)100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored
ADVANCED BOXCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows Vista/7/8/8.1/10)
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACEApprox. 16 GB (Standard HDD)
Approx. 480 GB (1 TB HDD)
ADVANCED BOX FEATURESDisabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
MEMORY MEDIAStandard: USB

SECURITY SPECIFICATIONS
AUTHENTICATIONStandard: Universal Login Manager, User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in
Optional: uniFLOW
DATAStandard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated)
Optional: Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORKStandard: IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DOCUMENTStandard: Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration
Optional: Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan Locking

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENTTemperature: 50 to 86ºF
Humidity: 20 to 80% RH (no condensation)
POWER REQUIREMENTS120-127 V AC, 60 Hz,16 A
PLUG (MAIN UNIT)NEMA 5-20P
POWER CONSUMPTIONMaximum: Approx. 2.0 kWh
Standby: Approx. 119.2 W
Sleep Mode: Approx. 0.9 W8
Typical Electricity Consumption (TEC) Rating: 4.6 kWh
STANDARDSENERGY STAR®
Certified Rated EPEAT®
Gold9 RoHS Compliant

CONSUMABLES
TONERGPR-56 Toner
TONER YIELD (ESTIMATED @ 5% COVERAGE)Black: 82,000 Copies/Bottle
Color (C,M,Y): 66,500 Copies/Bottle

FOOTNOTES
1 Time from device power-on to when copy jobs can be programmed.
2 Includes main unit, ADF, and consumables.
3 PDF print from Web sites is supported.
4 EPS can be printed directly only from the Remote User Interface.
5 Requires the optional PCL International Font Set-A1.
6 Requires the optional Barcode Printer Kit-D1.
7 Other operating systems and environments including AS/400, UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.
8 0.9 W Sleep mode is not available in all circumstances due to certain settings.
9 For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
