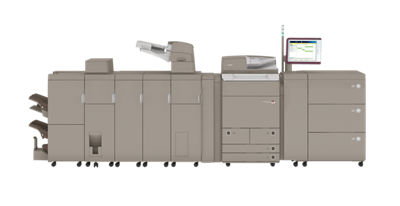

imageRUNNER ADVANCE C9065S PRO

Get started with these quick links.

DOWNLOADS

Language
Download Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 09.08.11
File Size 11.1 MB
Date 09.08.11
File Size 1.61 MB
image icon
Canon PRINT Business - iOS
Easily print from and scan to your iCloud accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.
image icon
Canon PRINT Business - Android
Easily print from and scan to your Dropbox, Google Drive accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.

SETUP & TROUBLESHOOTING

PRODUCT INFO

Model Name imageRUNNER ADVANCE C9065S PRO
System Type Color Digital Multifunction Imaging System
Functions Copy, Scan, Print
Operation Panel PRISMAsync 15" LCD Standard Configuration: imageRUNNER ADVANCE C9075S PRO/ C9065S PRO Main Unit, Duplex Color Image Reader Unit-A1, PRISMAsync iR-ADV C9000S PRO, Operator Panel, Scanning-B1,⟩ Scheduler-A1,⟩ Multiple Queues/Hot Folders-A1,⟩ E-shredding-B1,⟩ X-Rite Eye-One Spectrophotometer
Memory Standard/Maximum: 2.5GB RAM
HDD Drive Standard: 80GB
Maximum: 1TB
Network Interface Connection Standard: Ethernet (10Base-T/100Base-TX/1000Base-T)
Other Interface Standard: USB (at Operator Panel)
Copy/Print Speed (BW/Color) Letter: Up to 65/65 ppm
Legal/11" x 17": Up to 39/39 ppm / Up to 33/33 ppm
Paper Source (20 lb. Bond):
Standard: Dual 1,100-sheet Paper Drawers/Dual 550-sheet Cassettes/100-sheet Stack Bypass
Optional: 3,500-sheet Paper Deck-A1, 3,500-POD Deck Lite-A1, or 6,000-sheet/Multi-Drawer Paper Deck-A1
Maximum: 9,300 Sheets (with Multi-Drawer Paper Deck option)*
Output Paper Capacity (20 lb. Bond):
With Copy Tray: 250 Sheets
With Staple or Booklet Finisher: 4,250 Sheets
Output Paper Sizes Drawers: Letter
Cassettes: 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4")
Bypass: 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 5-7/8" to 13" x 19-1/4")
Acceptable Paper Weights Drawers/Cassettes: 14 lb. Bond to 80 lb. Cover
Bypass: 14 lb. Bond to 110 lb. Cover
Duplexing Paper Size: Standard Automatic Trayless Duplexing (Up to 13" x 19")
Paper Weights: 14 lb. Bond to 80 lb. Cover
Special Media Support Drawers: Transparency
Cassettes: Transparency, Tab
Bypass: Transparency, Tracing, Labels, Coated, Textured, Envelopes
Warm Up Time From Power On: 5 Minutes
From Sleep Mode: 5 Minutes
From Energy Saver Mode: 90 Seconds
Power Requirements Main Unit: 208V AC, 60Hz, 15A/NEMA 6-15P
PRISMAsync: 120V AC, 60Hz, 10-5A/NEMA 5-15P
Power Consumption (Maximum): Main Unit: 2.5kW or Less; Sleep Mode: 1.5W
PRISMAsync: 181W or Less: Sleep Mode: 117W
Total: 2.68kW or Less; Sleep Mode: 118.5W
Plug Main Unit: 15A/NEMA 6-15P
PRISMAsync: 10-5A/NEMA 5-15P
Dimensions Main Unit: 55-1/10" x 44-1/10" x 36-3/4"**
PRISMAsync: 16-1/2" x 7-9/10 x 16-9/10"
Installation Space 50-1/5" x 57-1/10" (1275mm x 1450mm) (when Stack Bypass is extended, Operator Panel is in right-most position, and the Cassette is drawn)
Weight Main Unit:♦ Approx. 635 lb.
PRISMAsync: Approx. 35.3 lb.
Total:♦ Approx. 670 lb.

Image Reader Unit

Scan Resolutions Up to 600 x 600 dpi
Acceptable Originals Sheet, Book, 3-Dimensional Objects (up to 4.4 lb.)
Maximum Original Size Up to 11" x 17"

Document Feeder

Scan Method Single-Pass Duplexing Automatic Document Feeder
Acceptable Originals Paper Sizes: 11" x 17", Legal, Letter, Letter-R,Statement, or Statement-R
Paper Weights: BW Originals: 13 lb. Bond to 80 lb. Cover
Color Originals: 17 lb. Bond to 80 lb. Cover
Scanning Speed Copy/Scan Simplex: 45/45 ipm (600 dpi)
Copy/Scan Duplex: 44/44 ipm (600 dpi)
Paper Capacity (20 lb. Bond): 300 Sheets

Copy Specifications

First Copy Output Time BW: 15 Seconds
Color: 15 Seconds
Multiple Copies 1 to 9,999
Color Mode Black and White, Color
Magnification 25% - 400% (1% Increments)
Copy Features Original: 1- or 2-sided, Original type, Size, Background
Output: 1- or 2-sided, Binding edge, Media, Cover, Layout, Zoom, Align, Shift, Print delivery, Margin erase, Adjust image, Color/Black & white, Punching,† Folding,† Binding,† Trimming†
Job: Job name, Number of sets, Destination, Separator sheets, Account ID

Print Specifications

Processor Intel® Quad CoreTM i7
Type: External
Operating System: Windows® XPe® SP3
First-Print-Out-Time: (Letter):
BW: 8 Seconds
Color: 8 Seconds
Memory 4GB
Hard Disk 3 x 3.5" SATA II, 250GB, 7200 RPM
DVD-ROM: Standard
Interface Connections: 10/100/1000Base-T, TCP/IP (LPR/LPD), 9100 Socket (SMB), Static IP/Auto-IP (DHCP)
Engine Resolution 1200 x 1200 dpi
PDL Support Adobe® PS3 (3019), PDF 1.7, [Extension Level 3 (for Acrobat® 9)], PDF/X, Optimized PS, Optimized PDF
Print Driver Supported OS Windows Vista®, Windows 7 (32-bit and 64-bit), MAC® OS X10.4/10.5/10.6 (32-bit), PPD
Print Features Waiting/scheduled jobs queues, printed jobs archive; One queue and job management for printing and copying; Streaming (spool-while-RIP-while-print while- clean-up), unlimited job length at constant print speed via clearing up while printing; Multiple standard and customizable workflow profiles; Media based operation with PRISMA media catalog; Web-based controller Settings Editor; Professional high-speed color management with Adobe ACE Color Management module and dedicated GPU; Calibration per media family and halftone; Spot color editing including CMYK value definition for spot color tints; Unlimited color pre-set definition for easy and timesaving re-use; Scheduler at operating panel: 8 hours plan-ahead functionality for multiple jobs simultaneously; Workflow automation via LPR queues and PDF/PS Hot Folders
Fonts: 136 Type 1 fonts for Roman languages; User import of PS fonts via Settings Editor
Spot Color Libraries: HKS K, HKS K3000+, HKS N, HKS N 3000+, PANTONE® Goe un/coated, PANTONE®+ Solid un/coated Scan Specifications
Standard: Scan-to-E-mail, Scan-to-FTP, Scan-to-USB
Option: Scan-to-PRISMAaccess
Scan Resolution: Up to 600dpi
File Format: (Single/Multi-page) TIFF, JPEG, PDF
Security Specifications Standard: E-shredding, HTTPS, Password protection per user role (key operator, system administrator, service technician)
Optional: Removable HDD
Environmental Information ENERGY STAR® Qualified RoHS Compliant WEEE Directive

Paper Supply Options

Description Paper Deck Unit-A1
Paper Capacity 3,500 Sheets (20 lb. Bond)
No Of Drawers 1
Acceptable Paper Weight 14 lb. Bond to 80 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched
Acceptable Paper Size Letter
Power Source From Main Unit
Maximum Power Consumption 44W
Dimensions 22-1/2" x 12-3/4" x 23"
Weight Approx. 81.6 lb
Description POD Deck Lite-A1
Paper Capacity 3,500 Sheets (20 lb. Bond)
No Of Drawers 1
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-punched, Transparency, Labels, Bond, Letterhead, Coated, Textured
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R
Power Requirement 120-127V AC, 60Hz, 5A
Maximum Power Consumption 288W
Plug NEMA 5-15P
Dimensions 22-1/2" x 23-5/8" x 24-1/2"
Weight Approx. 110 lb.
Description Multi-Drawer Paper Deck-A1
Paper Capacity 6,000 Sheets (20 lb. Bond)
No Of Drawers 3 (2,000 Sheets each)
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Labels, Tab, Bond, Letterhead, Coated, Textured
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Custom Size [5-1/2" x 7-1/8" to 13" x 19-1/4" (140mm x 182mm to 330mm x 488mm)]
Power Requirement 120-127V 60Hz 4A
Maximum Power Consumption Approx. 753W
Plug NEMA 5-15P
Dimensions 41" x 37-3/8" x 31-3/8"

Output Options

Description Copy Tray-P1
Total Output Capacity 250 Sheets (20 lb. Bond)
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [4" x 5-7/8" to 13" x 19-1/4"
Dimensions 6-7/8" x 16-1/2" x 15"
Weight Approx. 2.9 lb.
Description Staple Finisher-A1
Number Of Trays 3
Tray Capacity Tray A: 1,500 Sheets (Letter, Statement-R, Executive) 750 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R)
Tray B: 250 Sheets (Letter) 125 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R, Executive)
Tray C: 2,500 Sheets (Letter) 1,250 Sheets (Statement-R, Executive) 750 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R)
Total Output Capacity 4,250 Sheets (Letter, Statement-R,Executive)
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Tab, Bond, Letterhead, Coated, Textured, Envelopes
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [(4" x 5-7/8" to 13" x 19-1/4") (100mm x 148mm to 330mm x 488mm)]
Staple Positions Corner/Double Stapling: 11" x 17", Legal, Letter, Letter-R,Executive
Max Stapling Capacity 100 Sheets (20 lb. Bond) (Letter, Executive)
50 Sheets (20 lb. Bond) (11" x 17", Legal, Letter-R)
Paper Capacity of Staple Mode Tray A/C: 1,500 Sheets/100 Sets(Letter, Statement-R, Executive),750 Sheets/50 Sets (13" x 19", 12" x 18",11" x 17", Legal, Letter-R)
Type of Staples Staple-G1 (5,000 x 3)
Power Requirement 100-240V, 50/60Hz, 2.8A
Max Power Consumption 207W
Plug NEMA 5-15P
Dimensions 41" x 25-3/4" (30-3/4"††) x 30-1/8"
Weight Approx. 134 lb.
Description Booklet Finisher-A1
Number Of Trays 3
Tray Capacity Tray A: 1,500 Sheets (Letter, Statement-R, Executive) 750 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R)
Tray B: 250 Sheets (Letter) 125 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R, Executive)
Tray C: 2,500 Sheets (Letter) 1,250 Sheets (Statement-R, Executive) 750 Sheets (13" x 19", 12" x 18", 11" x 17", Legal, Letter-R)
Total Output Capacity 4,250 Sheets (Letter, Statement-R, Executive)
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre- Punched, Transparency, Tracing, Labels, Tab, Bond, Letterhead, Coated, Textured, Envelopes
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size [4" x 5-7/8" to 13" x 19-1/4" (100mm x 148mm to 330mm x 488mm)]
Staple Positions Corner Stapling: 11" x 17", Legal, Letter, Letter-R, Executive
Double Stapling: 11" x 17", Legal, Letter, Letter-R, Executive
Saddle-Stitch: 13" x 19", 12" x 18", 11" x 17", Legal, Letter-R
Max Stapling Capacity 100 Sheets (20 lb. Bond) (Letter, Executive)
50 Sheets (20 lb. Bond) (11" x 17", Legal, Letter-R)
Paper Capacity of Staple Mode Tray A/C: 1,500 Sheets/100 Sets(Letter, Statement-R, Executive),750 Sheets/50 Sets (13" x 19", 12" x 18",11" x 17", Legal, Letter-R)
Max Saddle Stitch Capacity 20 Sheets (including one cover page 110 lb. Bond) (20 lb. Bond)
Paper Capacity Saddle Stich Mode 1 to 5 Sheets/25 Sets, 6 to 10 Sheets/ 15 Sets, 11 to 16 Sheets/10 Sets, 17 to 20 Sheets/5 Sets
Type of Staples Staple-G1 (5,000 x 3)
Staple-P1 (5,000 x 2)
Power Requirement 100-240V 50/60Hz, 2.8A
Max Power Consumption 255W
Plug NEMA 5-15P
Dimensions 41" x 30-1/4" (35-1/4"††) x 30-1/8"
Weight Approx. 238 lb.
Description Document Insertion Unit-H1ΔΔ
Number Of Trays 2
Acceptable Media Covers and Inserts
Tray Capacity Upper: 200 Sheets (20 lb. Bond)
Lower: 200 Sheets (20 lb. Bond)
Acceptable Paper Weight 14 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Color, Recycled, Pre-punched, Tab, Bond, Letterhead, Coated, Textured
Acceptable Paper Size 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Custom Size [7-1/8" x 7-1/8" to 13" x 19-1/4" (140mm x 182mm to 330mm x 488mm)]
Power Requirement 100-240V/2.8A, 50/60Hz
Max Power Consumption 103W
Plug NEMA 5-15P
Dimensions 55-3/8" x 13-1/4" x 31-1/4"
55-3/8" x 29-3/8" x 31-1/4" (with Insertion Feeding Tray)
Weight Approx. 134 lb.
Description Paper Folding Unit-G1ΔΔ
Folding Method Roller Pressure Folding
Folding Type Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold
Acceptable Paper Weight 14 lb. Bond to 28 lb. Bond
Acceptable Paper Type Thin, Plain, Color, Recycled, Bond
Acceptable Paper Size Accordion Z-Fold, C-Fold, Half-Fold: Letter-R Z-Fold: 11" x 17", Legal, Letter-R
Double Parallel Fold: Legal, Letter-R
Power Requirement From Finisher
Max Power Consumption 130W
Dimensions 46-7/8" x 13-1/4" x 31-1/4"
Weight Approx. 156.5 lb.
Description Puncher Unit-BF1†††
Acceptable Punch Paper Weight 14 lb. Bond to 140 lb. Index
Acceptable Punch Paper Type Thin, Plain, Heavy, Color, Recycled, Tab, Bond, Letterhead, Coated, Textured
Acceptable Punch Paper Size 11" x 17", Legal, Letter, Letter-R
Punch Type 2 Holes (Legal, Letter-R)
3 Holes (11" x 17", Letter)
Distance Between Punch Holes 2 Holes: 2-3/4" (70mm)
3 Holes: 4-1/4" (108mm)
Punch Waste Tray Capacity Approx. 5,000 Sheets (20 lb. Bond)
Power Requirement From Finisher
Max Power Consumption Approx. 56W (when in operation)
Dimensions Inside the Finisher (15-1/2" x 3-3/4" x 15-1/2")
Weight Approx. 8.2 lb.
Description Professional Puncher-C1/ Professional Puncher Integration Unit-B1ΔΔ
Acceptable Punch Paper Weight Letter (3-hole, 5-hole, Velo Bind 11-hole, Plastic Comb 19-hole, Twin Loop 21-hole/ 32-hole, Color Coil 44-hole): 20 lb. Bond to 80 lb. Cover
Letter (ProClick 32-hole): 20 lb. Bond to 65 lb. Cover
Acceptable Punch Paper Type Plain, Heavy, Color, Recycled, Tab, Coated
Acceptable Punch Paper Size Letter
Punch Patter Die Sets Plastic Comb (19-hole)
Twin Loop (21/32-hole)
Color Coil (44-hole)
Velo Bind (11-hole)
Loose Leaf (3/5-hole)
ProClick (32-hole)
Punch Waste Tray Capacity Approx. 25,000 Sheets or more of 20 lb. Bond with 4 holes punched
Power Requirement 120-127V/5.5A-60Hz
Max Power Consumption Professional Puncher-C1: 300W
Professional Puncher Integration Unit-B1: 130W Max.
Plug NEMA 5-15P
Dimensions Professional Puncher-C1: 41" x 12" x 31-1/4"
Professional Puncher Integration Unit-B1: 41" x 9-7/8" x 31-1/4"
Weight Professional Puncher-C1: Approx. 176 lb.
Professional Puncher Integration Unit-B1: Approx. 88.2 lb.
Description Inner Booklet Trimmer-A1Δ
Trimming Method Face Trim
Trim Thickness 40 Sheets (2mm to 20mm Trimming Width)
Waste Tray Capacity 1,500 Sheets of Trimmed Strips (Width 0.78" (20mm), Letter, 20 lb. Bond)
Acceptable Paper Weight 16 lb. Bond to 110 lb. Cover
Acceptable Paper Type Thin, Plain, Heavy, Recycled, Color, Coated
Total Output Capacity 30 Booklets
Power Requirement From Finisher
Max Power Consumption 51W (when in operation)
Dimensions Inside the Finisher 15-7/8" x 9-7/8" x 24-5/8"
Weight Approx. 70.5 lb. Other Optional Accessories: Operator Attention Light Removable HDD Kit-AB1 3.5-inch/1TB HDD-B1 Key Switch Unit-B1 ADF Access Handle-A1 Remote Viewer-B1 Fontset Simplified Chinese-B1 Fontset Traditional Chinese-B1 Fontset Japanese-B1 Fontset Korean-B1⟩ PRISMAsync license accessories.
* Stack Bypass is not available when Multi-Drawer Paper Deck is installed.
** With Operator Panel in left-most position.
*** With Operator Panel in right-most position.
♦ Includes ADF, consumables, Operator Panel.
† Requires optional accessories.
†† When the Auxiliary Tray is extended.
††† Puncher Unit-BF1 installs internally with either Staple Finisher-A1 or Booklet Finisher-A1.
Δ Option for Booklet Finisher-A1.
ΔΔ Requires Staple Finisher-A1 or Booklet Finisher-A1.

SUPPLIES & ACCESSORIES

GET SUPPORT
Need help with your product? Let us help you find what you need.
Product Support
NEED IT FIRST
Sign up for up-to-the-minute Canon News, Sales and Deals.
LEARN WITH CANON
Discover great new ways to enjoy your products with exclusive articles, training and events.
Learn more
