imageRUNNER ADVANCE DX 6000i


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
image icon
Canon PRINT Business - iOS
Easily print from and scan to your iCloud accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.
image icon
Canon PRINT Business - Android
Easily print from and scan to your Dropbox, Google Drive accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.

SETUP & TROUBLESHOOTING

PRODUCT INFO

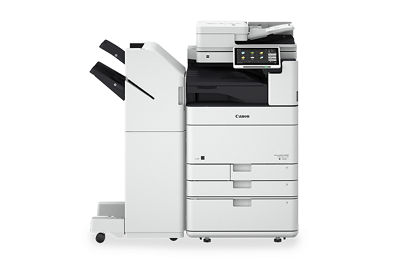

imageRUNNER ADVANCE DX 6000i

MAIN UNIT

TYPE MonochromeLaserMultifunctional
CORE FUNCTIONS Standard:Print,Copy,Scan,Send,Store
Optional: Fax
PROCESSOR 1.75GHzDualCoreProcessor
CONTROL PANEL10.1"TFTLCDWSVGAColorFlat-panel
MEMORY4.0GBRAM
HARD DISK DRIVEStandard:250GB/Maximum:1TB
INTERFACE CONNECTION Network: 1000Base-T/100Base-TX/10Base-T,WirelessLAN(IEEE802.11b/g/n)
Others
Standard:USB2.0(Host)x1,USB3.0x1(Host),USB2.0x1(Device)
Optional: CopyControlInterface

PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard:1,200Sheets
Maximum:6,350Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)Standard: Dual550-sheetPaperCassettes,100-sheetStackBypass
Optional: Dual550-SheetPaperCassettes(CassetteFeedingUnit-AM1),2,450-SheetHighCapacityPaperCassette(HighCapacityCassetteFeedingUnit-A1),2,700-SheetPaperDeck(PaperDeckUnit-F1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)Standard:250Sheets
Maximum: 3,450Sheets(withExternalFinisherandCopyTray)
FINISHING CAPABILITIESStandard: Collate,Group
WithOptions:Collate,Group,Offset,Staple,Saddle-Stitch,HolePunch,EcoStaple,StapleOnDemand
SUPPORTED MEDIA TYPESMulti-PurposeTray: Thin,Plain,Recycled,Color,Heavy,Coated,Tracing,Bond,Transparency,Label,Pre-punched,Letterhead,Tab,Envelope
PaperCassette: Thin,Plain,Recycled,Color,Heavy,Bond,Transparency,Pre-punched,Letterhead,Envelope1

SUPPORTED MEDIA SIZES

UpperCassette: Letter,Executive,Statement-R,Envelope[No.10(COM10),DL,ISO-C5],CustomSize(3-7/8"x5-7/8"to11-3/4"x8-1/2")
LowerCassette: 12"x18",11"x17",Legal,Letter,Letter-R,Executive,Statement-R,Envelope[No.10(COM10),Monarch,DL,ISO-C5],CustomSize(3-7/8"x7-1/8"to12"x18")
Multi-PurposeTray: 12"x18",11"x17",Legal,Letter,Letter-R,Executive,Statement,Statement-R,Envelope[No.10(COM10),Monarch,DL,ISO-C5],EnvelopeCustomSize(3-7/8"x3-7/8"to12-5/8"x18"),CustomSize/FreeSize(3-7/8"x5-1/2"to12-5/8"x18")
SUPPORTED MEDIA WEIGHTSCassettes: 14lb.Bondto140lb.Index(52to256g/m2)
Multi-PurposeTray: 14lb.Bondto110lb.Cover(52to300g/m2)
Duplexing:14lb.Bondto80lb.Cover(52to220g/m2)
PRINT/COPY SPEED Upto60ppm(Letter),Upto36ppm(Letter-R),
Upto34ppm(Legal),Upto32ppm(11"x17")
WARM-UP TIMEFromPowerOn: Approx.10Seconds2
FromSleepMode: Approx.10Seconds3
QuickStartupMode: Approx.4Seconds4
DIMENSIONS (W x D x H) 24-3/8"x28-1/2"x36-7/8"(620mmx722mmx937mm)5
INSTALLATION SPACE (W x D x H) Basic: 42-5/8"x45-3/4"(1083mmx1162mm)(RightCoverOpenwithMulti-PurposeTrayextended+CassetteDrawersOpen)
FullyConfigured: 73-1/2"x45-3/4"(1866mmx1162mm)(BookletFinisher-Y1withtheExtensionTrayExtended+PaperDeckUnit-F1+CassetteDrawersOpen)
WEIGHTApprox.280.0lb(127kg)6

PRINT SPECIFICATIONS

PRINT RESOLUTION 1200x1200
STANDARD PAGE DESCRIPTION LANGUAGESUFRII,PCL®6,Adobe®PS®3
SUPPORTED FILE TYPES FOR DIRECT PRINTPDF,TIFF,JPEG,EPS,7XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES ArangeofstandardandoptionalsoftwareandMEAP-basedsolutions(includingAirPrint,Mopria,Universal Print by Microsoft, CanonPRINTBusiness,anduniFLOWOnline)areavailabletoprovideprintingfrommobiledevicesorInternetconnecteddevicesandcloud-basedservicesdependingonyourrequirements.Pleasecontactyoursalesrepresentativeforfurtherinformation.
FONTS PCL: 93Roman,10Bitmapfonts,2OCRfonts,AndaleMonoWTJ/K/S/T(Japanese,Korean,SimplifiedandTraditionalChinese),8BarcodeFonts9
PS: 136Roman
OPERATING SYSTEM 10 UFRII/PS:Windows®7/8.1/10/Server2008/Server2008R2/Server2012/Server2012R2/ Server2016/Server2019,MacOSX(10.10orlater) PCL:Windows®7/8.1/10/Server2008/Server2008R2/Server2012/Server2012R2/ Server2016/Server2019
PPD: Windows®7/8.1/10,MacOSX(10.9orlater)

COPY SPECIFICATIONS

FIRST-COPY-OUT-TIME Approx.2.9secondsorless
COPY RESOLUTION (dpi)600x600
MULTIPLE COPIESUpto9,999
MAGNIFICATION 25%-400%(1%Increments)
PRESET REDUCTION / ENLARGEMENT 25%,50%,64%,73%,78%,100%(1:1),121%,129%,200%,400%

SCAN SPECIFICATIONS

TYPE Single-PassDuplexingAutomaticDocumentFeeder
DOCUMENT FEEDER PAPER CAPACITY Upto200Sheets(20lb.Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES 11"x17",Legal,Letter,Letter-R,Statement,Statement-R,CustomSize:2-3/4"x5-1/2"to12"x17"
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS Single-SidedScanning: 13.3lb.Bondto80lb.Cover(50to220gsm)(BW,CL)
Double-SidedScanning: 13.3lb.Bondto80lb.Cover(50to220gsm)(BW,CL)
PLATEN ACCEPTABLE ORIGINALS Sheet,Book,3-DimensionalObjects
PULL SCAN ColorNetworkScanGear2forbothTwainandWIA
SupportedOS:Windows®7/8.1/10/Server2008/Server2008R2/Server2012/Server2012R2/Server2016
SCAN RESOLUTIONScanforCopy: 600x600
ScanforSend: (Push)600x600(SMB/FTP/WebDAV/ IFAX),(Pull)600x600
ScanforFax: 600x600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES Arangeofsolutionsisavailabletoprovidescanningtocompatiblemobiledevicesandcertaincloud-basedservicesdependingonyourrequirements.
SCAN SPEED (LETTER)Single-SidedScanning: 135/135(300dpi),80/80(600dpi),
Double-SidedScanning: 270/270(300dpi),160/90(600dpi)

SEND SPECIFICATIONS

DESTINATION Standard:E-mail/InternetFAX(SMTP),SMB3.0,FTP,WebDAV,MailBox
Optional: SuperG3FAX,IPFax
ADDRESS BOOK LDAP(2,000)/Local(1,600)/SpeedDial(200)
SEND RESOLUTION Push:Upto600x600
Pull: Upto600x600
COMMUICATION PROTOCOLFile:FTP(TCP/IP),SMB3.0(TCP/IP),WebDAV
Email: SMTP,POP3
FILE FORMAT TIFF,JPEG,PDF(Compact,Searchable,Applypolicy,OptimizeforWeb,PDF/A-1b,Trace&Smooth,Encrypted,DeviceSignature,UserSignature),XPS(Compact,Searchable,DeviceSignature,UserSignature),OfficeOpenXML(PowerPoint,Word)

FAX SPECIFICATIONS

MODEM SPEED SuperG3:33.6Kbps
G3:14.4Kbps
COMPRESSION METHOD MH,MR,MMR,JBIG
RESOLUTION 400x400,200x400,200x200,200x100
SENDING / RECORDING SIZE Statement-Rto11"x17"
FAX MEMORY Upto30,000Pages(2,000jobs)
SPEED DIALSMax.200
GROUP DIALS / DESTINATIONS Max.199Dials
SEQUENTIAL BROADCASTMax.256Addresses
MEMORY BACKUPYes

STORE SPECIFICATIONS

MAIL BOX SIMPLE (NUMBER SUPPORTED)100UserIn-boxes,1MemoryRXIn-box,50ConfidentialFaxIn-boxes,Maximum30,000Pages(2,000jobs)Stored
ADVANCED BOX CommunicationProtocol: SMBorWebDAV
SupportedClientPC: Windows(Windows8.1/10)
ConcurrentConnections(Max.)
SMB: 64
WebDAV: 3
ADVANCED BOX AVAILABLE DISC SPACEApprox.16GB(StandardHDD)
Approx.480GB(WithOptional1TBHDD)

SECURITY SPECIFICATIONS

AUTHENTICATIONStandard: UniversalLoginManager,uniFLOWOnlineExpress,11UserAuthentication,DepartmentIDAuthentication,AccessManagementSystem,DeviceandFunctionLevelLog-in
Optional:uniFLOW
DATA Standard: TrustedPlatformModule(TPM),HardDiskPasswordLock,HardDiskDriveErase,MailBoxPasswordProtection,HardDiskDriveEncryption(FIPS140-2Validated),VerifySystematStartup,McAfeeEmbeddedControl
Optional:HardDiskDriveMirroring,IEEE2600.2CommonCriteriaCertification,DataLossPrevention(RequiresuniFLOW)
NETWORKStandard:EncryptedSecurePrint,IP/MacAddressFiltering,IPsec,TLSEncryptedCommunication(v1.0/1.1/1.2/1.3),SNMPV3.0,IEEE802.1X,IPv6,SMTPAuthentication,POPAuthenticationbeforeSMTP,S/MIME,SIEMIntegration
DOCUMENTStandard:SecureWatermark,SecurePrint,AdobeLiveCycle®RightsManagementES2.5Integration,EncryptedPDF,EncryptedSecurePrint,DigitalSignature UserSignature

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENTTemperature: 50to86ºF
Humidity:20to80%RH(RelativeHumidity)
POWER REQUIREMENTS 110-127V,60Hz,11.5A
POWER CONSUMPTION Maximum:Approx.1,800W
Standby:Approx.55.3W12
SleepMode:Approx.0.8W13
TypicalElectricityConsumption(TEC)Rating14 0.83kWh
STANDARDS ENERGYSTAR®Certified
RatedEPEAT®Gold

CONSUMABLES

TONER

GPR-55 Toner Black

TONER YIELD (ESTIMATED @ 6% COVERAGE)

Black: 57,500 Images

FOOTNOTES

  1. EnvelopeFeederAttachment(standard)isrequired.
  2. Timefromdevicepower-onuntilcopyready(notprintreservation).
  3. TimefromexitingSleepmodetowhenprintingisoperational.
  4. Timefromdevicepower-ontowhenthecopyiconappearsandisenabledtooperateonthetouchpaneldisplay.
  5. IncludesmainunitandeitherCassetteFeedingUnit-AM1,HighCapacityCassetteFeedingUnit-A1,orCabinetType-N.
  6. Includesmainunit,consumables,andCassetteFeedingUnit-AM1.
  7. EPScanbeprinteddirectlyonlyfromtheRemoteUserInterface.
  8. RequirestheoptionalPCLInternationalFontSet-A1.
  9. RequirestheoptionalBarcodePrinterKit-D1.
  10. Otheroperatingsystemsandenvironments,includingAS/400,UNIX,Linux,andCitrixmaybesupported.Someofthesesolutionsarechargeable.SAPDeviceTypesareavailableviatheSAPMarketPlace.Formoreinformation,contactyoursalesrepresentative.
  11. Nochargeforthissolution;however,activationisrequired.
  12. ReferenceValue(measuredoneunit).
  13. 0.8WSleepmodenotavailableinallcircumstancesduetocertainsettings.
  14. BasedonENERGYSTARProductSpecificationforImagingEquipmentVersion3.0.
