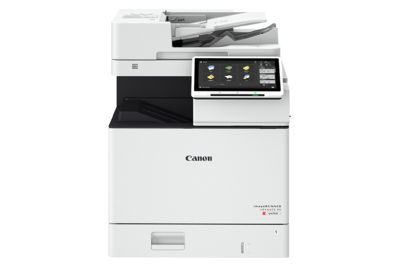

imageRUNNER ADVANCE DX C477iF / C477iFZ

MAIN UNIT

TYPE Color Laser Multifunctional
CORE FUNCTIONSPrint, Copy, Scan, Send, Store, Fax
PROCESSOR 1.75GHz Dual Core Processor
CONTROL PANEL10.1" TFT LCD WSVGA Color Touch-panel
MEMORY4.0 GB RAM
HARD DISK DRIVE250 GB
INTERFACE CONNECTION Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy
Others
Standard: USB 2.0 (Host) x 2, USB 3.0 x1 (Host), USB 2.0 x1 (Device)
Optional: Copy Control Interface

PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard: 650 Sheets
Maximum: 2,300 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)Standard: 550-sheet Paper Cassette, 100-sheet Multi-Purpose Tray
Optional: 1,650-sheet Paper Cassette (Cassette Feeding Unit-AT1) 550-sheet Paper Cassette (Cassette Feeding Unit-AS-1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)Standard Model: 400 Sheets
Finisher Model: 900 Sheets (400 sheets: base tray, 400 sheets: upper tray, 100 sheets: lower tray)
FINISHING CAPABILITIES Standard: Collate, Group
Finisher: Collate, Group, Offset, Staple
SUPPORTED MEDIA TYPES Multi-Purpose Tray: Thin, Plain, Recycled, Heavy, Color, Bond, Envelope
Cassette: Thin, Plain, Recycled, Heavy, Color, Label, Bond

SUPPORTED MEDIA SIZES

Multi-Purpose Tray: Legal, Letter, Executive, Statement, Envelopes [No.10 (COM10), Monarch, DL, ISO-C5], Custom size: 3" x 5" to 8-1/2" x 14" (76.2 x 127.0 mm to 216.0 x 355.6 mm)
Cassette: Legal, Letter, Executive, Statement, Custom Size: 4" x 5-7/8" to 8-1/2" x 14" (101.6 x 148.0 mm to 216.0 x 355.6 mm)
SUPPORTED MEDIA WEIGHTSCassettes: 16 lb. Bond to 60 lb. Cover (60 to 163 g/m2)
Multi-Purpose Tray: 16 lb. Bond to 79 lb. Cover (60 to 216 g/m2)
Duplex: 16 lb. Bond to 60 lb. Cover (60 to 163 g/m2)
PRINT/COPY SPEED (BW AND COLOR) Up to 50 (Letter), Up to 39 (Legal)
WARM-UP TIMEFrom Power On: Approx. 10 Seconds1
From Sleep Mode: Approx. 10 Seconds2
Quick Startup Mode: Approx. 4 Seconds3
DIMENSIONS (W x D x H)Standard Model: 20-1/2" x 25-1/4" x 26-3/8" (521 mm x 642 mm x 668 mm)
Finisher Model: 20-1/2" x 25-1/4" x 34" (521 mm x 642 mm x 864 mm)
INSTALLATION SPACE (W x D x H) 37-3/8" x 33-1/8" (950 mm x 840 mm) (with Left Cartridge Door Open + Right Door Open + the Cassette Drawer Open)
WEIGHT4Standard Model: Approx. 101.4 lb. (46 kg)
Finisher Model: Approx. 121.3 lb. (55 kg)

PRINT SPECIFICATIONS

PRINT RESOLUTION1200 x 600, 600 x 600
STANDARD PAGE DESCRIPTION LANGUAGESUFR II, PCL6, Adobe® PostScript® 3™
DIRECT PRINTAvailable from USB, Advanced Box, Remote UI, and Web Access
SUPPORTED FILESPDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Universal Print by Microsoft, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or Internetconnected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS PCL: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andale Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),5 Barcode Fonts6
PS: 136 Roman
OPERATING SYSTEM 7 UFRII/PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016/Server 2019, Mac OS X (10.10 or later) PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016/Server 2019
PPD: Windows® 7/8.1/10, Mac OS X (10.9 or later)

COPY SPECIFICATIONS

FIRST-COPY-OUT-TIME As fast as 5.1/5.8 seconds
COPY RESOLUTION (dpi)600 x 600
MULTIPLE COPIESUp to 9,999
MAGNIFICATION 25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT 25%, 50%, 64%, 78%, 100% (1:1), 129%, 200%, 400%

SCAN SPECIFICATIONS

TYPE Single-Pass Duplexing Automatic Document Feeder8
DOCUMENT FEEDER PAPER CAPACITY Up to 100 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES Legal, Letter, Statement, Custom Size: 1-7/8" x 5" to 8-1/2" x 14" (48.0 mm x 128.0 mm to 216.0 mm x 355.6 mm), Business Card: 1-7/8" x 3-3/8" to 2-1/8" x 3-5/8" (48.0 mm x 85.0 mm to 55.0 mm x 91.0 mm)
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS Single-Sided Scanning: 13.3 to 34 lb. Bond (50 to 128 gsm) (BW); 17 to 34 lb. Bond (64 to 128 gsm) (CL)
Double-Sided Scanning: 13.3 to 34 lb. Bond (50 to 128 gsm) (BW); 17 to 34 lb. Bond (64 to 128 gsm) (CL)
Business Card: 21.3 lb. Bond to 80 lb. Cover (80 to 220 gsm)
PLATEN ACCEPTABLE ORIGINALS Sheet, Book, 3-Dimensional Objects
PULL SCAN Color Network ScanGear2 for both Twain and WIA
Supported OS: Windows® 7/8.1/10/Server 2008/ Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016
SCAN RESOLUTION (dpi) Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/ IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.
SCAN SPEED (LETTER)Send: Automatic Color Select "OFF" (300 x 300 dpi): Single-Sided Scanning: 100 ipm Double-Sided Scanning: 200 ipm Automatic Color Select "ON" (300 x 300 dpi): Single-Sided Scanning: 50 ipm Double-Sided Scanning:100 ipm Copy: Scan Speed Priority (300 x 600 dpi): Single-Sided Scanning: 50 ipm Double-Sided Scanning: 100 ipm Image Quality Priority (600 x 600 dpi): Single-Sided Scanning: 30 ipm Double-Sided Scanning: 50 ipm

SEND SPECIFICATIONS

DESTINATION Standard: Email/Internet Fax (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax
Optional: IP Fax
ADDRESS BOOK LDAP (2,000)/Local (1,600)/Speed Dial (200)
SEND RESOLUTION Push: Up to 600 x 600
Pull: Up to 600 x 600
COMMUICATION PROTOCOLFile: FTP (TCP/IP), SMB v3.0, WebDAV
Email: SMTP, POP
FILE FORMAT TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

FAX SPECIFICATIONS

MAXIMUM NUMBER OF CONNECTION LINES 1
MODEM SPEED Super G3: 33.6 Kbps
G3: 14.4 Kbps
COMPRESSION METHOD MH, MR, MMR, JBIG
RESOLUTION 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
SENDING / RECORDING SIZE Statement to Legal
FAX MEMORY Up to 30,000 Pages (2,000 jobs)
SPEED DIALSMax. 200
GROUP DIALS / DESTINATIONS Max. 199 Dials
SEQUENTIAL BROADCASTMax. 256 Addresses
MEMORY BACKUPYes

STORE SPECIFICATIONS

MAIL BOX SIMPLE (NUMBER SUPPORTED)100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 10,000 Pages (2,000 jobs) Stored
ADVANCED BOX Communication Protocol: SMB or WebDAV
Supported Client PC: Windows 8.1/10
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACEApprox. 16 GB

SECURITY SPECIFICATIONS

AUTHENTICATIONStandard: Universal Login Manager (Device and Function Level Log-in), uniFLOW Online Express,9 User Authentication, Department ID Authentication, Access Management System
Optional: uniFLOW
DATA Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control
Optional: IE EE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORKStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
DOCUMENTStandard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signatures, Secure Watermark

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENTTemperature: 50 to 86 ºF
Humidity: 20 to 80 % RH (Relative Humidity)
POWER REQUIREMENTS 110-127V AC 60 Hz, 8.4 A
PLUG (MAIN UNIT) NEMA 5-15P
POWER CONSUMPTIONMaximum: Approx. 1,500 W
Standby: Approx. 54.3 W10
Sleep Mode: Approx. 1.0 W11
Typical Electricity Consumption (TEC) Rating12 0.54 kWh
STANDARDSENERGY STAR® Certified
Rated EPEAT® Gold

CONSUMABLES

TONER

TONER T04 BK/C/M/Y13

TONER YIELD (ESTIMATED @ 5% COVERAGE)

TONER T04 BK: 33,000 Pages14
TONER T04 C/M/Y: 27,500 Pages14

FOOTNOTES

  1. Time from device power-on until copy ready (not print reservation).
  2. Time from exiting Sleep mode to when printing is operational.
  3. Time from device power-on to when copy jobs can be programmed.
  4. Includes consumables.
  5. Requires the optional PCL International Font Set-A1.
  6. Requires the optional Barcode Printer Kit-D1.
  7. Other operating systems and environments, including AS/400, UNIX, Linux, and Citrix, may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.
  8. Multi-Sheet Feed Detector Supported.
  9. No charge for this solution; however, activation is required.
  10. Reference value (measured one unit).
  11. 0.8 W Sleep mode not available in all circumstances due to certain settings.
  12. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
  13. Toner T04L also available for BK and Color (C, M, Y). Yield is BK 11,000 images and Color 9,000 images.
  14. Toner Cartridge yield in accordance with ISO/IEC 19798.
