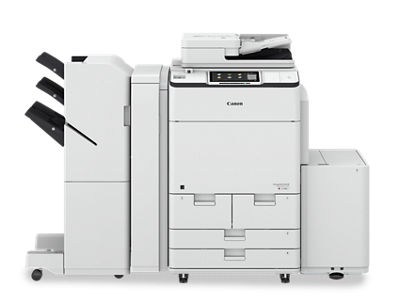

imageRUNNER ADVANCE DX C7770i

MAIN UNIT

TYPE Color Laser Multifunctional
CORE FUNCTIONSStandard: Print, Copy, Scan, Send, Store
Optional: Fax
PROCESSOR Canon Dual Custom Processor (Shared)
CONTROL PANELStandard: 10.1" TFT LCD WSVGA Color Touch-panel
Optional: 10.4" TFT LCD WSVGA Color Upright-panel
MEMORY4.0 GB RAM
HARD DISK DRIVEStandard: 250 GB/Maximum: 1 TB
PRINT RESOLUTION 2400 dpi x 2400 dpi
INTERFACE CONNECTION Network
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: Bluetooth Low Energy
Others
Standard: USB 2.0 (Host) x 1,USB 3.0 (Host)x 1, USB 2.0 (Device) x 1
Optional: Copy Control Interface

PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard: 3,550 Sheets
Maximum: 9,300 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)Standard: Two 1,100-sheet Paper Drawers, Two 550-sheet Paper Cassettes, 250-sheet Multi-purpose Tray
Optional: 3,660-sheet Paper Deck (Paper Deck Unit-E1), 3,660-sheet Paper Deck (POD Deck Lite-C1), 6,000-sheet Paper Deck (MultiDrawer Paper Deck-C1)
Maximum: 9,300 Sheets (With Multi-Drawer Paper Deck-C1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)250 Sheets (with Copy Tray-R2)
4,250 Sheets (with Staple Finisher-X1 or Booklet Finisher-X1)
FINISHING CAPABILITIESWith Finishers: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming
SUPPORTED MEDIA TYPESMulti-purpose tray:
Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
Paper Decks: Thin, Plain, Recycled, Color, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead
Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab, Envelope1

SUPPORTED MEDIA SIZES

Multi-purpose Tray:
Standard size: 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size/Free Size: 4" x 5-7/8" to 13" x 19-1/4", Envelope: COM10 No.10, Monarch, DL, ISO-C5, Envelope Custom Size: 3-1-/2" x 5-7/8" to 13" x 19-1/4"
Paper Decks: Letter
Paper Cassettes: 13" x 19", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size: 5-1/2" x 7-1/8" to 13" x 19-1/4", Envelope: COM10 No.10, Monarch, DL, ISO-C5, Envelope Custom Size : 3-7/8" x 5-7/8" to 13" x 19-1/4"
SUPPORTED MEDIA WEIGHTSPaper Drawers: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
Paper Cassettes:14 lb. Bond to 140 lb. Index (52 to 256 g/m2)
Multi-purpose Tray: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2)
Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
PRINT/COPY SPEED (BW AND COLOR) Up to 70/65 ppm (Letter); Up to 52/48 ppm (Letter-R); Up to 41/38 ppm (Legal); Up to 35/32 ppm (11" x 17")
WARM-UP TIMEFrom Power On: Approx. 30 Seconds2
Quick Startup Mode: Approx. 4 Seconds3
From Sleep Mode: 30 Seconds or Less4
DIMENSIONS (W x D x H)27-1/8" x 36-7/8" x 46-5/8" (689 mm x 937 mm x 1,185 mm)
INSTALLATION SPACE (W x D x H) Basic: 79-3/4" x 60" (2,026 mm x 1,524 mm) (with front cover open + Multi-purpose tray/upper-right cover open + Buffer Pass+ Booklet Finisher-AC1/extension tray and rotary tray extended)
Fully Configured: 150-3/8" x 60" (3,818 mm x 1,524 mm) (with front door open + Multi-Drawer Paper Deck-C1 + Buffer Pass + Document Insertion Unit-N1 + Multi Function Professional Puncher-B1 + Paper Folding Unit-J1+ Booklet Finisher-X1)
WEIGHTApprox. 562.2 lb. (255 kg)5

PRINT SPECIFICATIONS

DATA PROCESSING RESOLUTION (dpi)2400 x 2400
STANDARD PAGE DESCRIPTION LANGUAGESUFR II, PCL®6, Adobe® PS® 3
SUPPORTED FILESPDF, TIFF, JPEG, EPS,6 XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Universal Print by Microsoft, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),7 Barcode Fonts8
PS Fonts: 136 Roman
OPERATING SYSTEM 9 UFR II/PS: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X(10.10 or later)
PCL: Windows 7/8.1/10/Server2008/Server2008 R2/Server2012/Server2012 R2/ Server2016/Server2019
PPD: Windows 7/8.1/10, Mac OS X(10.9 or later)

COPY SPECIFICATIONS

FIRST-COPY-OUT-TIME As fast as 4.8 seconds (BW)/ 5.9 seconds (Color)
COPY RESOLUTION (dpi)600 x 600
MULTIPLE COPIESUp to 9,999
MAGNIFICATION 25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT 25%, 50%, 64%, 73%, 78%, 100%(1:1), 121%, 129%, 200%, 400%

SCAN SPECIFICATIONS

TYPE Single-pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY 200 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2-3/4" x 5-1/2" to 12"x17"
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS Single-sided/Double-sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm)
PLATEN ACCEPTABLE ORIGINALS Sheet, Book, 3-Dimensional Objects
PULL SCAN Color Network ScanGear2 for both Twain and WIA
Supported OS: Windows/7/8.1/10 Server 2008/Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)Single-sided Scanning BW/Color: 135/135 ipm (300 dpi), 80/80 ipm (600 dpi)
Double-sided Scanning BW/Color: 270/270 ipm (300 dpi), 160/90 ipm (600 dpi)

SEND SPECIFICATIONS

DESTINATION Standard: E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
ADDRESS BOOK LDAP (2,000)/Local (1,600)/Speed dial (200)
SEND RESOLUTION Push: Up to 600 x 600
Pull: Up to 600 x 600
COMMUICATION PROTOCOLFile: FTP (TCP/IP), SMB v3.0, WebDAV
Email: SMTP, POP3
FILE FORMAT Standard: TIFF, JPEG, PDF (Limited Color, Compact, Searchable, Apply Policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

FAX SPECIFICATIONS

MAXIMUM NUMBER OF LINES 4
MODEM SPEED Super G3: 33.6 Kbps
G3: 14.4 Kbps
COMPRESSION METHOD MH, MR, MMR, JBIG
RESOLUTION 400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE Statement-R to 11" x 17"
FAX MEMORY Up to 30,000 Pages (2,000 Jobs)
SPEED DIALSMax. 200
GROUP DIALS / DESTINATIONS Max. 199 Dials
SEQUENTIAL BROADCASTMax. 256 Addresses
MEMORY BACKUPYes

STORE SPECIFICATIONS

MAIL BOX SIMPLE (NUMBER SUPPORTED)100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 10,000 Pages (2,000 Jobs) Stored
ADVANCED BOX Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 8.1/10)
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3
ADVANCED BOX AVAILABLE DISC SPACEApprox. 16 GB (Standard HDD)/Approx. 480 GB

SECURITY SPECIFICATIONS

AUTHENTICATIONStandard: Universal Login Manager, uniFLOW Online Express,10 User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in
Optional: uniFLOW
DATA Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control
Optional: Hard Disk Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORKStandard: Encrypted Secure Print,IP/Mac Address Filtering, IPsec, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
DOCUMENTStandard: Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signature

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENTTemperature: 50 to 86 ºF
Humidity: 20 to 80% RH (Relative Humidity)
POWER REQUIREMENTS 110-127 V AC, 60 Hz,16 A
POWER CONSUMPTIONMaximum: Approx. 2,000 W
Standby: Approx. 119.2 W11
Sleep Mode: Approx. 0.9 W12
Typical Electricity Consumption (TEC) Rating13 1.23 kWh
STANDARDSENERGY STAR® Certified
Rated EPEAT® Gold

CONSUMABLES

TONER

GPR-56 Toner

TONER YIELD (ESTIMATED @ 5% COVERAGE)

Black: 82,000 Images
Color (C,M,Y): 66,500 Images

FOOTNOTES

  1. Envelope Attachment-F1 required.
  2. Time from device power-on, until copy ready (not print reservation).
  3. Time from device power on to when the copy icon appears and is enabled to operate on the touch panel display.
  4. Time from exiting Sleep mode to when printing is operational.
  5. Includes main unit, ADF, and consumables.
  6. EPS can be printed directly only from the Remote User Interface.
  7. Requires the optional PCL International Font Set-A1.
  8. Requires the optional Barcode Printer Kit-D1.
  9. Other operating systems and environments including AS/400, UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.
  10. No charge for this solution; however activation is required.
  11. Reference Value: measured one unit.
  12. 0.9 W Sleep mode is not available in all circumstances due to certain settings.
  13. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
