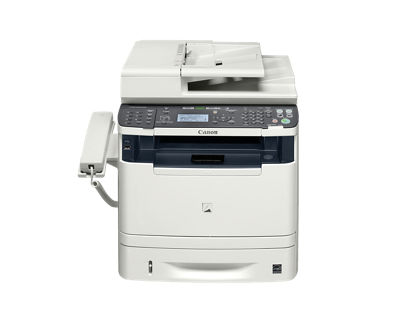

LASER CLASS 650i


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 11.13.14
File Size 4.07 MB
Date 11.13.14
File Size 16.9 MB
Date 11.13.14
File Size 11.5 MB

SETUP & TROUBLESHOOTING

PRODUCT INFO

Type Desktop Facsimile Transceiver Printing Method: Monochrome Laser, RAPID Fusing System

Paper Capacity

Standard 250-sheet Cassette
50-sheet Stack Bypass
Optional: 500-sheet Paper Cassette Feeder
Maximum 800 Sheets
Paper Weight Cassette 1/2: 16 lb. Bond to 23 lb. Bond (60 to 89 g/m²)
Bypass: 16 lb. Bond to 60 lb. Cover (60 to 163 g/m²)
Paper Type Cassette 1/2: Plain, Heavy 1, Recycled, Color
Plain, Heavy 1, Heavy 2, Recycled, Color, Transparency, Label, Index Card, Envelopes
Output Tray Capacity Approx. 150 Sheets (20 lb. Bond)
Recording Paper Size Letter/Legal
Duplex Standard: Automatic Trayless Supported Functions: Send, Copy, Print, Fax (TX/RX)
Warm-Up Time From Power Off: 11 Seconds or Less
From Sleep Mode: 5 Seconds or Less

Dimensions (H x L x W)

Main Unit 17" x 18-5/8" x 18-5/8" (431mm x 473mm x 473mm)
With Cassette 22-3/8" x 18-5/8" x 18-5/8" (569mm x 473mm x 473mm)

Installation Space (W x D)

Main Unit 31-3/8" x 26-1/2" x 50-3/8" (795mm x 672mm x 1279mm)
With Cassette 36-3/4" x 26-1/2" x 50-3/8" (933mm x 672mm x 1279mm)
Weight (with cartridge): Approx. 42.8 lb.
Toner Cartridge GPR-41
Cartridge Average Yield Black (Starter): 2,100 Standard Pages†
Estimated Toner Yield: Black: 6,400 Copies/Cartridge (Yields are in accordance with ISO/IEC 19752)

Power Consumption

Power Source 120-127V 60HzPlug: NEMA 5-15P
Max. 1,100W
Standby 9W
Sleep 2.3W

Environmental Conditions

Temperature 50°F to 86°F
Humidity 20% to 80% RH (no condensation)
Memory Backup 24 Hours Scanning Scan Method: Duplexing Automatic Document Feeder (DADF)/Platen
Sensor Type: Color Contact Image Sensor
Original Size: Platen: Up to 8-1/2" x 11"
DADF Maximum: 8-1/2" x 14" (215.9mm x 355.6mm)
DADF Minimum: 5-1/8" x 5-1/2" (129mm x 139.7mm)
DADF Paper Capacity (20 lb.): Up to 50 Sheets (Letter)
Scan Speed: (Letter, Simplex, 300 dpi x 300 dpi)
BW: 29 ipm
Color: 10 ipm
Halftones: 256 Gradations
Scan Resolution (Max.): 600 x 600 dpi (Optical) 9600 x 9600 dpi (Interpolated, MF Toolbox)
Pull Scan: USB and Network (TWAIN, WIA)
Push Scan (to PC): Method: USB and Network
File Formats: PDF (Compact), PDF, JPEG, TIFF, BMP, PNGSecurity: Secure Print, IPv6, IEEE 802.1x, WEP, WPA, WPS Simple Setup, SNMPv3, Bonjour, IP Block, MAC Address Block, Memory Lock Reception, Department ID, Confirm Fax Number, Restrict Recall, Restrict Sequential Broadcast, Restrict Destinations, Restrict PC Fax, Hide Job History, Restrict USB Ports
Applicable Line Public Switched Telephone Network*Maximum Number of Lines: 1
Data Compression System MH, MR, MMR, JBIG
Modem Speed 33.6 Kbps Super G3 with Automatic Fallback
Transmission Speed Approx. 3 Seconds Per Page**Duplex Faxing: Transmit and Receive Fax Resolutions (dpi): 400 x 400, 200 x 400, 200 x 200, 200 x 100

Fax Resolution

Memory Transmission/Reception Max, TX Memory Jobs: 10 / Max, RX Memory Jobs: 30
Backup: Up to 24 Hours
Dialing One-Touch Keys: 19 Destinations
Coded Dialing: 181 Destinations
Group Dial: 199 Destinations
Sequential Dial: 210 Destinations
Additional Fax Features Memory Lock Reception; Manual Sending; Toner Save Mode; Fax Forward to E-mail/SMB; Address Book Dialing; Regular Dialing (with numeric keys); Automatic Redialing (up to 15 attempts); Manual Redialing; Automatic Reception; Remote Reception by Telephone; Send Results Report; Receive Results Report; Transmission Management Report; PC Faxing Handset: Standard
Copy Speed (BW; Letter): Up to 35 ppm Display 5-Line with Scrolling Text/Animations
Solution Keys Secure Print, Eco-Copy, Scan to PC1, Scan to PC2
Other 19 One-Touch Keys, Energy Saver Key Memory: Standard/Maximum: 256MBNetwork Interface Connection: 10Base-T/100Base-TX (RJ-45), Wireless LAN (b/g/n)Other Interface: USB 2.0 Hi-Speed (Device) x1, (Host) x1
Copy Output Resolution 300 x 600 dpi (Text/Photo)
600 x 600 dpi [Text/Photo (Quality), Photo, Text]
Halftones 256 Gradations Multiple Copies: 1-99 Copies
First-Copy Time (Letter): 8 Seconds or Less Copy Features(Additional): Eco-Copy Mode, Toner Save Mode, Magnification (Manual Zoom: 25-400%; 9 Preset Ratios), N-on-1, Density Adjustment, Auto Noise Reduction, ID Card Copy Mode, Frame Erase, Mode Memory, Sharpness Adjustment
Print Speed 6 Seconds or Less ***
Supported PDL UFR II LT, PCL 5e/6, PostScript 3 Emulation
Interface PCL 5e/6; PostScript 3 Emulation; UFR II LT: Windows® (XP/Vista®/7), Windows Server (2003, 2008, 2008 R2/ Small Business Server 2011), Macintosh® (OS X 10.5.8 or later) (UFR II LT, PS only)USB: PCL 5e/6; PostScript 3 Emulation; UFR II LT: Windows (XP/Vista/7), Macintosh (OS X 10.5.8 or later) (UFR II LT, PS only)Additional Print Features: Standard Duplex Printing, Auto Paper Select (A4 to Letter), Secure Print, USB Memory Print (JPEG, TIFF), Booklet Printing, Watermark, Poster Printing, File Combination, Toner Save Mode
Print Resolution 600 x 600 dpi; 1200 x 600 dpi equivalent
Sending Methods E-mail (SMTP), File Server (SMB), USB Memory
Color Mode Color, BW

Communication Protocol

E-mail SMTP
File Server SMB (TCP/IP)

Data Formats

E-mail PDF (Compact), PDF
File Server File Server/USB Memory: PDF (Compact), PDF, JPEG, TIFF BMPs, PNGs
Paper Feeder Unit PF-44 (Optional)Paper Sizes: Legal, Letter, Executive, Custom Sizes (Width: 4" to 8-1/2"; Length: 5-13/16" to 14")
Cassette Capacity: 500 Sheets (20 lb. Bond)
Dimensions (H x W x D): 6-1/2" x 14-1/2" x 17-3/8" (166mm x 390mm x 441mm)
Weight: Approx. 9 lb. (4.1kg)Toner cartridge yield in accordance with ISO/IEC 19752.
* The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem speed or lower. Note that speeds can vary depending on the telephone line conditions.
** Based on ITU-T (ITU Telecommunication Standardization Sector) Standard Chart No.1, JB16 Standard mode.
*** May vary depending on the output environment.
* BMP for Windows only.
** PNG for Mac OS only.
+ Using Windows version of MF Toolbox.
++ Using Mac version of MF Toolbox.
