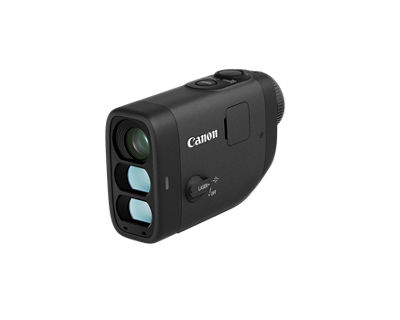

PowerShot GOLF Digital Laser Rangefinder
Get started with these quick links.
Protect your product with CarePAK PLUS. Learn More
Purchase this product's accessories and more. Shop Now
Looking for help with your order? Order help
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
Software Development Kit
The Canon EOS Digital Camera Software Development Kit (EDSDK) and the Camera Control API (CCAPI) are available on select Canon cameras1 and enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote control and communication functionality of the camera. The EDSDK supports USB communication on Windows, Macintosh, and Linux operating systems, while the CCAPI uses Wi-Fi (Ethernet on select cameras) and can be used with almost any OS.
The EDSDK and CCAPI (along with other SDKs and APIs) are provided free of charge and more information can be found at https://www.usa.canon.com/support/sdk.
1. Compatibility list available on Canon Developer Community website
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
| Type | Monocular Camera-equipped Telescopic Laser Rangefinder |
| Measurement Range | Approximately 7.0 800 yds (6.4 732 m) (Range may be limited by object measured or environment) |
| Measurement Accuracy | Less than 100 yds (91 m) +/- 1.0 yd. (0.91 m) 100 yds. (91 m) or more +/- 2.0 yd. (1.83 m) (Straight-line measurement, based on Canon testing standards) |
| Distance Display Increment | 0.5 yds (0.5 m) |
| Measurement Speed | Approx. 0.8 Sec. |
| Measurement Methods/Modes | Slope-adjusted Measurement Straight-line Distance (with [SLOPE] set to [ON]: Horizontal distance +/- difference in elevation with [SLOPE] set to [Off]: Playback function and image delete function are restricted) |
| Slope Sensor | Built-in |
| Continuous Rangefinding | Available (Holding down the measure button halfway fires the laser for approx. 8 sec. after which flagpole-locking detects the target of measurement) |
| Still Photo/Movie Recording | Available (Selecting [Ranging+Photo] from the [Mode] menu enables still/video recording with rangefinder results superimposed over the image |
| Type | 1/3-inch CMOS Sensor |
| Pixels | EFFECTIVE: Up to approx. 11 megapixels TOTAL: approx 13.5 megapixels |
| Aspect Ratio | 4:3 (Horizontal: Vertical) |
| Focal Length | 51.0mm (equivalent to approx. 410mm (35mm equivalent)) |
| Shooting Range | Approx. 4.4 yd (approx. 4 m) to infinity |
| Digital Zoom | Enables approx. 2X magnification |
| Telephoto Magnification | When equivalent to approx. 410mm 6X When equivalent to approx. 820mm 12X (using digital zoom) |
| F-Number | f/3.9 (no aperture control) |
| Type | Lens Shift System - 2-axis correction (pitch/yaw) (Stabilization cannot be deactivated.) |
| Movie Digital IS | Not Available |
| Compatible Media | microSD / microSDHC / microSDXC memory cards * UHS-I Compatible |
| Error Warnings | Displayed in the viewfinder |
| Card formatting | Normal (Logical) Formatting (low-level formatting not available) |
| No Card Warning | Available |
| Shutter Release Without Card | Not Supported |
| Image Recording Format | Compliant with Design rule for Camera File System 2.0 and Exif 2.31 (Time difference information supported) |
| Folder Setting | Folders Created Automatically
(selection of folders on cards not available) |
| File Name Settings | Not supported |
| File Number | Auto Reset (when cards are replaced, the numbering is reset to start from 0001. If the new card already contains images the existing numbering is continued) |
| Format | Container Format: MP4 Video: H.264 / MPEG-4 AVC Audio: MPEG-4 AAC -LC (Stereo) |
| Quality | Full HD 1920x1080 (Movie recording size not adjustable) Lower image quality when recording at equivelant of approx. 820mm due to digital zoom. |
| Frame Rate | When set to NTSC: 30 fps / 24 fps When set to PAL: 25.00 fps |
| Maximum Recording Time per Movie | 59 Seconds |
| Total recording Time Available | 8 GB: Max 33 min. 32 GB: Max 132 min. 128 GB: Max 530 min. |
| Maximum File Size | microSD FAT12/16: Max 2 GB microSDHC FAT32: Max 4 GB microSDXC exFAT: Unlimited |
| Card Performance Requirements | SD Speed Class 6 or Higher |
| Video System | NTSC/PAL |
| Recording Microphone | Built-in Stereo Microphones No external microphone IN terminal provided. |
| White Balance | Auto |
| Type | OLED Color Electronic Viewfinder |
| Size | 0.39 Inch |
| Dot Count | Width: 1024 Dots Height: 768 Dots Total: Approx. 2,360,000 Dots |
| Coverage | Approx. 100% (With eyepoint of approx. 20 mm) |
| Brightness Adjustment | Not supported |
| Electronic Viewfinder Refresh Rate | -59.94 fps |
| Focusing Method | Contrast Detection |
| Continuous AF | Enable / Disable AF is active during movie recording under all settings. |
| Eye Detection | Not supported |
| AF Point Display | Shown in the viewfinder when the shutter button is pressed halfway |
| Focus Confirmation (show in viewfinder) | Green Frame: In Focus Red Frame: Out of Focus |
| Shooting Mode | Autoexposure Shooting (Shooting mode selection not available) |
| Metering Mode | Center-weighted average metering (Metering mode cannot be changed) |
| ISO Speed | Still and Movie recording: Controlled automatically (ISO 100-3200) |
| Exposure Compensation | +/- 3 stops in 1/3-stop increments |
| Exposure Compensation Factors | Shutter Speed, ISO Speed |
| Type (for still and movie recording) | Electronic Shutter, using the image sesnor |
| Shutter Speed | Controlled Automatically (1/8000 to 1/30 Sec.) |
| Drive Mode | Single Shooting |
| Self-Timer | Not Provided |
| Playback Methods | In Electronic Viewfinder On a computer or Smartphone |
| Movie Playback | Play Skip backward (approx. 4 sec.) Previous frame Next Frame Skip Forward (approx. 4 sec.) |
| Erase Images | Select and rease images / all images on card |
| Indicator Lamp | Green Lit/Blinking: Accessing Card Orange Lit: Charging in Progress Orange Off: Charging Completed |
| Slope Function Lamp (Blue) | Blinking: Straight-line distance Off: Straight-line distance / Slope-adjusted distance |
| Display Device | Shown in the electronic viewfinder |
| Description | Rangefinding Shooting Playback Function Settings |
| Display languages | English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukrainian, Norwegian, Swedish, Spanish, Russian, Turkish, Simplified Chinese, Traditional Chinese, Korean, Japanese |
| Firmware Updates | Available |
| Terminal Type | USB Type-C |
| Transmission | Equivalent to Hi-Speed USB (USB 2.0) |
| Applications | For charging the built-in battery and powering the rangefinder * Recognized as a USB device when connected to computers; images on the rangefinder memory card can be browsed and imported. |
| Wi-Fi Connectivity | Not Provided |
| Bluetooth Connectivity | Not Provided |
| Time Zone Settings | Honolulu, Anchorage, Los Angeles, Denver, Chicago, New York, Caracas, New Foundland, São Paulo, Fernando de Noronha, Azores, London, Paris, Cairo, Moscow, Tehran, Dubai, Kabul, Karachi, Delhi, Kathmandu, Dacca, Yangon, Bangkok, Beijing/Singapore, Tokyo/Seoul, Adelaide, Sydney, Solomon Islands, Wellington, Chatham Islands, Samoa |
| Time Difference Setting | Available (in 15-minute Increments) |
| Daylight saving time | Available |
| Date/Time back-up Battery | Same as battery that powers the rangefinder |
| Battery | Built-in rechargeable Lithium-ion battery |
| Rated voltage/Capacity | 3.7 V, 1000 mAH |
| Recharge Cycles | Approx. 300 charging/usage cycles |
| USB Power Source | 5 V 0.5 A or more (5 V 1 A or more recommended) |
| Charging over USB | Supported |
| Power over USB | Supported |
| USB Charging Time | Approx. 2 hr. 30 min. * The charging time required and the amount charged vary depending on ambient temperature and remaining capacity. |
| Number of Still Photos that can be taken | Approx. 200 shots * With a new, fully charged battery at room temperature (73ºF) |
| Time Available for Movie Recording | Approx. 1 hr. 10 min. * With a new, fully charged battery at room temperature (73ºF) |
| Time Available for Image Display | Approx. 1 hr. 40 min. * With a new, fully charged battery at room temperature (73ºF) |
| Battery Check | Battery level automatically checked and indicated in a 4-level display when the unit is powered on. |
| Power Saving Function | Auto Power off: 5 sec. / 10 sec. / 15 sec. Viewfinder off: 1 min. / 3 min. |
| Body Material | Polycarbonate and Stainless Steel |
| Exterior Color | Black |
| Water Resistance | Equivalent to IPX4 * Not dustproof |
| Tripod Socket | Not Provided |
| Dimensions (W) x (H) x (D) | Approx. 1.2 x 2.3 x 3.6 in. (31.0 x 58.9 x 91.2 mm) |
| Weight (including memory card) | Approx. 5.3 oz (151 g) |
| Usable Temperature | 32-104ºF (0-40ºC) |
| Usable Humidity | 10-90% |
