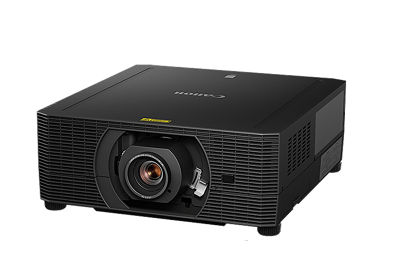

REALiS 4K6021Z


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 01.20.20
File Size 15.24 MB
Date 07.22.19
File Size 604.11 KB

SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Projector Specifications

Imaging Device 0.74", LCOS Panel x3
Native Aspect Ratio 17:9 Approx.
Native Resolution 4096 x 2160
Brightness 6000/3600/2400 Lumens *1*2
Uniformity 80% *4*8
Contrast Ratio 4000:1 (Native)(all white: all black) *3
Digital Keystone V:±20°, H:±20°
Image Size 40" - 600" *4

Optics

F Number, Focal Length F2.1 -F2.4, f=22.6 - 39.79mm *4
Zoom 1.76x *4
Focus Powered *4
Throw Ratio 1.34 -2.35:1 *4

Image Adjustments

Image Modes Standard / Presentation / Dynamic / Photo/sRGB / Video / DICOM SIM / User 1 , 5
Color Adjustment Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Screen Color Correction Normal / Greenboard / Adjust (custom)
Mounting Omnidirectional *6
Lens Shift V: ±73%, H: ±11% (powered) *4
Adjustable Feet Four Locations at bottom. Extension length = 14.6mm , maximum angle of inclination: ±8°

Image Signals

Scanning Frequency H: 18.000kHz - 135.000kHz, V: 23.979Hz - 60.000Hz
Digital PC Input 4096×2160, 3840×2160, 2560×1600, 2560×1440, 2048×1200, 2560×1080, 2048×1080, 1920×1080, WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
Digital Video Input 2160p, 1080p, 1080i, 720p, 576p, 480p
Dot Clock 594.000MHz (Maximum)

Terminals

HDMI Digital PC /Digital Video Input (x2)
Mini Jack Audio Output (Stereo)
Wired Remote Control Connection
Trigger 12V DC (Maximum .35A)
Dsub9 RS-232C
USB type A USB Connection
WiFi IEEE 802.11b, IEEE 802.11g, IEEE 802.11N
RJ-45 HDBaseT | Network (1000BASE-T / 100BASE-TX / 10BASE-T)
Wireless Remote Infrared

Light Source

Type Blue laser diode, yellow phosphor
Life 20,000 hours *7

Rating

Fan Noise 38/33/29dB *2
Power Consumption 620W *2
Standby Power Consumption 1.6/0.25W *5
Power Voltage AC100 - 240V : 50/60 Hz
Operating Temperature 32°F - 113°F, 20%RH - 85%RH
Storage Temperature -4°F - 140°F
Weight 41.8 lbs.
Dimensions W:18.8" x H:7.7" x D:21.4"
