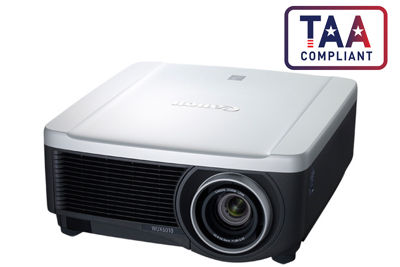

REALiS WUX6010 Pro AV


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.

SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Main Unit Spec



Projector Specifications


Imaging Device
0.71" LCOS Reflective LCD panel x3
Aspect Ratio
16:10
Native Resolution
1920 x 1200 (WUXGA)
Brightness
6000 Lumens (Normal) / 4660 Lumens (Power Saver) *1*3
Contrast
2000:1 *1*4
Digital Keystone (Vertical)
V±20, H±20° *1
Uniformity
88% *1
Zoom
Powered
Focus
Powered
Lens Shift
Motorized



Image Adjustments


Image Mode
Standard / Presentation / Dynamic / Video / Cinema / Photo / sRGB / Vivid Photo / User 1 / User 2 / User 3 / User 4 / User 5
Color Adjustment
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Wall Color Correction
Normal / Greenboard / Adjust (custom)
Mounting
360° projection
Tilt Angle
Bottom Front Feet: 2 places (Max. angles: 6° elevation)



Input Signals


Scanning Frequency
H: 27  , 75 kHz, V: 24 , 60Hz
Analog PC Input
WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
Digital PC Input
WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
Component Video Input
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Digital Video Input
1080p / 1080i / 720p / 576p / 480p
Dot Clock
162MHz or less



Terminals


DVI-I
Digital PC/Analog PC Input
HDMI
Digital PC/Digital Video Input (supports deep color)
Mini Dsub 15
Analog PC/Component Video Input
Mini Jack x3
Audio Input x2, Audio Output x1
Mini Jack x1
Connecting Wired Remote
Dsub9
RS-232C Connection
USB type A
USB Connection
RJ-45
Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)
RJ-45 (HDBaseT)
HDBaseT Input (Image, Audio, Control Signal and Network)



Remote Control


Wireless Remote
Wireless Infrared (supplied) or Wired (optional)



Built-In Sound


Internal Amplifier
5W, Mono



Lamp


Type
340-NSHA lamp
Life
3000 Hours Full Power / 4000 Hours Power Saver
Power
340/264 W



Ratings


Fan Noise
40dB (Full Power) / 36dB (Power Saver) *3
Power Consumption
465W/370 W *3
Standby Power
2.0 , 0.3W *6
Power Voltage
AC 100 , 240V, 50/60 Hz
Operating Temperature
32°F - 104°F (0°C -40°C) (20% RH -85%RH)
Storage Temperature
-22°F - 140°F (-30°C - 60°C)
Dimensions (W x H x D)
W: 14.96”(380 mm), H: 6.69”(170mm), D: 16.92”(430 mm) (including protrusion)
Weight
18.73 lbs.
Projector Warranty
3 Years parts and labor
Lamp Warranty
120 Days



Notes


*1: When using the optional projection lens RS-IL01ST (projection lens sold separately)
*2: Calculated value for 100” image
*3: When the lamp mode is in full power mode/Power Saver mode; value for Power Saver mode is a calculated value thus cannot be guaranteed as specifications
*4: When the Lamp Control function is ON
*5: When the Network Function is ON but Eco Mode OFF
*6: Varies depending on the combination of the HDBaseT and network settings.
