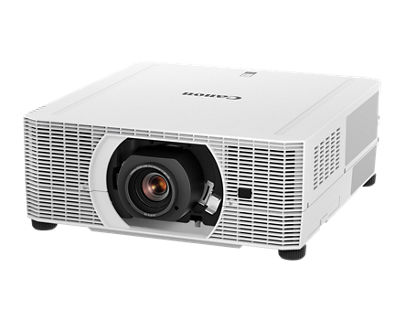

REALiS WUX6700


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 07.19.18
File Size 421.36 KB
Date 01.20.20
File Size 19.25 MB

SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO



Main Unit Spec

Projector Specifications


Imaging Device
0.71, LCOS Panel x3
Native Aspect Ratio
16:10
Native Resolution
1920 x 1200 (WUXGA)
Brightness
6700/5200/4500lm *1*2*3
Uniformity
90% *3
Contrast Ratio
2000:1 *3*4(all white: all black)
Digital Keystone
V: ±20°, H: ±20°
Image Size
40 - 600 *3



Optics


F Number, Focal Length
F1.89 - F2.66 *3
Zoom
1.5x *3
Focus
Powered *3
Throw Ratio
1.49 - 2.24:1 *3
Lens Shift
V:55% / -15%, H:10% / -10% *3



Image Adjustments


Image Modes
Standard, Presentation, Dynamic, Vivid Photo, Video, Cinema, Photo/sRGB, DICOM SIM, User 1 , 5
Color Adjustment
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Screen Color Correction
Normal / Greenboard / Adjust (custom)
Mounting
Ceiling, Table, Rear, Rear Ceiling, Rear Table
Adjustable Feet
4x, Extension Length: 14.6 mm, Maximum angle of inclination: ± 1.8°



Image Signals


Scanning Frequency
H: 15.625kHz , 75kHz, V: 24Hz , 60Hz
HDMI (Digital PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
HDMI (Digital Video Input)
1080P, 1080i, 720P, 576p
DVI-I (Digital PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
DVI-I (Analog PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
Display Port
1080P, 1080I, 720P, 576p, 576i, 480p, 480i *7
Mini Dsub15 (Analog PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
Mini Dsub15 (Component Video Input)
1080P, 1080I, 720P, 576p, 576i, 480p, 480i *7
RJ-45 (HDBaseT Input)
Image, Audio, Control, Network; Equivalent to image and audio of HDMI/DP
RJ-45 (Network Connection)
100BASE-TX, NMPJ screen transfer
USB Type A
JPEG still image (10912x8640)(Maximum pixels)
Dot Clock
162MHz (maximum)



Terminals


DVI-I
Digital PC/ Analog PC Input
HDMI
Digital PC/Digital Video Input
Display Port
Digital PC/Digital Video Input
Mini Dsub15
Analog PC2/Component Video Input
Mini Jack
Stereo Audio
Stereo Audio
Wired Remote Control Connection
Dsub9
RS-232 Connection
USB Type A
USB Connection
WiFi
IEEE 802.11b/g/n
RJ-45
HDBaseT/Network



Remote Control


Wireless Remote
Infrared



Built-In Sound


Internal Speaker
1W



Light Source


Type
Super High Pressure Lamp
Life
3000/4000/3000 *1



Ratings


Fan Noise
37/29/27 dB *1
Power Consumption
386/300/262 W *1
Standby Power Consumption
1.6 , 0.28 W *6
Power Voltage
AC100 - 240 V, 50/60 Hz
Heat Dissipation
1843 BTU/h
Operating Temperature
32°F - 104°F (0°C - 40°C), 20%RH - 85%RH
Storage Temperature
-4°F - 140°F (-20°C - 60°C)
Weight
28.6lbs. (13kg) approx.
Dimensions (W x H x D)
W: 19 (480mm), H: 7.7 (196mm), D: 20 (515 mm)



Notes


*1: Full Power / Power Saver 1 / Power Saver 2
*2: The luminance values for modes other than Full Power are calculated and are not guaranteed as specification
*3: When standard RS-SL01ST projection lens used
*4: When Lamp Control ON
*5: When lens shift mode set to NORMAL
*6: Varies when network and other settings applied
*7: Image signals equivalent to the HDMI terminal
