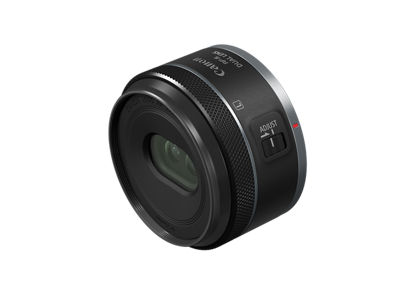

RF-S7.8mm F4 STM DUAL
Get started with these quick links.
Protect your product with CarePAK PLUS. Learn More
Purchase this product's accessories and more. Shop Now
Looking for help with your order? Order help
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
EOS VR Utility Instruction Manual
File Name
VR Recording Guide
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
Focal Length | 7.8mm | ||||||||||
Maximum and Minimum Aperture | f/4.0 f/16 (1/3 stops, 1/2 stops) | ||||||||||
Lens Mount Type | Canon RF Mount; Plastic Mount | ||||||||||
Interpupillary Distance / Baseline Length (Distance between Left and Right Lens Centers) | 11.8mm | ||||||||||
Minimum Focusing Distance | 0.66 ft. (7.9 in.) / 0.15 m | ||||||||||
Maximum Magnification | 0.07x | ||||||||||
Angle of View (Diagonal) | 63° 00' | ||||||||||
Lens Construction (each lens) | 9 elements in 7 groups | ||||||||||
Special Elements (each lens) | Two UD lens elements | ||||||||||
Lens Coating | Super Spectra Coating | ||||||||||
Filter Size Diameter | 58mm screw-type filter | ||||||||||
Rear Mounted Gelatin Filter Holder | Not Supported | ||||||||||
Aperture Blades (each lens) | 7 | ||||||||||
Lens Switches | Left-right focus difference adjustment mode switch | ||||||||||
Dust/Water Resistance | Not Provided | ||||||||||
Focusing System | Gear type STM focusing | ||||||||||
Left/right focus difference adjustment | Provided, user-adjustable using the Control Ring | ||||||||||
Dual Pixel CMOS AF | Provided; Horizontal: approx 30%, Vertical: approx. 46% | ||||||||||
Focus Guide |
|
||||||||||
Full-time Manual Focusing | Both Left and Right lenses support focus guide. | ||||||||||
Control Ring | Video Mode | ||||||||||
IS Mode Selection | Left lens only supports focus guide. | ||||||||||
Optical Image Stabilization | Video Mode with L/R adjustment switch enabled | ||||||||||
Stabilization with in-body IS (EOS R7) | Both Left and Right lenses support focus guide. |
Dimensions | ø2.7" x 1.6" L |
Weight | Approx. 4.6 oz. (131g) |
Lens hood | Not Supported |
Lens Cap | E-58II (bundled) |
Dust Cap | Canon Lens Dust Cap RF (Bundled) |
Lens Case | Canon Lens Case LP1014 (sold separately) |
Extension Tubes | Not compatible |
Close-up Lenses 250D / 500D | Not compatible |
Canon RF Extender 1.4x/2x | Not compatible |
Canon Gelatin Filter Holder III/IV | Not compatible |
Rear Gelatin Filter Holder | Not compatible |
