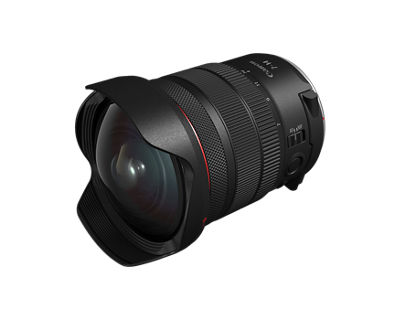

RF7-14mm F2.8-3.5 L Fisheye STM

Get started with these quick links.

DOWNLOADS

<p>Firmware downloads for all operating systems can be found below.</p>
Firmware Results
0 of 0
Results will appear after selecting an Operating System and Version above.
Filter & Sort
Download Type
Language
<p><span><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
Date 02.09.26
File Size 736.71 KB



Software Development Kit

The Canon EOS Digital Camera Software Development Kit (EDSDK) and the Camera Control API (CCAPI) are available on select Canon cameras1 and enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote control and communication functionality of the camera. The EDSDK supports USB communication on Windows, Macintosh, and Linux operating systems, while the CCAPI uses Wi-Fi (Ethernet on select cameras) and can be used with almost any OS.

The EDSDK and CCAPI (along with other SDKs and APIs) are provided free of charge and more information can be found at https://www.usa.canon.com/support/sdk.

1. Compatibility list available on Canon Developer Community website



SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Focal Length 714mm
APS-C sensor cameras zoom range: approx. 8.714mm
C indication on zoom ring indicates widest zoom setting for APS-C where vignetting will not occur (approx. 8.7mm)
Fisheye Image Type Full-frame cameras: circular fisheye (at 7mm); diagonal (full-frame) fisheye image (at 14mm)
APS-C: diagonal (full-frame) fisheye image (at approx. 8.7mm 14mm)
Maximum and minimum aperture f/2.8 f/22 (at 7mm); f/3.5 f/29 (at 14mm)
Lens mount Canon RF mount (metal)
Compatible cameras Canon EOS R-series and RF-compatible Cinema EOS cameras
Minimum focusing distance 5.9 in. / 0.49 ft. / 0.15m
Maximum magnification 0.35x (at 14mm; center of image)
Angle of view (diagonal, full-frame camera) 7mm: 190°
14mm: 180°
Lens construction 16 elements in 11 groups
Special elements (five) Ultra-low Dispersion (UD-glass) elements
(two) Aspheric elements
Lens coatings Super Spectra Coating (SSC)
Air Sphere Coating (ASC), on rear surface of three lens elements
Fluorine Coating (on front lens element)
Floating focus system None
Lens zooming Internal no change in length as lens is zoomed
Filter size (diameter) No front filter
Drop-in slot at rear of lens accepts same drop-in filters as Canon Mount Adapter EFEOS R Canon Clear Drop-in Filter A included with lens
A Drop-in Filter must be used at all times
No rear gel filter holder
Aperture blades 9
Image Stabilization None
Focus drive system STM (stepping motor); Leadscrew type, direct drive
Full-time Manual focusing Yes
Dual Pixel CMOS AF coverage (Horizontal x Vertical) Approx. 100% x 100% (whole area AF, with subject detection active) Approx. 90% x 100% (when manually positioning AF Area)
Control Ring Yes (with click-stops)
Full 360° rotation
54 clicks per revolution
Manual focus ring Yes
AF / MF switch Yes
Iris ring None
Zoom ring Manual zoom ring, covering 714mm
Zoom Limit switch Sliding switch on side of lens (two positions: Off / Limit)
Limit position locks zoom ring at 7mm position (circular fisheye with full-frame camera) or limits zooming from 14mm to C position, immediately above Limit switch (approx. 8.7mm zoom, for diagonal / full-frame fisheye coverage on APS-C sensor cameras)
Off position: full zoom ring rotation possible
Lens Function button Yes (one)
Distance scale None
Distance scale available in viewfinder or LCD screen, in red Shooting Menu: Shooting info display > Lens info display > Focus distance display
Distance limiter switch None
Dust- / weather-resistant construction Yes
Tripod collar on lens None
Maximum outer diameter x Length approx. 3.0 in. Ø x 4.3 in. / 76.5mm Ø x 109.4mm
With Lens Hood EW-76 attached approx. 3.45 in. Ø x 5.2 in. / 87.6mm Ø x 131.7mm
Weight approx. 16.8 oz. / 1.1 lb. / 476g
Lens hood Canon Lens Hood EW-76 (included with lens)
Bayonet mount with locking mechanism; NOT attachable in reverse Vignetting from lens hood:
Full-frame cameras hood intended only at zoom settings near 14mm (tele); vignetting will be visible at shorter zoom settings (remove hood at zoom settings lower than approx. 14mm)
APS-C cameras no vignetting from lens hood, between tele end of zoom and C setting (approx. 8.7mm on zoom ring)
Lens cap Dedicated Canon Lens Cap 714 (included with lens)
Attaches directly to attached Lens Hood EW-76, not to front section of lens (lens hood is required to attach front Lens Cap)
Dust (rear) cap Canon Dust Cap RF (included with lens)
Lens case Canon LP1219 (included with lens)
Extension tubes None
Canon RF Extender 1.4x / 2x Not compatible
Canon Gelatin Filter Holder III / IV Not compatible



EOS System Lens Limited Warranty


The limited warranty set forth below is given by Canon U.S.A., Inc. (Canon U.S.A.) in the United States and Canon Canada Inc., in Canada (herein referred to collectively as "Canon") with respect to the Canon Binoculars and Photographic Lens Products packaged with this Limited Warranty and identified by model number on this limited warranty card (each a "Product")when purchased and used in the United States or Canada.

This Limited Warranty is only effective upon presentation of this warranty card and proof of purchase

A Product, when delivered to you in new condition in its original container, is warranted against defects in materials or workmanship as follows: for a period of one (1) year from the date of original purchase, defective parts or a defective Product returned to Canon, or its authorized service providers, and proven to be defective upon inspection, will be repaired with new or comparable rebuilt parts or exchanged for a refurbished Product, as determined by Canon or the authorized service provider n their sole discretion. Replaced parts and exchanged Products will become the property of Canon.

When returning a Product for warranty service, the shipping charges must be prepaid and the Product should be shipped in its original container, or an equivalent, properly packed to withstand the hazards of shipment and be fully insured. A copy of the warranty card and proof of purchase should be enclosed, as well as a description of the problem (including film samples, where appropriate). Repairs will be made and the Product will be returned, shipped at NO CHARGE, within the country of repair.

This warranty only covers defective materials or workmanship encountered in normal use and service of a Product and does not apply in the following cases:

(a) Loss of or damage due to abuse causing deterioration, mishandling, accident or failure to follow operating instructions.
(b) If a Product is defective as a result of leaking batteries or liquid damage.
(c) Defective materials or workmanship where the defect is due to a Product having been serviced or modified by other than Canon or a Canon authorized service provider.
(d) Malfunction resulting from the use of accessories, attachments, product supplies, parts or devices (including, without limitation, batteries, film, flash attachments and other accessories) with this Canon photographic equipment that do not conform to Canon specifications.
(e) Damage resulting during shipment. (Claim must be presented and examined by the shipper.)
(f) Damage or service resulting from modifications or alterations to a Product in any way (including any alteration or removal of its serial number or identification marks).

NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT TO A PRODUCT SHALL BIND CANON (SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU). CANON SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR PROFITS, INCONVENIENCE, EXPENSE FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR CORRUPTION OF DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, ANY LOSS OF FILM) CAUSED BY THE USE OR MISUSE OF, OR INABILITY TO USE, A PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CANON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST CANON BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY CANON AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF USE OR MISUSE OF, OR INABILITY TO USE, THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF CANON (SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU). THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE PRODUCT, OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT, AND STATES YOUR EXCLUSIVE REMEDY.
