CANON MULTI-CAMERA CONTROL APP

The Wireless Remote Application that Streamlines Multi-camera Workflows for Cinema EOS and Professional Cameras

The free Canon Multi-Camera Control App1 can control multiple Cinema EOS cameras or XF605 camcorders from an iPhone via Wi-Fi. The free app allows for control over recording start and stop, focus, zoom and iris, ND Filters, ISO, Shutter, White Balance, and Custom Picture Profiles all while viewing the image.

  • App enables control and monitoring of multiple cameras.
  • Quick and convenient access to camera settings and a preview of each camera’s video feed.
  • Create up to five camera groups with up to 4 cameras per group.

Supported OS/Languages

  • Supported OS: iOS 16
  • Available for Free on the App Store
  • Supported UI Languages: English and Japanese

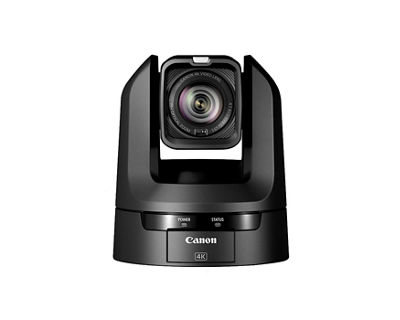

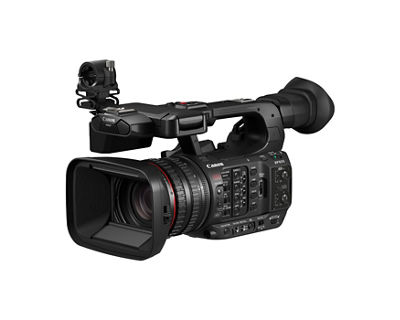

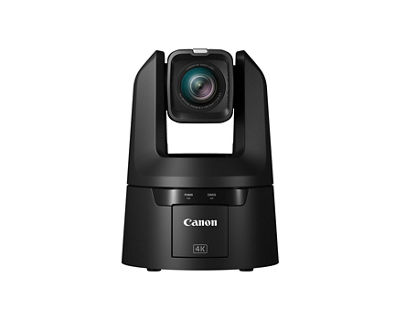

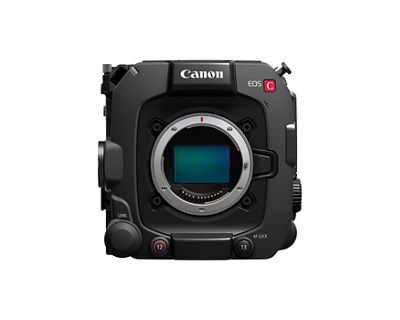

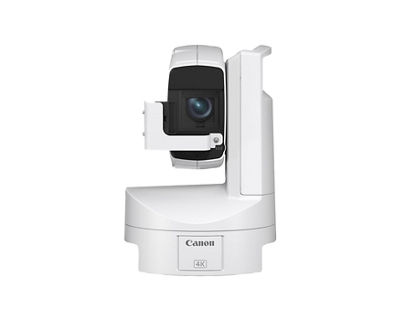

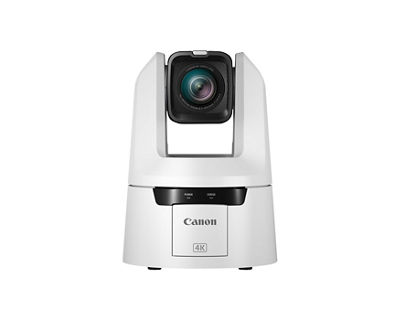

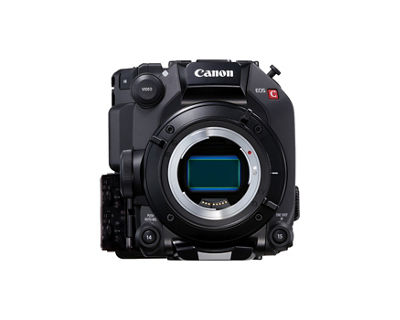

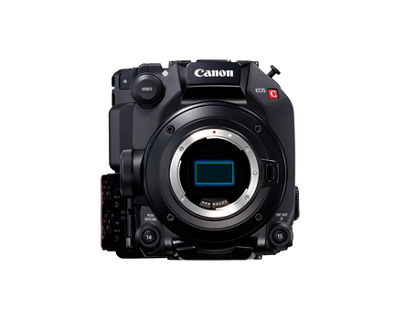

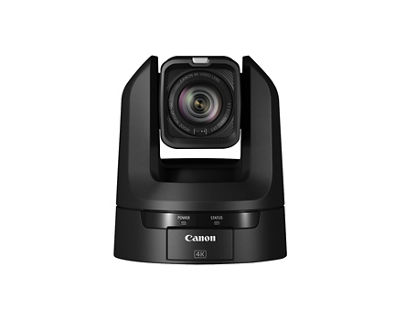

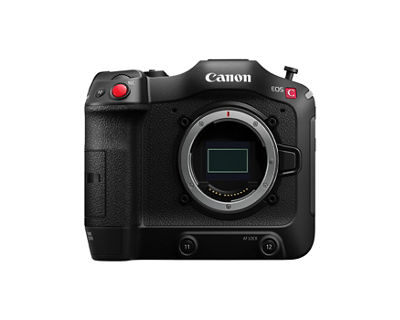

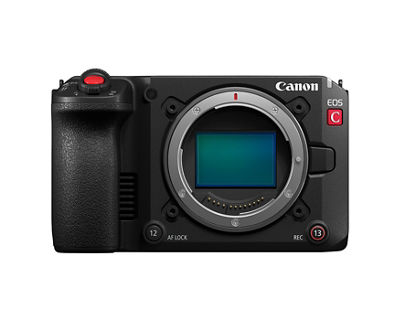

Supported Cameras

Camera Control

For camera operators that are working with multiple live cameras, managing a shoot can be challenging, especially when working alone or with a small crew. The Canon Multi-Camera Control App helps to manage these situations by supporting camera control and preview of live video for up to four cameras simultaneously.

Operators can more easily manage multi-cam shoots with the App as the settings for each camera can be viewed on an intuitive dashboard with frequently used functions easily within reach. Start/Stop Recording, Exposure, ISO/Gain, shutter, iris, focus, Custom Picture Profiles, and other important settings can be viewed and controlled in real-time. Media card status can also be monitored, allowing an operator to keep track of memory usage. The App also supports switching between media slots.

Easily Access:

  • Live Video Preview for Up To Four Cameras
  • Start/Stop Recording Button
  • Battery Life and Media Card Status
  • Camera Setting Dashboard
  • Active Assignable Buttons Saved on the Camera Body

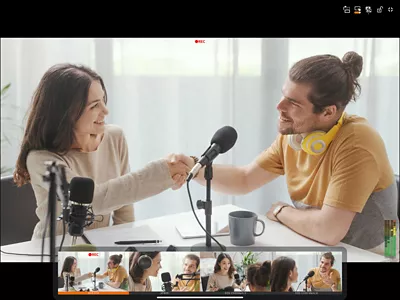

Multi-Camera Control App Demo

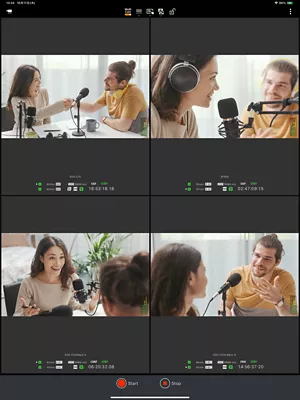

Multi-Screen View Enables Simultaneous Control of Multiple Cameras

With the multi-screen viewing option, up to four cameras can be monitored. Start/Stop recording for all four cameras can be initiated at the same time.

With Simultaneous Control Enabled:

  • Tap "Start" to start recording on all cameras at once
  • Tap "Stop" to stop recording on all cameras at once

Note: This provides simultaneous control of all cameras.

Multi-Camera Control App Demo

Status Display:

  • Live View
  • Audio Level Meter
  • Camera Name (Nickname)
  • Record Status
  • Time Code
  • Power Remaining
  • Media Cards

Multi-Camera Control App Demo

The App’s Live View can also be adjusted for viewing larger or smaller images from the cameras according to preference.

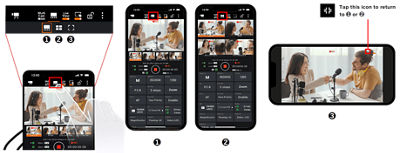

Tap to Switch Displays

Multi-Camera Control - Switch Displays Demo

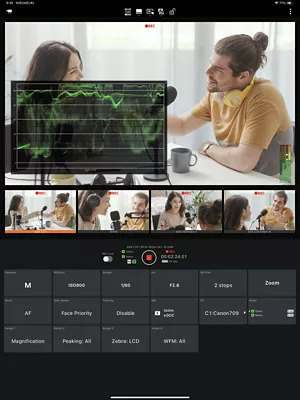

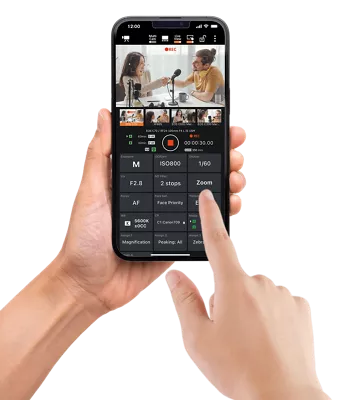

Camera Status and Camera Controls

Scroll through the Canon Multi-Camera Control App to quickly check camera status and access camera settings.

Screen Transition Controls (Jump to Function Screen After Pressing Button):
  • Shutter
  • Iris
  • Exposure
  • ISO/Gain
  • Zoom
  • ND
  • Focus
  • White Balance
  • Custom Picture
  • Face Detection
  • Media | A <-> B

Operational Controls (Button Controls):

  • Assign Button
  • Tracking | Enable <->Disable

Multi-Camera Control App Demo

Changing Camera Settings

A variety of camera settings can be adjusted easily using the Multi-Camera Control App. Controls are simple and intuitive, allowing for quick adjustment of camera settings wirelessly.

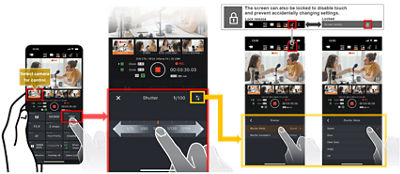

Multi-Camera Control - Changing Camera Settings Demo

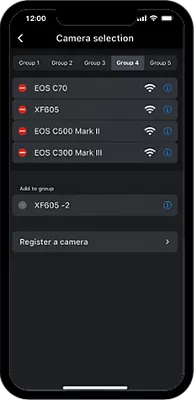

Camera Registration and Group Configuration

Camera registration on the App is quick and easy via the App’s built-in auto-detection feature. Up to five groups can be created with up to four cameras in each group.

Status Display:

  • Camera Groups (up to 5) - Switch tabs to easily change the cameras in use. Dividing cameras into groups according to purpose makes setup more efficient.
  • Cameras to Operate (up to 4) - Displays the camera to operate with the app.
  • Camera Register - The auto-detect feature popular with the Remote Camera Control App (RCCA) is also supported with the Multi-Camera Control App. Auto-detect cameras to simplify connection with the smartphone.

Multi-Camera Control App Camera Registration Demo

Getting Started with the Canon Multi-Camera Control App

Product Specifications

Live View

ON/OFF display


Multiple camera display, camera select


Audio Level Meter Display

Level meter only


Audio is not sent to the app


Zoom

Position control


Speed settings


Focus

MF control, speed settings


AF Setting

AF Speed


AF Mode


AF Response


AF Lock


One-Shot AF


AF Frame Size/Position


Detection/Tracking Settings

Face detection/tracking


Cancel tracking/Touch tracking


Face detection AF/AE


Eye detection


Iris

Auto/manual switching


Manual operation


ND

Density settings


Advanced settings


ISO/Gain

Auto gain


ISO/gain settings


Advanced settings


Shutter

Setting mode configuration


Value settings


WB

Mode setting


AWB


Preset select (sunlight, incandescent light)


Color temperature settings, CC settings


White balance correction (A, B)


AWB hold


Assign Key

Camera assign buttons 1-4

Connection Status

Status between app and camera


CP

Protect display


Media

Remaining recording time


Selected media


Internal Recording Status


External Recording Status


Recording Method

Slow & Fast recording/Interval recording Frame recording, etc.


Special Recording Status

Double/continuous

Camera Name

Display name


Camera Info

Model name


Lens Name


Zoom Position

(fixed lens cameras only)


Focus Guide Frame


AF Frame


F-number/T-number


ND Density


Shutter

Angle/Time/Hz/open status


ISO/Gain


Image Quality

Gamma


Color Gamut


WB

Select mode/color temp


Recording Format

RAW/XF-AVC/MP4


TC


Power Supply

Remaining battery time, etc.


Cooling

Cooling fan operation

Available On

App Store Download


For Additional Help & Support, please click here.

1. Available for download from the Apple App Store.
