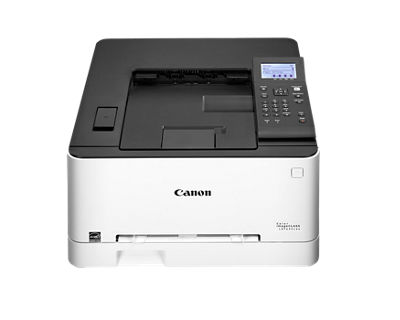

Color imageCLASS LBP622Cdw

Get started with these quick links.

DOWNLOADS

Filter & Sort
Download Type
<p><b>Find Software &amp; Drivers</b></p> <p>Software &amp; drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above

SETUP & TROUBLESHOOTING

PRODUCT INFO

Products Windows 7 Windows 8 Windows 10 Windows 10s Windows 11
Color imageCLASS LBP622Cdw
Products High Sierra V10.13 Mojave V10.14 Catalina V10.15 Big Sur V11.0 Monterey V12.0 Ventura V13.0 Sonoma V14 Sequoia 15
Color imageCLASS LBP622Cdw
Products ChromeOS
Color imageCLASS LBP622Cdw

Color imageCLASS LBP622Cdw Spec Sheet

Color imageCLASS LBP622Cdw

MAIN UNIT

CORE FUNCTIONS

Print

ITEM CODE

3104C005

PROCESSOR

Canon Custom Processor

CONTROL PANEL

5-line LCD

MEMORY

1 GB

STANDARD INTERFACE CONNECTION

USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection

PAPER CAPACITY (LETTER, 20 LB. BOND)

250 Sheets

PAPER SOURCES (LETTER, 20 LB. BOND)

Standard: 250-sheet Paper Cassette, 1-sheet Stack Bypass

PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)

75 Sheets

SUPPORTED MEDIA TYPES

Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes)
Manual Feed Slot: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)

SUPPORTED MEDIA SIZES

Cassettes: Letter, Legal, Statement, Executive,
Envelope: COM10, Monarch, C5, DL,
Custom (Min. 3" x 5" to Max. 8.5" x 14")
Manual Feed Slot: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3" x 5" to Max. 8.5" x 14")

SUPPORTED MEDIA WEIGHTS

Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)
Manual Feed Slot: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)

WARM-UP TIME

From Power On: 13 Seconds or Less;
From Sleep Mode: 6.1 Seconds or Less

DIMENSIONS (W x D x H)

Standard (Desktop): 17.2" x 16.7" x 11.5" (437 mm x 425 mm x 292 mm)
Box: 21.8" x 22.2" x 15" (553 mm x 564 mm x 381 mm)

INSTALLATION SPACE (W x D x H)

Standard (Desktop): 17.0" x 40.0" x 11.3" (430 mm x 1011 mm x 287 mm)

WEIGHT2

Unit: Approx. 35.2 lb. (16.0 kg)
Boxed Weight: Approx. 41.8 lb. (19.0 kg)

SUPPORTED OS

Windows 7/ Windows 8.1/ Windows 10/ Windows Server 2008/ Windows Server 2008 R2/ Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 / Mac OS X v10.9.5 (or later)

WHAT COMES IN THE BOX

LBP622Cdw Product, Cartridge 054 CMY Starter: 680 Yield/Black Starter: 910 Yield, Power Cord, Starter Guide, User Software DVD-ROM, Warranty Card3

PRINT SPECIFICATIONS

PRINTING METHOD

Laser Beam Printing

PRINT SPEED4

Up to 22 ppm (Letter); Up to 17.9 ppm (Legal)

FIRST PRINT-OUT TIME

Approx. 10.3 Seconds

RECOMMENDED MONTHLY PAGE VOLUME

150 - 2,500 Pages

PRINT RESOLUTION (dpi)

600 x 600

STANDARD PAGE DESCRIPTION LANGUAGES

UFR II

DOUBLE-SIDED PRINTING

Automatic (Standard)

DIRECT PRINT

Available from USB Memory (JPEG, TIFF, PDF)

PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1

Apple® AirPrint,® Canon PRINT Business, Mopria™ Print
Service

SECURITY SPECIFICATIONS

AUTHENTICATION

Standard: Department ID Authentication

NETWORK

Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP

DOCUMENT

Standard: Secure Print

WI-FI® AUTHENTICATION METHODS

Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES) WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENT

Temperature: 50 to 86º F;
Humidity: 20 to 80% RH (no condensation)

POWER REQUIREMENTS

AC 120-127 V:6.5 A, 60 Hz

POWER CONSUMPTION

Maximum: Approx. 900 W
Standby: Approx. 7.9 W
Sleep Mode: Approx. 0.7 W
Typical Electricity Consumption (TEC) Rating: 0.21 kWh

STANDARDS

ENERGY STAR® Qualified, Rated EPEAT Silver2

FOOTNOTES

1 Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Please see the respective websites for Apple AirPrint and Mopria Print Service for compatibility and additional information.
2 For current EPEAT ratings (Gold/Silver/Bronze), please visit www.epeat.net.
3 Warranty program is subject to certain conditions and restrictions. See warranty card for details.
4 Print speed is based on internal testing. Print speed may vary, depending on the number of copies selected as well as the settings for size, type, and orientation of paper.

CANON imageCLASS SERIES EXCHANGE/CARRY-IN

PRODUCT LIMITED WARRANTY



The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon USA") with respect to the Canon imageCLASS Series product and accessories packaged with this limited warranty (collectively, the "Product") when purchased and used in the United States.



Cartridges for the product are covered by a separate warranty. Accordingly, this limited warranty does not cover any cartridges for the product, whether shipped with the product or purchased thereafter.



Canon USA warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one year after delivery to the original purchaser ("Purchaser") by Canon USA or its authorized Reseller. During the relevant warranty period, and in its sole discretion, Canon USA shall, or shall cause its authorized service provider ("Service Provider"), to, without charge, repair, or replace any defective part with a new or comparable rebuilt part, or exchange the Product with a new or refurbished Product. Warranty replacement shall not extend the warranty period of the malfunctioning Product. This warranty shall not extend to consumables, such as paper, as to which there shall be no warranty or replacement.



Canon USA offers assistance for installation, operation, and support* of the Product as follows:

(a) On-line troubleshooting via a searchable Knowledgebase, answers to frequently asked questions, the latest driver and firmware downloads available at www.cusa.canon.com/support. (b) Toll free telephone support at 1-800-OK-CANON (652-2666), Monday through Friday (excluding holidays).

If Canon USA's remote assistance above cannot fix your Product's malfunction, Canon USA shall provide the contact information of the nearest authorized Canon USA Service Provider ("Service Provider") for service, or will exchange the Product, except where the malfunction involves a user replaceable item, in which case Canon USA will send you a replacement part with installation instructions. You will be responsible for installing the user replaceable items in your Product.



If the service or exchange is performed, and (1) the Product malfunction is not covered by this limited warranty, or (2) the applicable warranty period has expired or has not been sufficiently established by appropriate documentation, then you will be charged for such service at the then current service rates of Canon USA or the Service Provider, or for such exchange, as applicable.



This warranty shall only apply if the Product is used in conjunction with compatible computers, peripheral equipment, and software. Canon USA shall have no responsibility for such items except for compatible Canon brand peripheral equipment covered by a separate warranty ("Separate Warranty"). Repairs of such Canon brand peripheral equipment shall be governed by the terms of the Separate Warranty. NON-CANON BRAND COMPUTERS, PERIPHERAL EQUIPMENT AND SOFTWARE WHICH MAY BE DISTRIBUTED WITH THE PRODUCT ARE SOLD AS IS, WITHOUT WARRANTY OF ANY KIND BY CANON USA, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The sole warranty, if any, with respect to such non-Canon brand item is given by the manufacturer or producer thereof.



NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY STATED ABOVE. NO OTHER WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THE PRODUCT SHALL BIND CANON USA OR ANY SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRODUCT.



This warranty shall be void and of no force and effect if the Product is damaged as a result of (a) abuse, neglect, mishandling, alteration, electric current fluctuation or accident, (b) improper use, including failure to follow operating or maintenance instructions in, or environmental conditions prescribed in, Canon USA's operator's manual or other documentation, (c) installation or repair by other than authorized service representatives qualified by Canon USA who are acting in accordance with Canon USA's service bulletins, (d) use of supplies or parts (other than those distributed by Canon USA) which damage the Product or cause abnormally frequent service calls or service problems, or (e) use of the Product with non-compatible computers, peripheral equipment or software, including the use of the Product in any system configuration not recommended in any manual distributed with the Product. Nor does this warranty extend to any Product on which the original identification marks or serial numbers have been defaced, removed, or altered.



ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE CD-ROM'S ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD "AS IS" AND WITHOUT WARRANTY BY CANON USA. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON USA IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.



NEITHER CANON USA NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON USA OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, INCLUDING, WITHOUT LIMITATION, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON USA OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON USA OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS ARISING OUT OF THE POSSESSION, USE, MISUSE, OR INABILITY TO USE THE PRODUCT NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON USA OR ANY SERVICE PROVIDER. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE PRODUCT AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.



*Support options are subject to change without notice.

THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. ONLY.
