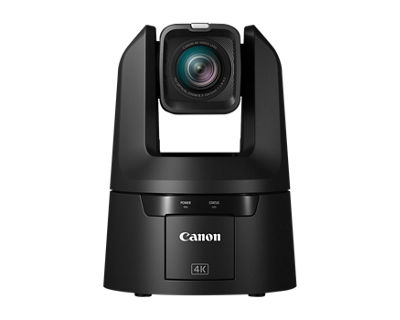

CR-N500
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| Color Options | Satin black/Titanium white |
| Image Sensor | Type 1.0 (1.0 in.) single-plate CMOS sensor
Total pixels: approx. 13.40 megapixels Effective pixels: approx. 8.29 megapixels (3840 x 2160) |
| Lens | f=8.3 124.5 mm, F/2.8 4.5, 15x optical zoom, 9-bladed iris diaphragm
35mm equivalent focal length: approx. 25.5 (W) 382.5 mm (T) |
| Zoom | Digital: 20x
Optical: 15x |
| Lens Configuration | 18 elements in 14 groups (including 2 aspheric elements) |
| Minimum Focusing Distance | 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.)
throughout the zoom range |
| Angle of View | Horizontal: 73.0 (W) 5.7° (T)
Vertical: 45.2° (W) 3.2° (T) |
| Shutter Speed | 1/3 1/2000 sec. (specific values depend on the frame frequency and frame rate |
| Iris | Manual/Automatic aperture |
| Gain | -6.0 db 33.0 db |
| ND Filter | Built-in (Off, 1/4, 1/16, 1/64), motor operated |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K 15,000 K), Manual
*Color temperatures are given for reference purposes only. |
| Focus | Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
AF type: Dual Pixel CMOS AF, Contrast AF |
| Gamma | Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3 |
| Image Stabilizer | Optical-shift |
| Min. Subject Illumination | 3840 × 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
1920 ×1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB) |
| Pan and Tilt | Pan operation range: Horizontal ±170°
Pan operation speed: 0.1° 100°/sec. Tilt operation range: Vertical -30° +90° Tilt operation speed: 0.1° 100°/sec. |
| SDI | 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| HDMI | 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| IP | 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps |
| Supported Video and Control Protocols | Protocol: XC Protocol, RTSP/RTP, NDI®|HX2, SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations), RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP) |
| Number of Presets | Max. 100 (including home position) |
| Communication Control | LAN, Wi-Fi, Serial, IR |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| 3G-SDI OUT Terminal | BNC jack (output only) x 1, 0.8 Vp-p/75 , unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC) |
| GEN-LOCK Terminal | BNC jack x 1, 1.0 Vp-p/75 , input only |
| HDMI OUT Terminal | HDMI connector x 1, output only |
| RS-422 Terminal | RJ45 connector x 1 |
| Input 1 / Input 2 Terminals | INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 /Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k) |
| Mic Terminal | 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k) |
| USB Terminal | Type-A (USB 2.0) x 1 |
| Media Slot | microSD card slot x 1 (future expansion, recording unavailable) |
| Operating Environment | Temperature: 0°C +40°C (+32°F +104°F)
Humidity: 10% 90% (without condensation) |
| Storage Environment | Temperature: 0°C +40°C (+32°F +104°F)
Humidity: 10% 90% (without condensation) |
| Power Supply | PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) PoE cannot be used
External power source: 24 V DC (using included AC adaptor) |
| Power Consumption | PoE+ Input: Approx. 16.2 W* max. (body only)
DC Input: Approx. 18.6 W max. (body only) *Class 4 (25.5 W required) for power supply devices |
| Dimensions (W x H x D) | Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions) |
| Weight | Approx. 4.1 kg (9.04 lb.) (body only) |
| Supported Controllers | Hardware: RC-IP100, RC-IP1000
Software: Remote Camera Control Application |
