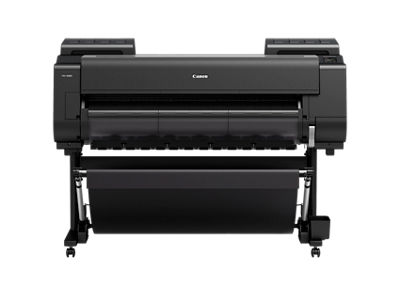

Canon Support for imagePROGRAF PRO-4000S | Canon U.S.A., Inc.

DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 09.28.21
File Size 1.93 MB
Date 09.26.22
File Size 4.68 MB
Date 07.19.22
File Size 856.55 KB
Date 09.04.19
File Size 3.43 MB
Date 09.28.21
File Size 832.24 KB
Date 09.28.21
File Size 1.34 MB
Date 09.28.21
File Size 1.04 MB
Date 09.22.17
File Size 6.03 MB
Date 09.28.21
File Size 2.67 MB
Date 09.26.22
File Size 5.26 MB
Date 09.28.21
File Size 1.63 MB
Date 09.28.21
File Size 2.04 MB
Date 09.04.19
File Size 3.53 MB
Date 09.28.21
File Size 815.83 KB
Date 09.28.21
File Size 2.43 MB
Date 09.26.22
File Size 4.62 MB
Date 12.27.16
File Size 2.39 MB
Date 05.31.21
File Size 13.60 MB
Date 09.28.21
File Size 2.56 MB
Date 09.04.19
File Size 2.46 MB
Date 09.01.21
File Size 1.96 MB
Date 09.22.17
File Size 6.05 MB
Date 08.25.17
File Size 407.75 KB
Date 01.15.20
File Size 2.28 MB
Date 09.26.22
File Size 5.21 MB

SETUP & TROUBLESHOOTING

PRODUCT INFO

Printer Type 8-Color 44-inch Printer
Number of Nozzles Total: 18,432
All colors: 1,536 nozzles
Nozzle Pitch 600 dpi x 2
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2400×1200dpi (Max)
OS Compatibility 32bit: Windows® (Vista/7/8, 8.1/10)
64bit: Windows® (Vista/7/8, 8.1/10)
Mac (OS X 10.7.5-10.11)
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size minimum 4 picoliter
Ink Capacity 160ml, 330ml, or 700ml per color*
Ink Droplet Size Pigment based LUCIA PRO Ink
Color Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray
Hard Drive 320GB
Media Width Cut Sheet - 8"- 44"
Roll Feed - 8" - 44"
Media Thickness Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)
Maximum Roll Print Length Roll Feed - 59' (18 meters)**
Maximum Media Roll Diameter 6.7" (170mm)
Borderless Printing Width 10", 14", 17", B2 (20.3"/515 mm), A1 (23.4"/594mm), A0 (33.11"841mm), 24", 36", B0 (40.6"/1,030mm), 42",44"
Paper Feed Method Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output
Languages Language: Swift Graphic Raster (SGRaster)
Noise Level Approx Operation: 49 dB (A) or less
Acoustic Power: 6.6 Bels or less
Physical Dimensions 46.0" (H) x 62.7" (W) x 38.7" (D) (with basket open)
Weight Approx.267 lbs (roll holder included, no inks, no print heads)
Power Source AC 100-240V (50-60Hz)
Power Consumption Maximum: 107 W or less
Standby 3.6 W or less
Power Off: 0.5 W or less
Operating Environment Temperature: 59 - 86°F
Relative Humidity: 10-80% (No Condensation)
User-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700)
Software Included imagePROGRAF Printer Driver, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Gallery Wrap Feature
CANON imagePROGRAF LARGE FORMAT PRINTER LIMITED WARRANTY

The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon") with respect to the Canon imagePROGRAF Large Format Printer packaged with this limited warranty and Canon branded accessories and options designed for use with the imagePROGRAF Large Format Printer (collectively, the "Product"). Canon warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year after delivery to the original purchaser (“Purchaser”) by Canon or its authorized dealer. During the relevant warranty period, Canon shall, in its sole discretion and without charge, repair or replace any defective part with a new or comparable rebuilt part or replace the Product with a new or rebuilt Product. Warranty replacement shall not extend the warranty period of the defective Product. This warranty shall not extend to the Canon Printhead for the Product, for which a separate warranty is given. Nor shall this warranty cover other consumable parts or consumables, such as paper and ink cartridges, as to which there shall be no warranty or replacement.
You must call the number below for remote diagnostic assistance for operation and support of the Product:
 Your local Service Provider; or call
 1-800-423-2366, Monday through Friday from 8:00 a.m. to 8:00 p.m. ET
You must cooperate with Canon in remotely diagnosing the Products malfunction. Canon may attempt to correct the malfunction remotely, with your assistance. If Canon cannot fix your Product’s malfunction through remote diagnostics, Canon shall schedule an on-site service call by an independent authorized Canon Service Provider (the "Service Provider") or Canon will send you a replacement part for any defective user replaceable item. You will be charged at the then-current service call rates of Canon or the Service Provider if the defects in the Product are not covered by this limited warranty, or if the applicable warranty period for the Product has expired or warranty coverage has not been sufficiently established by appropriate documentation.
This warranty shall only apply if this Product is used in conjunction with compatible computers, peripheral equipment and software, as to which items Canon shall have no responsibility. NON-CANON BRAND COMPUTERS, PERIPHERAL EQUIPMENT AND SOFTWARE WHICH MAY BE DISTRIBUTED WITH THE PRODUCT ARE SOLD AS IS, WITHOUT WARRANTY OF ANY KIND BY CANON, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The sole warranty, if any, with respect to such non-Canon brand item is given by the manufacturer or producer thereof.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, RELATING TO THE USE OR PERFORMANCE OF THE PRODUCT. NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE PRODUCT SHALL BIND CANON OR ANY SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRODUCT.

THIS WARRANTY SHALL BE VOID AND OF NO FORCE AND EFFECT IF THE PRODUCT IS DAMAGED AS A RESULT OF (A) ABUSE, NEGLECT, MISHANDLING, ALTERATION, ELECTRIC CURRENT FLUCTUATION OR ACCIDENT, (B) IMPROPER USE, INCLUDING FAILURE TO FOLLOW OPERATING OR MAINTENANCE INSTRUCTIONS IN, OR ENVIRONMENTAL CONDITIONS PRESCRIBED IN, CANON’S USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT, (C) REPAIR BY OTHER THAN SERVICE REPRESENTATIVES QUALIFIED BY CANON WHO ARE ACTING IN ACCORDANCE WITH CANON’S SERVICE BULLETINS (D) USE OF SUPPLIES OR PARTS (OTHER THAN THOSE DISTRIBUTED BY CANON) WHICH DAMAGE THE PRODUCT OR CAUSE ABNORMALLY FREQUENT SERVICE CALLS OR SERVICE PROBLEMS OR (E) USE OF THE PRODUCT WITH NON-COMPATIBLE COMPUTERS, PERIPHERAL EQUIPMENT OR SOFTWARE, INCLUDING THE USE OF THE PRODUCT IN ANY SYSTEM CONFIGURATION NOT RECOMMENDED IN ANY USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT. NOR DOES THIS WARRANTY EXTEND TO ANY PRODUCT ON WHICH THE ORIGINAL IDENTIFICATION MARKS OR SERIAL NUMBERS HAVE BEEN DEFACED, REMOVED, OR ALTERED.

ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE DISKETTES OR CD-ROM'S ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD “AS IS” AND WITHOUT WARRANTY BY CANON. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATION AND DISCLAIMERS THEREON. PLEASE CONTACT CANON IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.

NEITHER CANON NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE T0 REALIZE SAVINGS OR OTHER BENEFITS, LOSS OR CORRUPTION OF DATA INCLUDING, WITHOUT LIMITATION, DATA STORED ON THE PRODUCT'S HARD DISK DRIVE, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS, ARISING OUT OF THE POSSESSION, USE, MISUSE OR INABILITY TO USE THE PRODUCT SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE PURCHASER, AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.

CONDITIONS OF WARRANTY

Defective parts must be returned to Canon or a Service Provider with all necessary documentation and will become the property of Canon.

THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. ONLY.

Canon U.S.A., Inc. One Canon Park, Melville, NY 11747 - 3336
