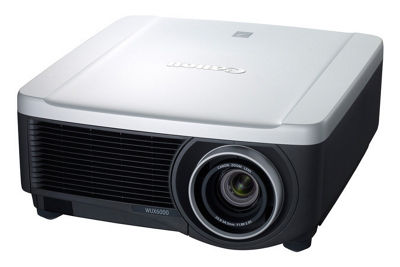

REALiS WUX6000 Pro AV


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 10.22.14
File Size 2.92 MB
Date 06.17.15
File Size 24.61 MB
Date 04.08.15
File Size 602.00 KB

SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Standard / Presentation / Dynamic / Video / Cinema / Photo / sRGB / Vivid Photo / DICOM SIM / User 1 / User 2 / User 3 / User 4 / User 5
(Input) HDMI
Digital RGB Input
(Input) DVI-D 29pin
Digital RGB / Digital Video Input (supports Deep Color)
(Input) Mini D-Sub 15pin
Analog RGB / Component Video Input
Power
336W

Projector Specifications

Imaging Device 0.71" LCOS Reflective LCD panel x3
Aspect Ratio 16:10
Native Resolution 1920 x 1200 (WUXGA)
Brightness 6000 Lumens (Normal) / 4660 Lumens (Power Saver)
Uniformity 88%
Contrast Ratio 2000:1
Digital Keystone (Vertical) ± 20 degrees
Digital Keystone (Horizontal) ± 20 degrees

Optics

Projection Lens Projector does not ship with lens. 5 optional interchangeable lenses are available (see Optics listed below).
Lens Shift Motorized
Zoom Powered
Focus Powered

Image Adjustments

Color Adjust Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Mounting 360° projection
Tilt Angle Bottom Front Feet: 2 places (Max. angles: 6° elevation)

Input Signals

Scanning Frequency H: 27 , 75 kHz, V: 24 , 60Hz
Analog PC Input WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
Digital PC Input WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
Component Input 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Digital Video Input 1080p / 1080i / 720p / 576p / 480p

Terminals

(Input) DVI-I 29pin Digital PC/Analog PC Input
(Input) D-Sub 15pin Analog PC/Component Video Input
(Input) RJ-45 Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)
(Input) Stereo Mini Jack Audio Input x2
(Output) Stereo Mini Jack Audio Output x1, Connecting Wired Remote
Built-in Speaker 5W, Mono
Control Terminal Dsub9: RS-232C Connection
USB type A: Service Port
RJ-45: Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)

Lamp

Lamp Type 340-NSHA lamp
Lamp Life 3000 Hours Full Power / 4000 Hours Power Saver

Ratings

Fan Noise (Quiet/Normal) 40dB (Full Power) / 36dB (Power Saver)
Power Consumption (Normal/Quiet/Stand-By) 455W/360 W
Power Voltage AC 100 , 240V, 50/60 Hz
Temperature Operating 32°F - 104°F (0°C - 40°C)
Temperature Storage 14°F - 140°F (-10°C - 60°C)
Dimension (WxHxD) W: 14.96"(380 mm), H: 6.69"(170mm), D: 16.92"(430 mm) (including protrusion)
Weight 18.73 lbs.
Warranty 3 Years (parts and labor),120 Days lamp
1.49 - 2.24:1
Focal Length
23.0 - 34.5 mm, 1.5x Optical Zoom
F-Number
1.89 - 2.65
Projection Distances
4.26 - 95.14 ft. (1.3 - 29 m)
Lens Shift (Vertical)
Down 15% to Up 55%
Lens Shift (Horizontal)
Left 10% to Right 10%
Screen Sizes
40" - 600"
Throw Ratio
2.19 - 3.74:1
Focal Length
34.0 - 57.7 mm, 1.7x Optical Zoom
F-Number
1.99 - 2.83
Projection Distances
6.23 - 159.12 ft. (1.9 - 48.5 m)
Lens Shift (Vertical)
Down 15% to Up 55%
Lens Shift (Horizontal)
Left 10% to Right 10%
Screen Sizes
40" - 600"
Throw Ratio
0.80:1
Focal Length
12.8 mm
F-Number
2.0
Projection Distances
2.26 - 17 ft. (0.69 - 5.17m)
Lens Shift (Vertical)
Down 5% to Up 5%
Lens Shift (Horizontal)
Left 2% to Right 2%
Screen Sizes
40" - 300"
Throw Ratio
3.55 - 6.94:1
Focal Length
53.6 - 105.6mm, 1.95 x Optical Zoom
F-Number
2.34 - 2.81
Projection Distances
15.1 - 292 ft. (4.6 - 89.0m)
Lens Shift (Vertical)
Down 15% to Up 55%
Lens Shift (Horizontal)
Left 10% to Right 10%
Screen Sizes
60" - 600"
Throw Ratio
1.00 - 1.50:1
Focal Length
15.56 - 23.44mm, 1.5x Optical Zoom
F-Number
2.09 - 2.34
Projection Distances
2.95 - 64 ft. (0.9 - 19.5m)
Lens Shift (Vertical)
Down 15% to Up 55%
Lens Shift (Horizontal)
Left 10% to Right 10%
Screen Sizes
40" - 600"

CANON PROJECTOR AND LAMP LIMITED WARRANTY

For The U.S.A. And Canada Only

Canon U.S.A., Inc. and Canon Canada Inc. (collectively "Canon") warrant to the original end-user purchaser that this Canon Projector (the "Product"), when purchased and used in the United States or Canada, will be free from defects in workmanship and materials under normal use and service for a period of three (3) years from the date of original purchase, except the lamp contained in the Product (the "Lamp"). Canon warrants to the original end-user purchaser that the Lamp, when purchased and used in the United States and Canada, will be free from defects in workmanship and materials under normal use and service for a period of one-hundred and twenty (120) days from the date of original purchase of the Product. The Product and Lamp are collectively referred to in this Limited Warranty as "Equipment";. During the warranty period for the Product, Product returned to a Canon repair facility and proven to be defective upon inspection will, in Canon’s sole discretion and without charge, be (a) repaired utilizing new, remanufactured, repaired and/or recycled parts: (b) exchanged for a new Product or; © exchanged for a refurbished Product, as determined by the Canon repair facility. During the warranty period for the Lamp, Canon will, in its sole discretion and without charge, exchange a defective Lamp for a new Lamp. Except as set forth herein, this warranty does not cover consumable items as to which there is no warranty or replacement. Warranty exchange or replacement does not extend the original warranty periods of the Equipment.

When returning Equipment for warranty service, shipping charges must be prepaid and the Equipment must be shipped in its original carton or box, or an equivalent. A bill of sale, or other proof of purchase, as well as a description of the problem, must be enclosed.

This Limited Warranty shall only apply if the Equipment is used in conjunction with compatible computers, peripheral equipment and software. Canon shall have no responsibility for such items except for compatible Canon brand peripheral equipment covered by a separate warranty ("Separate Warranty"). NONCANON BRAND COMPUTERS, PERIPHERAL EQUIPMENT AND SOFTWARE WHICH MAY BE DISTRIBUTED WITH THE PRODUCT ARE SOLD "AS IS", WITHOUT WARRANTY OF ANY KIND BY CANON, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The sole warranty, if any, with respect to such non-Canon brand item is given by the manufacturer or producer thereof.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, REPRESENTATIONS AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES, REPRESENTATIONS AND CONDITIONS REGARDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, RELATING TO THE USE OR PERFORMANCE OF THE EQUIPMENT. NO OTHER EXPRESS WARRANTY, REPRESENTATION, CONDITION OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE EQUIPMENT WILL BIND CANON. NO WARRANTY IS GIVEN ON ANY USED EQUIPMENT.

This Limited Warranty shall be void and of no force and effect if the Equipment is damaged as a result of (a) abuse, neglect, mishandling, alteration, electric current fluctuation or accident, (b) improper use, including failure to follow operating or maintenance instructions in, or environmental conditions prescribed in, Canon's instruction manual or other documentation, © installation or repair by other than authorized service representatives qualified by Canon who are acting in accordance with Canon's service bulletins, (d) use of supplies or parts (other than those distributed by Canon) which damage the Equipment or cause abnormally frequent service calls or service problems, or (e) use of the Equipment with non-compatible computers, peripheral equipment or software, including the use of the Equipment in any system configuration not recommended in any manual distributed with the Equipment. Nor does this warranty i) extend to any Equipment on which the original identification marks or serial numbers have been defaced, removed or altered, ii) cover the adjustment of customer-operated controls as explained in the instruction manual, iii) extend to any external interface equipment, iv) apply to the cabinet or cosmetic parts, knobs or routine maintenance, or v) cover uncrating, set up, installation, removal of the Equipment for repair or reinstallation of the Equipment after repair.

ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE EQUIPMENT, CONTAINED ON THE SOFTWARE MEDIA ENCLOSED WITH, OR ACCOMPANYING, THE EQUIPMENT OR DOWNLOADED FROM CANON’S WEB SITE), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE EQUIPMENT IS SOLD "AS IS" AND WITHOUT WARRANTY BY CANON. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER’S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER’S LICENSE AGREEMENT.

CANON WILL NOT BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON), LOSS OF REVENUE OR PROFIT, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, STORAGE CHARGES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE EQUIPMENT OR ANY COMPONENT THEREOF, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR WILL RECOVERY OF ANY KIND AGAINST CANON BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE EQUIPMENT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS ARISING OUT OF THE POSSESSION, USE, MISUSE, OR INABILITY TO USE THE EQUIPMENT SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON. THIS WARRANTY WILL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE EQUIPMENT AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.

Canon U.S.A.

You may obtain technical support* for the Equipment as follows:
E-mail support via our Web site at www.canontechsupport.com
Telephone assistance from a Canon U.S.A. Customer Care representative free of charge during regular business hours at 1-800-OK-CANON (1-800-652-2666)

When you call, have your Product serial number and your date of purchase available to expedite service. A Canon Customer Care representative will attempt to diagnose the nature of the problem and correct it over the telephone. If the problem cannot be corrected over the telephone, you will be asked to follow the applicable procedures for MAIL IN SERVICE. Note that a dated proof of purchase is required at the time of service. This requirement will be satisfied by providing a copy of your dated bill of sale.

* Technical support program specifics subject to change without notice

MAILIN SERVICE


MAIL-IN SERVICE is a program under which your Product is repaired by a Canon U.S.A. or a Canon Canada authorized service center. Authorized service center information can be obtained by visiting www.canontechsupport.com (US customers only) or by contacting the Canon U.S.A., Customer Care Center or Canon Canada Customer Information Centre at 1-800-OK-CANON (1-800-652-2666). You will be given the name, address and phone number of an authorized service center for the Product. It is your responsibility to properly package and send the defective Product, together with a copy of your dated proof of purchase, a complete explanation of the problem and a return address to the authorized service center at your expense. Do not include any other items with the defective Product. The Product covered by this limited warranty and proven to be defective upon inspection will be repaired and returned to you without charge by the authorized service center. Any Product received by the authorized service center that is not covered by the limited warranty will be returned unrepaired, or at the discretion of the authorized service provider, you may receive a written estimate of repair at such cost as the service center may establish from time to time.




Online Repair

Title Canon Support | Firmware Notice: REALiS WUX6000 Pro AV & REALiS WUX6000 D Pro AV: Firmware Version 01.070300
Advisory Type
Date 04.25.17
Title Canon Support | Firmware Notice: REALiS WUX6000 Pro AV & REALiS WUX6000 D Pro AV: Firmware Version 01.060200
Advisory Type
Date 07.26.16
