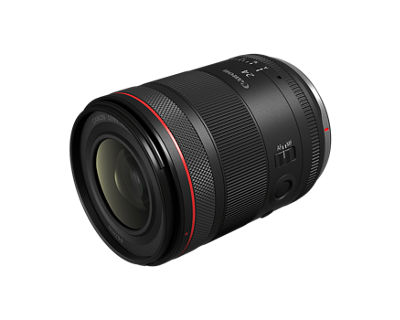

RF24mm F1.4 L VCM

Get started with these quick links.

DOWNLOADS

Filter & Sort
Download Type
<p><span class="h2"><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0

SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Focal Length 24mm
Maximum and Minimum Aperture f/1.4 - f/16
Lens Mount Type RF Mount (Metal Mount)
Compatible Cameras Canon EOS R-series, APS-C and full-frame
Minimum Focusing Distance 0.24m (9.4 in)
Maximum Magnification 0.17x
Field of View, at Minimum Focus Distance Approx. 210 × 140mm (8.3" x 5.5")
Angle of View (Diagonal) Approx. 84º
Lens Construction 15 elements in 11 groups
Special Elements Two UD Lenses, One Aspherical Lens
Lens Coating Canon ASC (Air Sphere Coating), SSC (Super Spectra Coating), Fluorine Coating
Filter Size Diameter ø67 mm
Aperture Blades 11
Image Stabilization (yaw/pitch directions) Not Provided
Focusing Drive System Canon Nano USM (Ultrasonic Motor) and VCM (Voice Coil Motor)
Full-time Manual Focusing Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
Dual Pixel CMOS AF Coverage (Horizontal x Vertical) EOS R Approx. 88% x 100%
EOS R5/R6 Approx. 100% x100% (with face and tracking priority)
EOS R7/R10/R50 Approx. 100% x 100% (with face and tracking priority
Control Ring Dual-function Manual focus ring / Control Ring (selected using camera menu)
Manual Focus Ring Electronic ring system
Full-time Manual focus
No physical limit to ring rotational angle
AF/MF Switch Provided (AF/Control/MF)
Iris Ring Provided
Aperture value adjustment steps During movie shooting: 1/32 stop; during still photo shooting: adjust on camera
Lens Function Button Provided x1
External Distance Scale Not Provided
Distance Limiter Switch Not Provided
Dust / Weather Resistant Construction Yes
Maximum Outer Diameter x Length Approx. ø3.0 in. x 3.9 in. (ø76.5mm x 99.3mm)
Weight Approx. 18.5 oz. / 1.2 lb. / 525g
Lens hood Canon EW-73G (Bundled
Petal-type, 2-catch detachable bayonet hood attachable in reverse.
Lens Cap Canon E-67II (Bundled)
Dust Cap Canon Lens Dust Cap RF (Bundled)
Lens Case Canon Lens Case LP1219 (Bundled)
Extension Tubes None (No Canon RF mount extension tubes)
Close-up Lenses 250D / 500D Not compatible
Canon RF Extender 1.4x/2x Not compatible
Canon Gelatin Filter Holder III/IV Not compatible
Rear Gelatin Filter Holder Compatible
