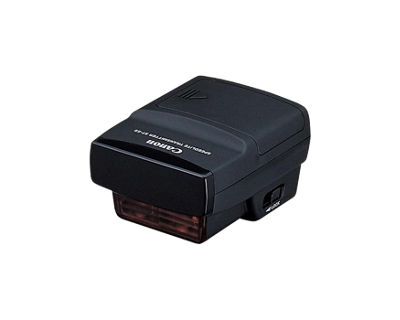

Speedlite Transmitter ST-E2

Get started with these quick links.

DOWNLOADS

Filter & Sort
Download Type
<p><span class="h2"><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Date 01.04.08
File Size 1.76 MB



Software Development Kit

The Canon EOS Digital Camera Software Development Kit (EDSDK) and the Camera Control API (CCAPI) are available on select Canon cameras1 and enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote control and communication functionality of the camera. The EDSDK supports USB communication on Windows, Macintosh, and Linux operating systems, while the CCAPI uses Wi-Fi (Ethernet on select cameras) and can be used with almost any OS.

The EDSDK and CCAPI (along with other SDKs and APIs) are provided free of charge and more information can be found at https://www.usa.canon.com/support/sdk.

1. Compatibility list available on Canon Developer Community website



SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Flash

Type 550EX-dedicated, clip-on Speedlite transmitter with direct contacts
Compatible Cameras Type A EOS cameras (E- TTL, autoflash); Type B EOS cameras (Manual flash)
Sync Speed High-Speed Sync (FP flash): Enabled with high-speed sync mode
Flash Exposure Confirmation 1. Before flash fires during FE lock Adequate flash exposure indicated by the flash exposure level icon lit in the viewfinder. Insufficient flash exposure indicated by the flash exposure level icon blinking in the viewfinder.
2. After flash fires ST-E2's flash confirmation lamp lights in green for 3 sec.
AF Assist Beam Compatible with EOS-3's 45-point Area AF and 28mm and longer lens focal lengths
Effective Range: Approx. 0.6 to 10m/2.0 to 16.5 ft along the periphery (in total darkness).

Wireless Functions

Transmission System Infrared pulse
Transmission Range Indoors: Approx. 12-15 m/39.4 - 49.2 ft; Outdoors: Approx. 8-10 m/ 26.2-32.8 ft
Flash Ratio Control For A:B ratio: 1:8 to 8:1, in half- step increments or 13 steps
Flash Coverage Transmission Coverage: +/-40 degrees horizontal and +/-30 degrees vertical
Receiver Operation Confirmation With test transmission button.
*Receiver A fires followed by receiver B at 1/64 output.
Receiver Unit SE Mode Cancellation Cancels when the test transmission button or FE lock button is pressed to turn on the receiver unit.

General

Power Source 2CR5 lithium battery x 1
Battery Life: Approx. 1,500 transmissions (At room temperature and with a new set of batteries)
SE Mode While the power switch is set to I or HOLD, the transmission turns off automatically after about 90 sec. of non-use.
Dimensions 62 (W) x 51 (H) x 80 (D)mm/2.4 (W) x 3.1 (D) in
Weight 100g/3.5 oz (excluding battery)

Canon Flashes Limited International Warranty

The Limited Warranty set forth below is given by Canon U.S.A., Inc. with respect to Canon Photographic Products purchased in the United States.
This Limited Warranty is only effective upon presentation of this warranty card and proof of purchase.

This Canon equipment is warranted against defective materials or workmanship for one year from the date of original purchase and is limited to repair, adjustment and/or replacement of defective parts.

Equipment covered by this Warranty will be repaired in the United States, WITHOUT CHARGE, by our Service Centers and Authorized Service Facilities.

When returning equipment for warranty service, the shipping charges must be prepaid and the equipment should be shipped in its original carton or box, or an equivalent, properly packed to withstand the hazards of shipment and be fully insured. A bill of sale, copy of this warranty card or other proof of purchase should be enclosed, as well as a description of the problem, film samples, etc. Repairs will be made and the equipment will be return shipped at NO CHARGE.

This warranty covers all defects encountered in normal use of the equipment, and does not apply in the following cases:

  1. loss of or damage to the equipment due to abuse causing deterioration, mishandling, accident or failure to follow operating instructions.
  2. if equipment is defective as a result of leaking batteries or liquid damage.
  3. if equipment has been serviced or modified by other than our Authorized Agents.
  4. Malfunction resulting from the use of accessories, attachments, product supplies, parts or devices (including, without limitation, batteries, film, lenses, flash attachments and other accessories) with this Canon photographic equipment that do not conform to Canon specifications.
  5. Damage resulting during shipment. (Claim must be presented and examined by the shipper.)

Equipment covered by this Warranty will be repaired in other countries:
a) by Service Centers located outside of the United States and Canada WITHOUT CHARGE. List of international service facilities included with equipment. b) by the participating Warranty Service Facilities located outside of the United States and Canada WITHOUT CHARGE, except for insurance, transportation, and handling charges. List of participating international service facilities included with equipment.


NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY, APPLIES TO THIS EQUIPMENT AFTER THE ONE YEAR PERIOD STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS EQUIPMENT SHALL BIND THE UNDERSIGNED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. NEITHER THE UNDERSIGNED NOR ANY OTHER PERSON, FIRM OR CORPORATION IS RESPONSIBLE FOR LOSS OF FILM OR PROJECTION BULB, OTHER LOSSES, EXPENSE OR INCONVENIENCES, OR FOR ANY CONSEQUENTIAL DAMAGES CAUSED BY THE EQUIPMENT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS EQUIPMENT OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT.

This warranty gives you specific legal rights, and you may also have other rights which vary from stat to state.

This warranty is given by Canon U.S.A., Inc., with respect to equipment purchased in the United States.
