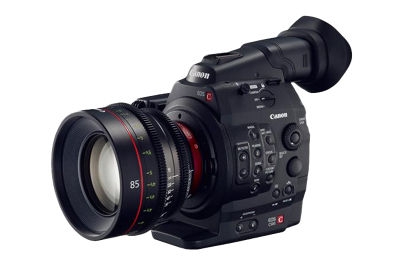

EOS C500 PL
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Effective Pixels | 4096 x 2160 pixels; Approx. 8.85 megapixels |
Total Pixels | 4206 x 2340 pixels; Approx. 9.84 megapixels |
Sensor Type | CMOS |
Sensor Size | Super 35; 26.2 x 13.8 (29.6 mm diagonal); 6.4 µm cell pitch |
Scanning System | Progressive |
Number of Sensors | 1 |
Filter | RGB Primary Color Filter (Bayer Array) |
Imaging Processor | Digic DV III |
Interchangeable Lens System | Choice of PL or EF mounts for compatibility with a wide variety of lens systems. |
ND Filter | Mechanical ND filter system with option of clear, 2, 4, and 6 stops |
Iris Dial | Iris Dial located on camera body for use with EOS EF Lenses with electronic Iris control (EF Camera version only) |
Peripheral Illumination Correction | Available on EF Mount model only |
Exposure Modes | Manual |
Gain | Normal Setting -6dB to 30 dB TBD Fine Setting 0dB to 24 dB in 0.5 dB increments |
ISO | 320 to 80,000 |
Shutter Modes | 3 Modes: OFF; Speed; Angle; Slow Shutter; Clear Scan Speed Mode is selected in 1/3 or ¼ stop increments |
Shutter Speed Range | 59.94i/59.94p: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15, 1/30; CS: 59.94 Hz - 250.27 Hz 29.97p: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15; CS: 29.97 Hz - 250.27 Hz 23.98p/24p: 1/24 to 1/2000 in 1/4or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.97 Hz - 250.27 Hz 50i/50p: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00 Hz - 250.78 Hz 25p: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00 Hz - 250.78 Hz |
Shutter Angle Settings | 59.94i/59.94p: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25 29.97p: 360, 240, 216, 180, 120, 108, 90, 60, 45, 30, 22.5, 15, 11.25 23.98p/24p: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25 50i/50p: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25 25p: 360, 300, 240, 180, 150, 120, 90, 75, 60, 45, 30, 22.50, 15, 11.25 |
Iris (Aperture) Range | EF Lens only - ½. 1/3 stop or fine setting can be selected Smooth Manual control on Cinema Lenses |
Focus Settings | Manual |
AF Modes | None |
Resolution | Resolution |
Compression | 8 Bit MPEG-2 Long GOP |
Maximum Bit rate | 50Mbps (CBR) |
Recording Options | Recording Options |
Recording Media | CF Card (Type 1 Only); 2 Slots (Movie Files); UDMA supported SD Card (Still Images (JPEG), Custom Picture Data*, Clip Metadata, and menu settings); SD/SDHC/SDXC Supported; MMC Cards are not supported *Custom Picture Data and settings is not compatible with data from others Canon models |
File Format | MXF (OP-1a) |
File System | FAT 32 |
Maximum Clip Number | 999 (per media) |
Recording Format | Linear PCM; 2-Channel; 16-Bit; 48 kHz |
Built-in Microphone | None |
External Audio Inputs | 2 - XLR inputs (Auto and Manual level settings) External microphone terminal: (3.5 mm diameter) |
Recording Channel Selection | This is used to set the allocation of the audio channels: CH1/CH2: The CH1 signals are allocated to the L output channel, and the CH2 signals are allocated to the R output channel. CH1/CH1: The CH1 signals are allocated to the L output channel, and the CH1 signals are allocated to the R output channel. CH2/CH2: The CH2 signals are allocated to the L output channel, and the CH2 signals are allocated to the R output channel. ALL CH/ALL CH: Signals obtained by mixing the CH1 and CH2 signals are allocated to the L and R output channels. |
XLR Mic Trimming | Available; -12dB, -6 dB, 0dB or +12 dB |
Limiter | Available |
Recording Level Adjustment Range | - Infinity to +18dB |
Phantom Power | Available; +48V |
Headphone Adjustment | 16 Settings; Volume is muted at lowest setting |
Built-in Speaker | None |
1KHz Tone | Available; -12, -18, or -20 dB |
Playback | Clip Display: 3x4 Index Display, Original, "OK Mark," "Check Mark," "Shot Mark," Expand, Photo (SD Card), Clip Metadata Clip Playback: Forward Search (x5, x15, x60), Reverse Search (x5, x15, x60), Forward frame Advance, Reverse Frame Advance, Record Review, Skip to next clip, skip to previous clip Clip information Display: Clip Metadata display, custom picture settings Playback Functions: Inter-media Copy (Single Clip, All Clips, Last Clip); Clip Delete (Single Clip, All Clips, Last Clip) Still Image Playback: index, single playback, erasure, protect |
Special Recording Functions | Relay Recording*; Double-Slot Recording**; Copying between Media * Not available during Slow Motion 50 Mbps recording ** Not available in combination with Slow and fast motion recording NOTE: Special features other than Slow and Fast Motion Recording are not available in 4K and 2K modes |
Photo Recording Mode | Available; Images captured to SD Card |
Waveform Monitor | Available; 2 Modes (Standard and RGB Component) |
Vectorscope | Available |
Exposure/Focus Aids | Peaking (2 types), Zebra Pattern*, Magnify, Edge Monitor Focus Assist, Black and White Mode *Can be output via the SDI or HDMI Jack (HD Only) |
Interval Record | Available; ability to set time interval and number of frames to record Interval can be set in 25 levels ranging from 1 second to 10 minutes. (1s/2s/3s/4s/5s/6s/7s/8s/9s/10s/15s/20s/30s/40s/50s/1m/2m/3m/4m/5m/6 m/7m/8m/9m/10m) NTSC 59.94i/29.97p/23.98p/24.00p: Selectable between 1, 3, 6, 9 frames NTSC 59.94p: Selectable between 2, 6, 12 frames PAL 50i/25p/50p: Selectable between 2, 6, 12 frames |
Frame Record | Available; Records a set number of frames each time the record button is pressed NTSC 59.94i/23.98p/24.00p: Selectable between 1, 3, 6, 9 frames NTSC 59.94p: Selectable between 2, 6, 12 frames PAL 50i/25p/50p: Selectable between 2, 6, 12 frames |
Pre-Record | Yes, 3 seconds cache (Audio and Video) |
Scan Reverse | When using a Depth of Field Converter or other lens adapters it flips or reverses the image automatically so it is recorded correctly. |
Time code | *Drop Frame (DF) and Non-Drop Frame (NDF) *Drop frame works with NTSC models only and is not available in 24P |
Time Code Modes | Regeneration, Record Run, Free Run and External Source |
Auto White Balance (AWB) | Not Available |
White Balance | Kelvin Setting 2,000K to 15,000K in 100K increments |
White Balance Presets | Daylight (5,400K); Tungsten (3,200K); Kelvin White balance shift is available within Presets (-9 to +9) |
Auto Black Balance | Available |
Custom Picture Settings | 23 Custom Picture settings A total of nine 9 Customized Pictures are available in the camera and up to 20 can be saved to an SD card Custom pictures can be adjusted using the following settings and saved for later recall: Gamma, Black, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective Noise Reduction, Color Matrix, White Balance, Color Correction, Setup Level Custom Pictures CP8 and CP9 ship with the following presets: C8: Cinema - Suited for giving recorded media a film tone. C9: EOS Standard - Used to match the quality of DSLR video shot in EOS standard mode |
Custom Functions | Available, 9 total functions |
Custom Display | Yes; LCD panel and EVF information display can be customized Total of 27 display and icons that can be turned on and off |
On Screen Markers | Yes |
Assign Buttons | 15; Can be assigned functions as desired (37 functions Available) |
Color Bars | Color bars compliant with SMPTE, EBU, or ARIB standards can be selected. |
Minimum Subject Illumination | 59.94 Hz Mode: 0.3 Lux (f/1.2, 24 dB, 29.97p, 1/30 sec.) 50.00 Hz Mode: 0.25 Lux (f/1.2, 24 dB, 25p, 1/25 sec.) |
Sensitivity | 59.94 Hz Mode: F9 (1920 x 1080/59.94i, ISO 640 (0 dB), 2000 lux, 89.9% Reflection) 50.00 Hz Mode: F10 (1920 x 1080/50i, ISO 640 (0 dB), 2000 lux, 89.9% Reflection) |
S/N Ratio | 59.94 Hz Mode: 54 dB (Typical) (1920x1080/29.97p, Canon Log, ISO 850, Dynamic Range 800%) 50.00 Hz Mode: 54 dB (Typical) (1920x1080/25p, Canon Log, ISO 850, Dynamic Range 800%) |
Dynamic Range | During Normal Shooting: 300% *With Canon Log Gamma: 800% *ISO 850 or above - gain 2.5dB or above |
Viewing Angle Adjustment | Available; Viewing Angle can be adjusted up and down 60° |
Diopter Adjustment Range | +2.0 to -5.5 |
EVF Adjustments | Brightness, Contrast, Color, and Backlight (Normal or Bright) |
Display Adjustments | Brightness, Contrast, Color, Sharpness, and Backlight (Normal or Bright) |
HD/SD SDI | Yes; (with embedded audio); HD 8-bit 4:2:2 (YPbPr) 1920x1080: 59.94i/50i/23.98/24.00, 1280x720: 59.94p/50p/23.98/24.00 SD 8-bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i BNC Connector, output only SD-SDI: NTSC 480i/PAL 576i: Compliant with SMTPE 259M Embedded Audio: Compliant with SMTPE 272M Time Code Standard: (VITC/LTC) SMTPE 12M HD-SDI: (Compliant with SMTPE 292M) 1080i/720p: Compliant with SMTPE 292M Embedded Audio: Compliant with SMTPE 299M Time Code Standard: (VITC/LTC) SMTPE 12M |
3G SDI | Available; 2x BNC Output Modes: RAW (10-bit); RGB 4:4:4 (10-bit/12-bit); YCC 4:2:2 (10-bit) Frame Rates: 23.98p/24.00p/25.00p/29.97p/59.94p/50p |
Video Monitor Out | Available; 2x BNC Resolution: 2048x1080 / 1920x1080 Frame Rates: 23.98p/24.00p/25.00p/29.97p/30p/59.94p/50p/60p Color Space: YPbPr: 10-bit |
Time code In/Out | Yes; BNC Connector (Input and Output) |
Genlock | Yes; BNC Connector (Input Only) Adjustment range: -1023 to +1023 |
Synch Out | Yes, BNC Connector (1) HD tri-level signal (HD Sync) 1920x1080: 59.94i/50i/23.98/24.00, 1280x720: 59.94p/50p/23.98, 24.00; The HD standard analog component Y signal with the black muted is output. (2) HD-Y signals (HD-Y) 1920x1080: 60i, 59.94i/50i, 1280x720: 60p/59.94p/50p; Only the HD standard analog component Y signal is output. (3) Black burst signal 480: 59.94i, 576: 50i; The SD standard analog composite signal with the black muted is output. (4) Composite 480: 59.94i, 576: 50i; The SD standard analog composite signals are output. |
HDMI | Yes (Type A) HD 8-bit 4:2:2 (YPbPr) 1920x1080: 60i/59.94i/50i, 1280x720: 60p/59.94p/50p SD 8-bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i |
Audio Input Terminal | 2 Balanced 3-pin XLR on Monitor Unit (Mic Level, Mic Level with phantom power and Line Level) 3.5mm Microphone terminal |
Headphone Jack | Available; 3.5mm stereo mini-jack |
Remote Terminals | Available (Fully LANC Compatible) Remote control through WFT-E6A accessory is also possible |
Supply | DC 7.4 V (Battery Pack) / DC 8.4 V (DC In) |
Power Terminal | DC in on camera (no need for "Dummy Battery") |
Battery | BP-9 Series (Excluding BP-925) |
Compact Power Adapter | CA-940N |
Tripod Adapter | Canon TA-100 |
Tripod Adapter Base | Canon TB-1 |
Zoom Remote Controller | Canon ZR 2000 |
Wi-Fi Adapter | WFT-E6A |
Dimensions | Approx. 6.3 x 7.0 x 7.0 in (160 x 179 x 177 mm) C500 PL + Monitor Unit: Approx. 7.3 x 9.8 x 7.4 in (185 x 249 x187 mm) C500 PL + Handle Unit + Monitor Unit: Approx. 7.3 x 11.2 x 11.9 in (185 x 284 x 301 mm) |
Main Unit Weight | C500 PL Body: Approx. 4.3 lb. (1930 g) Monitor Unit: Approx. 1.4 lb. (645 g) Handle Unit: Approx. 6.3 oz. (180 g) |
Total Equipped Weight | C500 PL: Approx. 6.2 lb. (2815 g)* C500 PL: 6.6 lb. (2995 g)** * Weights include the monitor unit, BP-955, 2x CF cards. ** Weights include the monitor unit, handle unit, BP-955, 2x CF cards. |
Temperature and Humidity | Performance requirements: 0°C to 40°C, 85% (relative humidity) Operating requirements: -5°C to 45°C, 60% (relative humidity) |
Language Support | English, Japanese, Chinese, German, Spanish, French, Italian, Polish, Russian |
Time and Date | Automatic Calendar range January 1st, 2010 through December 31, 2031 selectable in American, Japanese and European Date formats. |
World Clock | World Clock support - UTC time setting: Setting range from +14:00 to - 12:00 |
