EOS C200 / EOS C200B: Recording

CINEMA EOS SYSTEM

RECORDING

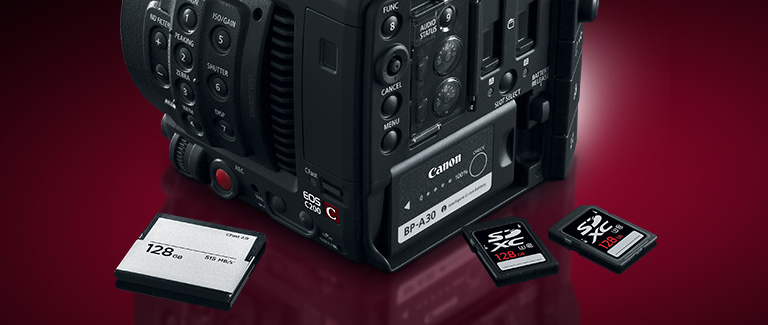

Multi-Format Internal Recording Options

Record internal 4K RAW to a CFast™ 2.0 card (with VPG130 support) in our new Cinema RAW Light format or 4K UHD and Full HD to SD cards in MP4 format.

Internal 4K RAW Recording with New Cinema RAW Light

The EOS C200 and EOS C200B Digital Cinema Cameras feature Canon's newly developed Cinema RAW Light, a 4K RAW recording file format offering a smaller file size compared to our standard RAW*1 files, while maintaining the same high resolution, high color reproducibility, and wide dynamic range data to provide dramatically greater freedom in grading and compositing.

Cinema RAW Light

Cinema RAW Light

Only CFast 2.0™ with VPG130 is Supported

CFast 2.0 Cards with a VPG130 rating must be used when recording with the Cinema RAW Light format. Designed for high-end video recording, the VPG130 specification enables a sustained capture of video streams up to 130 MB/s.

The following is a list of verified CFast cards.

Cinema RAW Light

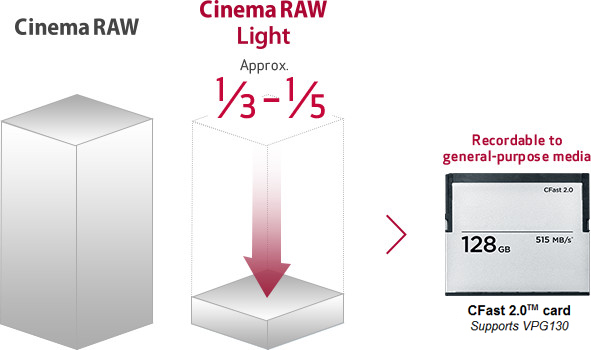

Cinema RAW Light files are about 1/3 or 1/5 the size to our standard RAW files. The smaller file size and reduced bit rate speeds up data transfer and allows internal recording to CFast™ cards.

Cinema RAW Light

The reduced file size also helps users extend storage capacity and transfer files on a network more easily. The high bit depth of Cinema RAW Light (10bit/12bit*2) maximizes retention of color and dynamic range information, which is especially critical in HDR production.

Cinema RAW Light files can be transcoded to other commonly used file formats, such as DPX or ProRes for later editing and online delivery using Canon's CRD software.

Resolution Color Sampling Bitrate System frequency/
frame rate
Audio Recording
media
4096x2160 10 bit 1G bps 59.94P/
50.00P
LPCM 16 bit
48kHz 4ch
CFast™ 2.0
12 bit 1G bps 29.97P/
25.00P/
24.00P/
23.98P
2048x1080
(Proxy)
YCbCr 4:2:0
8 bit
35Mbps
LongGOP
59.94P/
50.00P/
29.97P/
25.00P/
24.00P/
23.98P
LPCM 16 bit
48kHz 4ch

AAC 16 bit
48kHz 2ch
SD

*1 Standard RAW: EOS C500/EOS C300 Mark II/EOS C700 camera RAW.
*2 12bit for 4K/30p and under, 10bit for 4K/60p and 50p. Each bit efficiency is optimized in consideration of visual properties.

Simultaneous Recording

4K video can be recorded to a CFast™ 2.0 card while recording 2K proxy video to an SD card. The smaller size of the 2K proxy file allows for easier editing.

Simultaneous Recording
Simultaneous Recording

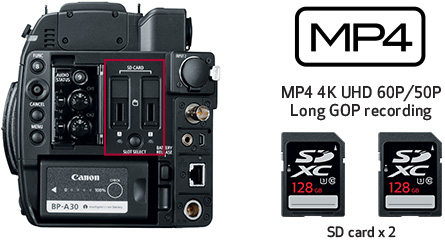

Internal 4K UHD and Full HD Recording in MP4

The EOS C200 and EOS C200B Digital Cinema Cameras offer 4K UHD and Full HD recording in MP4 format, up to 60fps. The compact size of the MP4 codec allows the EOS C200 and EOS C200B to capture images directly to low cost SD cards.

Internal 4K UHD and 2K Recording in MP4
Resolution Color Sampling Bitrate System frequency/
frame rate
Audio Recording
media
3840x2160 YCbCr 4:2:0
8 bit
150Mbps
LongGOP
59.94P/
50.00P/
29.97P/
25.00P/
24.00P/
23.98P
LPCM 16 bit
48kHz 4ch
SD
1920x1080 YCbCr 4:2:0
8 bit
35Mbps
LongGOP
59.94P/
50.00P/
29.97P/
25.00P/
24.00P/
23.98P
AAC 16 bit
48kHz 2ch
SD

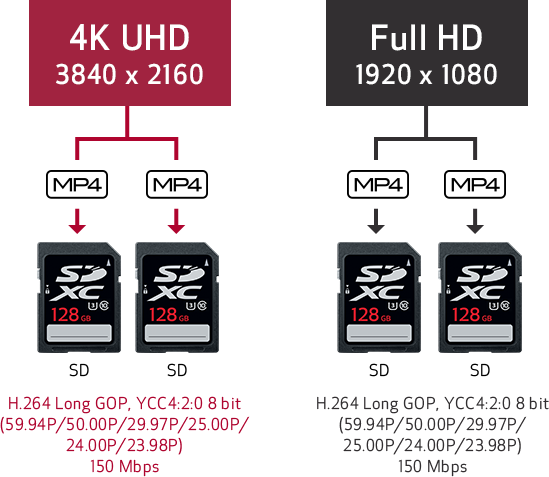

Double Slot Recording

Mirror recording of 4K UHD/Full HD MP4 image files to the camera’s two SD slots is possible, saving time and effort of having to make copies of the data after recording.

Double Slot Recording
Double Slot Recording

Full HD 120P/100P Slow Motion Recording Support

The EOS C200 and EOS C200B Digital Cinema Cameras support high-speed recording in Full HD at 120p/100p fps to enable additional creative freedom for slow motion replays and other special effects. It’s capable of a maximum 120fps, realizing even greater emotion in visual expression.

Slow Motion Recording

Image is simulated
Recording mode/
Playback frame rate
59.94P 29.97P 23.98P 24.00P 50.00P 25.00P
Recording frame rate (speed) 120P
(x0.5)
120P
(x0.25)
120P
(x0.2)
120P
(x0.2)
100P
(x0.5)
100P
(x0.25)
