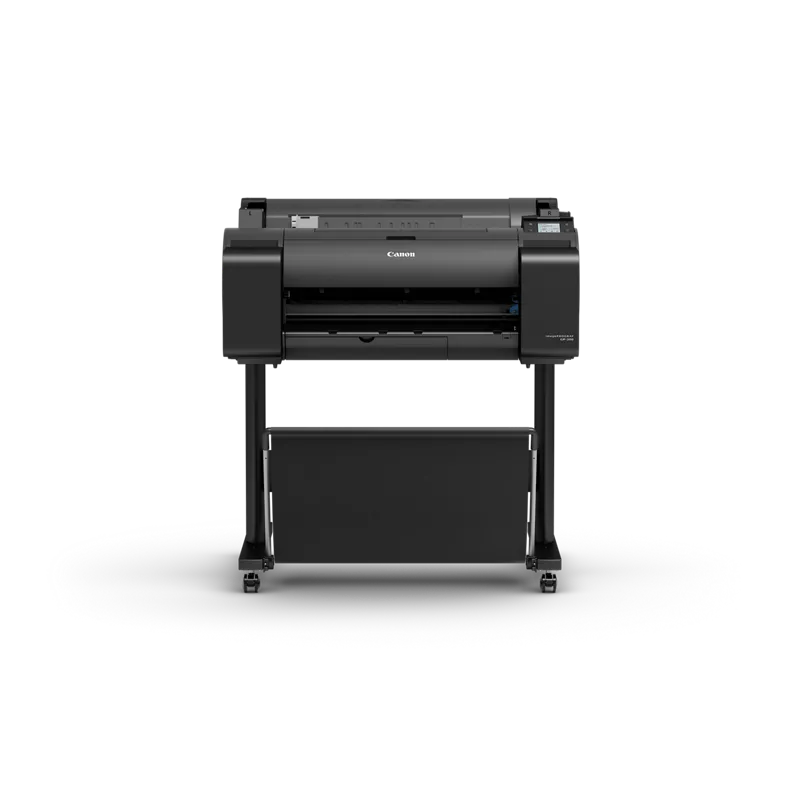

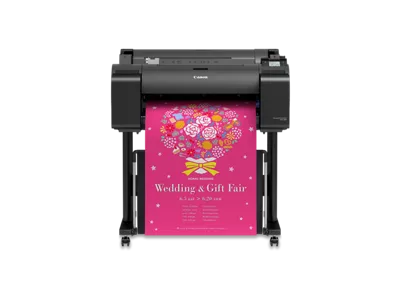

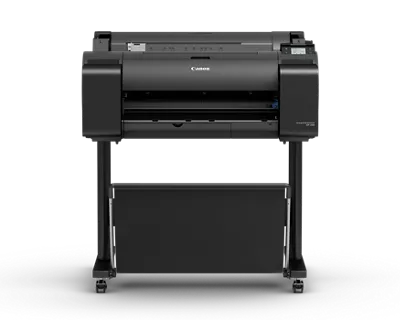

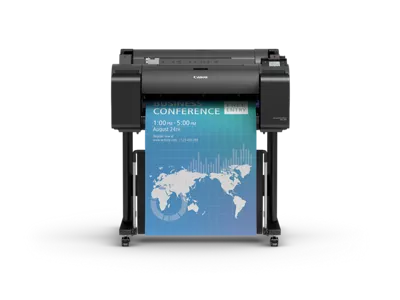

imagePROGRAF GP-200

SKU
GP-200
As low as $0.00
Out Of Stock
  • 24" Large Format printer
  • 5-Color pigment based ink plus Fluorescent Pink ink
  • World's first PANTONE calibrated printers for PANTONE PASTELS & NEONS GUIDE coated
  • Built-in hard drive
  • Direct USB thumb drive printing
  • Secure printing
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Technical Specifications

Main Unit Specs

Printer Type
5-Color plus Fluorescent Pink Ink 24-inch Printer
Number of Nozzles
Total: 15,360
C, M, Y, BK, MBK, FP: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit), 2019
Macintosh OS X v10.10.5-v10.12x or later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
5 picoliter
Ink Capacity
130 ml or 300 ml per color
Ink Types
Pigment Ink Plus Fluorescent Pink Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow and Fluorescent Pink Ink
Buffer Ram
2 GB (Physical)
Media Width
Cut Sheet - 8”- 24”
Roll Feed - 8” - 24”
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed - 59 (18 meters)
Maximum Media Roll Diameter
5.9”
Borderless Printing Width
8”, 10", 12”, 14", 16” 17", 20”, 24”
B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx
Operation: 49 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels
Physical Dimensions
42” (H) x 39” (W) x 35” (D) (Basket Open)
Weight
approx. 110 lbs (roll holder included, no inks, no print heads)
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 71 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
  • Print Head (PF-07)
  • Maintenance Cartridge (MC-31)
  • Ink Tanks (PFI-120/PFI-320)
  • Cutter Blade (CT-08)
Software Included
Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)

imagePROGRAF GP-200 Compatible Products

Paper

imagePROGRAF GP-200 Compatible Products
Paper
Software

imagePROGRAF GP-200 Compatible Products
Paper

Product Disclaimer

* In major aqueous pigment large-format inkjet printer manufactures (excluding sublimation transfer systems). As of 09/27/2021, (Canon research)

  1. As of September 27, 2021, according to professional services performed by Pantone under License Agreement between Canon, Inc. and Pantone LLC.
  2. PANTONE PASTELS & NEONS GUIDE Coated color gamut coverage rate is 85% for GP-300/200 when using Premium Semi-Glossy Paper 2 with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [High] (600dpi).
  3. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
  4. Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
  5. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package. For a list of Canon recommended RIP packages, please consult with Canon Alliance and Industry Market list of RIP vendors.
  6. Your server must be compatible with a webDAV enabled cloud account, including but not limited to, Google, Carbonite or Rackspace, to take advantage of the cloud functionality. Storage capacity and any pricing thereof are based on the third-party cloud provider's current offering, at its sole discretion. Your cloud account is subject to the third-party cloud provider's terms and conditions.
