Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
Sensor | CMOS Sensor (single-panel) equivalent to Super 35mm |
Total Pixels | Approx. 9.84 megapixels (4206 x 2340) |
Number of Effective Pixels | Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution |
Filter | RGB primary color filter (Bayer array) |
Lens Mount | Canon EF mount |
Exposure Modes | (1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting (2) Push auto iris control, auto iris control (light metering system selection/AE shift possible) |
||||||||||||||
Shutter Setting | Speed, Angle, Clear Scan, Slow, or Off mode selected Either 1/3 or 1/4 steps selected as speed increment |
||||||||||||||
Iris Setting | (1) Manual setting in 1/2-step increments, 1/3-step increments or fine possible (2) Push auto IRIS control* (3) Auto IRIS control* * Lenses that support auto IRIS:
|
||||||||||||||
ISO Speed Setting | 1 step, 1/3 step settings [100* - 160 - 25600 - 102400*] *When the sensitivity is expanded |
||||||||||||||
Gain Setting | Normal [-6dB* - -2dB - 42dB - 54dB*] Fine: Setting in 0.5 dB step increments possible *When the sensitivity is expanded |
||||||||||||||
ND Filter | 5 density settings (2, 4, 6, 8*, 10* stops) *When expansion is selected Motorized drive |
Focus Control | Dual Pixel CMOS AF Supported Manual Focus, One-Shot AF, Continuous AF, AF-Boosted MF, Face Detection AF (only lenses that support AF functions can be used in any of these modes), Focus Guide |
Built-in Viewfinder | 0.46 (1.18 cm on the diagonal), color wide-screen organic EL display Approx. 1,770,000 dots (854 x RGB x 480), 100% field of view ratio |
White Balance | AWB, Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC), Daylight, Tungsten, Set A, Set B) |
Frame Rate | (1) 59.94 Hz mode (59.94P/29.97P/23.98P) (2) 50.00 Hz mode (50.00P/25.00P) (3) 24.00 Hz mode (24.00P) |
Dynamic Range | Canon Log 3: 1600% (ISO 800 or above) Canon Log/Wide DR: 800% (ISO 400 or above) |
RAW | Video: Codec: Cinema RAW Light Resolution: 4096 x 2160 Bit Depth: 10 bit (59.94P/50.00P), 12 bit (29.97P/23.98P/25.00P/24.00P) Bit Rate: 1 Gbps Audio: Linear PCM: 16-bit / 48 kHz / 4 channels |
MP4 | Video: Codec: MPEG-4 AVC/H.264 Resolution: 3840x2160 / 1920x1080 Bit Rate: 150 Mbps (3840x2160), 35 Mbps (1920x1080) Color Sampling: YCC420 8 bit Audio: MPEG-4 AAC-LC (16-bit / 48 kHz / 2 channels) Linear PCM (16-bit / 48 kHz / 4 channels) |
MP4 (Proxy) | Video: Resolution: 2048 x 1080 Bit Rate: 35 Mbps Color Sampling: YCC420 8 bit Audio: MPEG-4 AAC-LC (16-bit / 48 kHz / 2 channels) Linear PCM (16-bit / 48 kHz / 4 channels) |
Recording Media | (1) CFast card (1 slot): RAW movies Only CFast 2.0™ with VPG-130 is supported. (2) SD card (2 slots): Recording of MP4 movies, photos (JPEG), custom pictures, menus and other data possible |
Time Code | Drop frame* or non-drop frame Rec run, free run, regeneration *In 59.94P/29.97P mode only |
Rec Mode (MP4 Recording) | Slow motion recording, pre-recording, frame recording, interval recording |
Other Recording Functions (MP4 Recording) | Relay recording, double slot recording |
Others | Custom picture setting, black balance adjustments, color bars, peaking display, zebra display, My Menu setting, fan, waveform monitor display, assignable buttons (1-17), key lock, marker display, enlarged display, custom display, peripheral illumination correction, GPS support (GP-E2), monaural microphone, and other functions |
Playback | Playback operations: Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review Clip Display 3x4 (clip) index screen (RAW/MP4/Photo) |
Terminals | Input only: REMOTE terminal, MIC jack, INPUT terminals (2 sets) Output only: SDI terminal, HDMI OUT terminal, headphones jack, USB terminal, VIDEO terminal Input/Output Control: Ethernet terminal |
Power Supply | 14.4 V DC (battery pack), 16.7 V DC (DC-IN) |
Image Processing Platform | Dual DIGIC DV 6 |
Related Accessories | Battery Pack (BP-A30/BP-A60) Battery Charger (CG-A10/ CG-A20) LCD Monitor (LM-V1) LCD Attachment Unit (LA-V1) Clamp Base (CL-V2) Camera Grip (GR-V1) Handle Unit (HDU-2) OLED Electronic View Finder (EVF-V70) Shoulder Support Unit (SU-15) 8-pin Remote Cable (RR-10/RR-100) Rod Clamp (RD-1) AC Adapter (CA-A10) Compact Power Adapter (CA-CP200B) Unit Cable (UN-5/UN-10) Remote Controller (RC-V100) GPS Receiver (GP-E2) Shoulder Strap (SS-1200) Tripod Adapter (TA-100) Tripod Base (TB-1) EF lens groups, EF cinema lens groups Accessories designed for the EF lens group and EF cinema lens group |
Dimensions (W x H x D) | Approx. 5.7 x 6.0 x 7.0 in. (144 x 153 x 179mm) Approx. 7.0 x 6.0 x 8.0 in. (178 x 153 x 204mm) [With camera grip attached] Approx. 13.2 x 10.8 x 10.8 in. (335 x 275 x 275mm) [With camera grip + LCD Monitor LM-V1 + LCD Attachment Unit LA-V1 + Handle Unit HDU-2 + mic holder |
Weight | Approx. 3.2 lb. (1430g) |

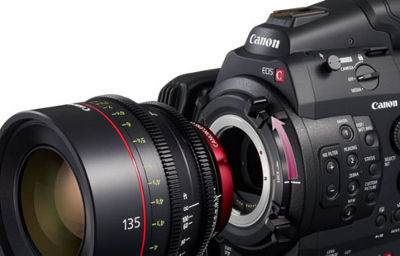

PL Mount Conversion Service
Thank you for using Canon products. Canon has started to offer lens mount replacement service for Cinema EOS camera bodies. Interested parties can call our support centers to make arrangements for this service.
Overview
For the models listed below an optional mount conversion to PL is available at Canon Factory Service Centers. If you would like to reverse to the original mount, please include the returned parts with the camera to our service facility.
Associated Models:
EOS C200/C200B
EOS C300 Mark II
EOS C700
Pricing
Service Type | Price |
---|---|
EOS C300 Mark II | $1,820 |
EOS C700 | $1,820 |
EOS C200/ EOS C200B | $1,500 |
*Includes Mount Kit and Shim Kit as well as labor
*Does not include taxes or shipping fees
*Conversion back to original mount is available
*All pricing is subject to change
Downloads
Guide to Using an EOS C300 Mark II Camera with PL mount
Upgrade information leaflet: EOS C200 / EOS C200B with PL mount
Thank you,
Customer Support Operations
Canon U.S.A., Inc.
Contact Information for Inquiries
Canon Customer Support Center
Phone: 1-855-CINE-EOS (toll free), 1-855-246-3367
TDD: 1-866-251-3752
Email: CinemaEOS@cits.canon.com
For additional support options: pro.usa.canon.com/support

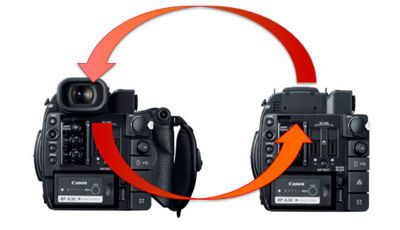

Viewfinder Modification
Thank you for using Canon products.
Canon is offering Viewfinder Modification for the EOS C200 and EOS C200B camcorders.
Interested parties can call our support centers to make arrangements for this service.
Overview
The option to add or remove the viewfinder is available for the EOS C200 and C200B models. This conversion includes replacing all covers so there are no exposed internal components. All removed parts will be returned to the customer and conversion back is also possible. If in the future the same camera body needs to be switched back and the original parts can be used we will perform that request and charge for the cost of labor only. Please contact us for more information.
