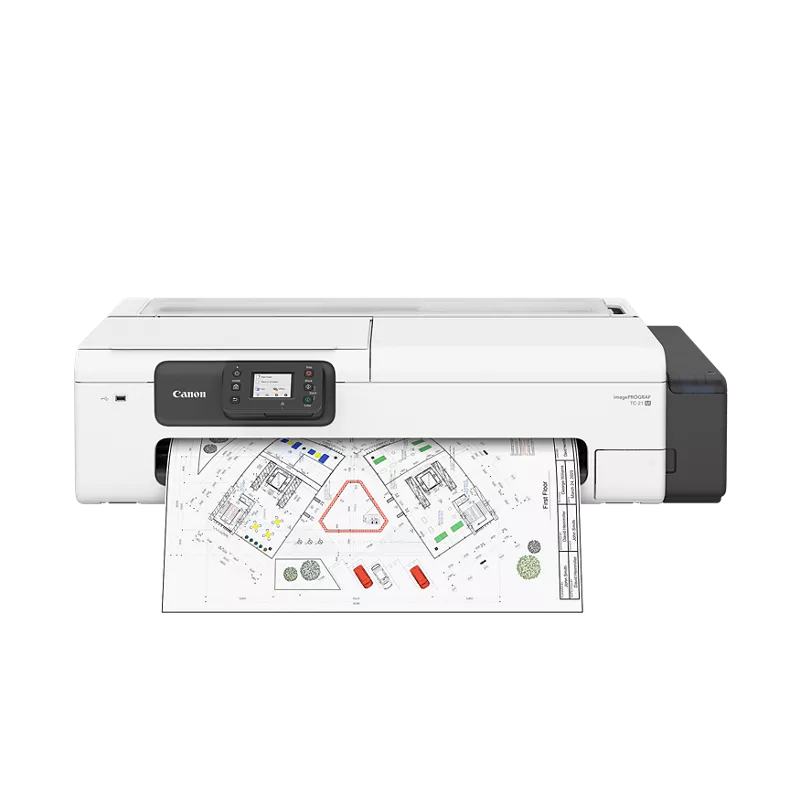

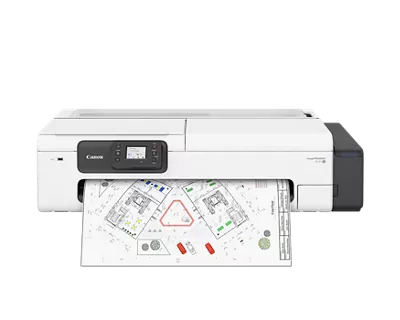

imagePROGRAF TC-21M Large Format Multi-function Printer

As low as $1,149.00
Buy now and pay later with
canon-klarna-paylater-icon
or
canon-paypal-paylater-icon
  • 24” Large Format Wireless Multi-function Printer
  • Built- In Flatbed Scanner
  • Copy & Enlarge Smaller Originals
  • Tiltable 2.7" Touchscreen LCD
  • Roll & Cut Sheet Media Handling
  • 4-Color Pigment Bottle Ink System
  • Scan to Cloud or Print From USB Flash Drive
  • ENERGY STAR® Certified
  • EPEAT Gold
  • 1 Year Warranty
Add an eCarePAK Extended Service Plan for added coverage. Learn More
I acknowledge that I have read and understood the

Please accept the Terms & Conditions for CarePAK before adding the item to cart.

Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

In the box

Return Policy

Overview

imagePROGRAF TC-21M – The Most Versatile 24” Large Format Printer

The imagePROGRAF TC-21M printer is designed to provide the versatility that users need to create high-quality posters, banners, CAD drawings, labels, and more. Ideal for education, home offices, grocery stores, healthcare, architectural, construction environments, and more, this all-around and versatile large format printer can print on compatible roll media up to 24” wide or print labels as well as letter/A4 to A1 size prints from the Automatic Sheet Feeder. The TC-21M simplifies the process of enlarging smaller originals with its flatbed scanner feature, allowing direct enlargements in just a few steps. It gives the ability to quickly make prints from a USB drive via the USB drive port. With the inclusion of 280 ml of ink—four 70 ml per ink bottles—the TC-21M sets itself apart by offering the largest ink capacity in its class, providing users the ability to print more without frequent refills.

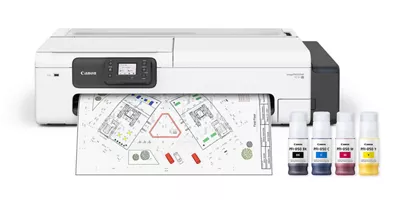

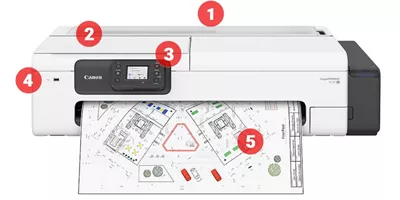

imagePROGRAF TC-21M - Front View

  1. Roll & Cut-Sheet Feeder
  2. Copy, Scan & Enlarge
  3. Tiltable 2.7” Touchscreen LCD
  4. USB Flash Drive Port
  5. Prints Up To 24” Wide

imagePROGRAF TC-21M - Front View with Numbers

Features

24” Large Format Multi-function Printer

Enlarge or repeat copy directly from a letter-sized flatbed scanner.

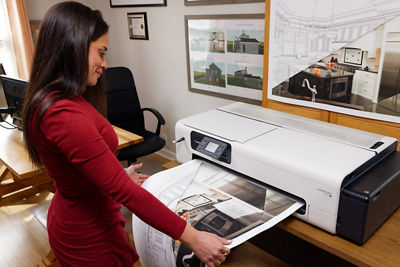

Person Using the imagePROGRAF TC-21M

USB Flash Drive Port

Conveniently print your files directly from a USB drive with the available USB flash drive port.

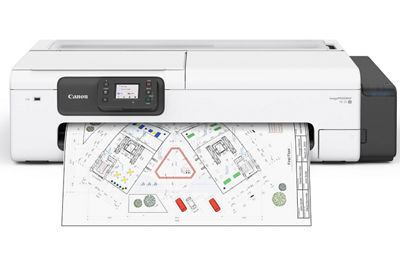

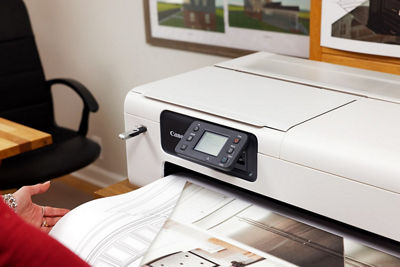

imagePROGRAF TC-21M Printing

Cloud Printing & Scanning

Easily print from or scan to the cloud directly from the printer.

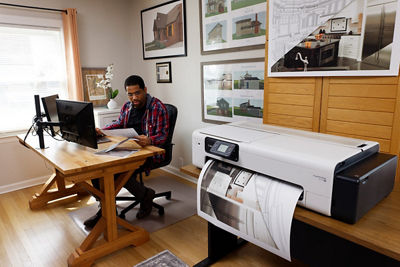

Person in a Home Office Printing with the imagePROGRAF TC-21M

Tiltable 2.7” Touchscreen LCD

Get the job done with an intuitive and easy-to-use tiltable 2.7” touchscreen LCD.

imagePROGRAF TC-21M Printing
Person Using a Marker on a Poster

STEP 1 - Create

Create letter-size originals such as flyers, drawings, diagrams, or handwritten markups.

imagePROGRAF TC-21M Scanning Poster

STEP 2 - Scan

Scan your original on the printer flatbed.

imagePROGRAF TC-21M Printing Scanned Poster

STEP 3 - Print

Super-size it up to 24” poster size.

Media Handling

From roll-fed to cut-sheet paper, you get the versatility to print 24”-wide output as letter, 11” x 17”, and more.

Media Handling

From roll-fed to cut-sheet paper, you get the versatility to print 24”-wide output as letter, 11” x 17”, and more.

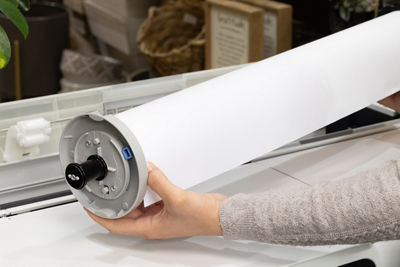

Person Replacing Paper Roll for the imagePROGRAF TC-21M

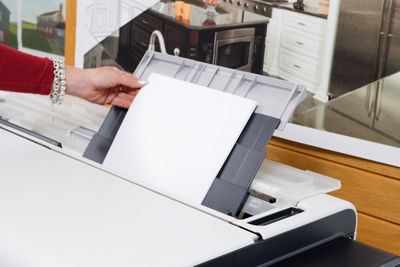

Person Loading Up 11" x 17" Paper On the imagePROGRAF TC-21M

Automatic Sheet Feeder

Automatically feed up to 100 sheets of letter size papers or up to 50 sheets of 11” x 17” papers for greater print flexibility.

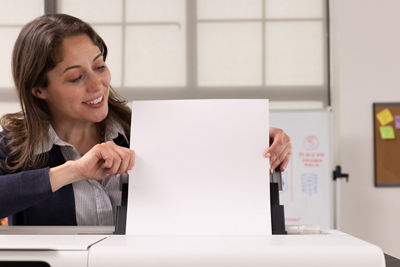

Person Using the Automatic Paper Feeder on the imagePROGRAF TC-21M

Easy To Fill

Ink bottles are keyed so they only fit and fill the intended color ink tank. The design helps to create a spill-free process that makes refilling a breeze.

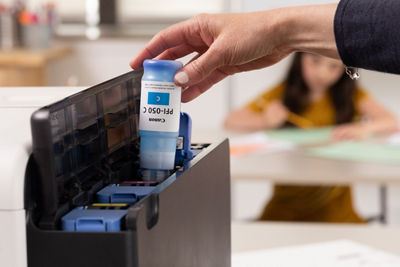

Person Filling Ink Tank of the imagePROGRAF TC-21M

Print More

The imagePROGRAF TC-21M ships with 280 ml of ink - 70 ml per ink bottle - the most in its class!

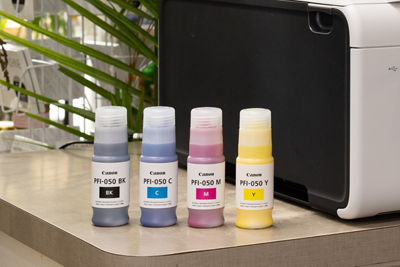

imagePROGRAF TC-21M - 3 Quarter Angle with Ink Bottles
Person Putting up Printed Poster

Restaurant

Copy/scan menus and special signs into large poster size for window display or as menu boards.

Teacher Showing Kids a Printed Poster

Education

Create teaching materials, worksheets, drawings, and more, and enlarge them into posters.

Store Owner Putting a Printed Poster

Retail

Enlarge smaller original printed or hand-written flyers to quickly promote clearance sales and new arrival items to help maximize store revenue.

Get Creative

Create and print professional posters, banners, and signage with PosterArtist online version.

PosterArtist Logo Surronded by Posters

Technical Specifications

Print

Print Head
PF-08
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy*
±0.1% or Less
Number of Nozzles
Black: 1,280 Nozzles
C/M/Y: 1,024 Nozzles Per Color
Ink Type Pigment
Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Bottle
Shipped with Printer: C, M, Y, BK, (70 ml per bottle)
Replacement: PFI-050 (70 ml)
Ink Supply Method
Tubing System
Printer RAM
1 GB
Media Feed
Roll Feed: One Roll, Top-Loading, Front Output
Cut Sheet: Automatic Sheet Feeder, Top-Loading, Front Output
Media Width
Roll Feed: 12” - 24”
Cut Sheet: 8.3” - 12”
Printable Margins
Roll Feed: All Sides: .2” (5 mm); Some Photo
Modes: Top/Bottom: 30 mm;
Cut Sheet: All Sides: .2” (5 mm)
Media Cutter
Rotary Cutter
Media Thickness
0.08 mm – 0.28 mm
Media Core Size
Internal Diameter of Roll Core: 2”
Maximum Roll Outer Diameter
4.3” (110 mm)
Printing Software Utilities
imagePROGRAF Printer Driver for Windows3/Mac4, Apple AirPrint5, Mopria Print Service, Direct Print Plus, Canon PRINT app6, Cloud Integra- tion Service, Free Layout Plus, PosterArtist Online Version, Media Config- uration Tool, Quick Utility Toolbox, Wi-Fi® Connection Assistant, and Printer Update Utility
Operating System
32-bit:3,4 Windows® 7/8.1/10
64-bit:3,4 Windows 7/8.1/10/11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac:3,4 mac0S v10.14.6 - macOS v12.x
Mobile Operating Systems
iOS®, Android™, Chromebook Compatible7,8
Print Language
SGRaster

Scan

Scanner Type
Flatbed
Scanning Method
Contact Image Sensor (CIS)
Scanning Resolution
1200 x 2400 dpi (Optical)9
Maximum Color
Grayscale: 16-bit / 8-bit
Scanning Bit Depth
Color: 16-bit / 8-bit Per Color
Max. Document Size
Flatbed: 8.5” x 11.7” (A4 / Letter)
Scanner Software Utilities
Scanner Driver/Scan Utility, Scan Utility Lite, Canon PRINT app, Cloud Integration Service, Printer Update Utility

Product/Ink Information

Model No. imagePROGRAF TC-21M
24” Large Format Multi-function Printer
Compatible Inks PFI-050 BK Black Ink Bottle
PFI-050 C Cyan Ink Bottle
PFI-050 M Magenta Ink Bottle
PFI-050 Y Yellow Ink Bottle

Connectivity & Software/Apps

Interface
Standard (Built-in): Hi-Speed USB, Wi-Fi® (Wireless LAN, 2.4/5 GHz, IEEE 802.11 b/g/n/a/ac)1, Wired LAN (100BASE-TX)/(10BASE-T)1
Display
2.7” Touchscreen LCD Display
Acoustic Noise
Operation: 41.5 dB (A)
Standby: 35 dB (A) or Less
Acoustic Power: 6 Bels
Power Supply
AC 100 – 240V (50 - 60 Hz)
Power Consumption
Maximum: 28 W or Less
Standby: 1.7 W or Less
Power Off: 0.07 W or Less (Executive Order Compliant)
Certifications
Electrical Safety Regulations C TUVus (U.S.A.)
Electromagnetic Interface Regulations FCC Part 15B (U.S.A.)
Radio Regulations FCC Part 15C (U.S.A.)
ENERGY STAR® Certified10
EPEAT Gold
Operational Environment
Temperature: 59° – 86° F (15° – 30° C)
Relative Humidity: 10 – 80% (No Dew Condensation)
Printer Dimensions (H x W x D) and Weight
Printer: 16” x 44” x 29”, Approx. 73 lbs.
Options
  • Desktop Basket (BU-06)

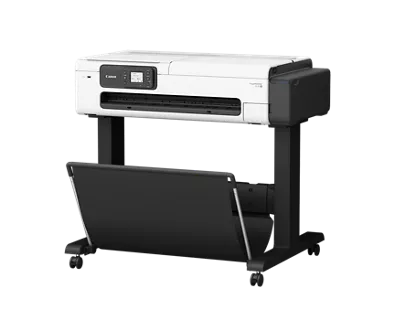

  • Stand (SD-24)
  • PosterArtist (PC Only)
  • User-Replaceable Items:
    • Ink Bottle: PFI-050 (70 ml)
    • Print Head: PF-08
    • Maintenance Cartridge: MC-32

Brochures

File Name

imagePROGRAF TC-21 and TC-21M Flyer

Date

04.16.25

File Size

2.6 MB

File Name

Large Format Full Line Brochure

Date

04.30.25

File Size

11.5 MB

imagePROGRAF TC-21M Large Format Multi-function Printer Compatible Products

Ink

imagePROGRAF TC-21M Large Format Multi-function Printer Compatible Products
Ink
Large Format Printer Accessories

Paper

Other Accessories

imagePROGRAF TC-21M Large Format Multi-function Printer Compatible Products
Ink

Product Disclaimer

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL VIEWSCREEN AND OUTPUT IMAGES ARE SIMULATED.

Recycled paper and Chlorine-free paper can be used Office paper with 100% post-consumer recycled content that meets the paper runnability performance requirements of EN 12281.

  1. Wireless printing requires a working network with wireless 802.11b/g/n/a/ac capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
  2. PosterArtist Online Version requires a personal computer with Internet access and a compatible Canon printer. The service is not available on some operating systems or browsers. See usa.canon.com/Poster-Artist for details.
  3. Operation can only be guaranteed on a PC with pre-installed Windows 11, Windows 10, Windows 8.1, Windows 7 SP1.
  4. Internet Connection required during software installation. For full compatibility macOS v10.12.1 or later is recommended.
  5. AirPrint functionality requires a compatible iPad, iPhone, or iPod Touch device running iOS 7.0 or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.
  6. Requires an Internet connection and the Canon PRINT app, available for free on the App Store and at Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS 12.0 or later, and Android™ mobile devices running Android 4.4 or later. Your device must be connected to the same working network with wireless 802.11 b/g/n capability as your printer. Requires a compatible social media account and is subject to that social media account’s Terms of Service. Certain exceptions may apply.
  7. Some functions may not be available with these Operating Systems. Please refer to manual or Canon website for details.
  8. Functions and features may vary by printer model. Scanning requires Chrome OS 89 or later.
  9. Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
  10. As an ENERGY STAR® Partner, Canon U.S.A., Inc. has certified this printer as meeting the ENERGY STAR energy efficiency criteria through an EPA-recognized certification body.
* Line accuracy repeatability is guaranteed after a user performs necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper and Coated Paper) only.
