Machined Micro Optics
&
Dispersion Elements
Advanced Fabrication Solutions for Astronomical Instruments
Backed by our long-standing history of delivering highly reliable optical instruments and our deep expertise in ultra-precision tooling and mold-cutting technologies, Canon’s micro-machining capabilities have evolved to support the development of next-generation astronomical instruments. We enable micro-machining at the micron scale—achieving exceptionally sharp edges and complex free-form cuts—while maintaining rigorous nano-scale surface flatness and roughness specifications. Partner with Canon to realize highly efficient and ultra-precise components for your observatory’s spectroscopes and imaging systems.
Features
- Custom-fabrication business model
- Proprietary micro machining technology
- Sharp edge cut results
- Nano-scale surface roughness & wavefront error
- Monolithic multi mirror array
Reference Information
| Grating | ||
| Overview | Coating: Au, Ag, AI, etc. | |
 |
 |
|
| Work Configuration |  |
|
| Outline (Size) |
|
|
| Base Shape | Plane and Convex Spherical Surface (R100 mm or more and opening angle 20° or less) |
|

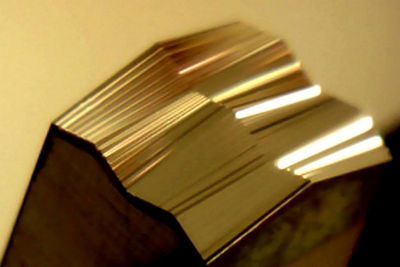

| Slicer | ||
| Overview | Coating: Au, Ag, AI, etc. | |
2x3mm |
36μm |
|
| Work Configuration |  |
|
| Outline (Size) | 100 x 100 mm or Less | |
| Base Shape | Plane and Convex Spherical Surface (R100 mm or more and opening angle 20° or less) |
|
